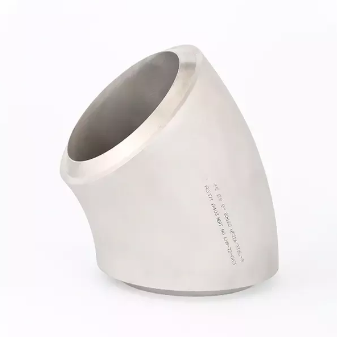

# How to calculate radius of stainless steel elbow?

I have my own unique views on the stainless steel elbow length calculation formula. I hope you can learn more from the following experience.

1. The elbow center calculation formula is  that 1.5 times the elbow center height = diameter *1.524, which is actually the diameter * multiple. Round the number after the decimal point of the result to an integer. For example, the diameter of 219 is 200, the center height is 200*1.524=304.8, and take 305. The diameter of 114 is 100, the height of the center is 100*1.524=152.4, take 152.

The algorithm applicable to DN100 and above elbow radius of curvature is convenient and fast to calculate.

2. Stamp height = center height + elbow radius, such as 1.5 times the diameter of 219 elbow stamp height =305+219/2=305+109.5=414.5

3. Outer arc length =(center height + radius)*3.14*2/360* degree, i.e. (stamp height)*3.14*2/360* degree, from which it can be calculated that the outer arc length of 90-degree elbow = stamp height *3.14/2.

4. Internal arc length =(center height - radius)*3.14*2/360* degrees.

5. The elbow length calculation formula is that elbow length = elbow center height *3.14/2* elbow outer diameter/pipe diameter +(pipe wall thickness *3)+ machining allowance, such as using 180*8 pipe cutting, push system 273 elbow, with the above formula can be calculated, blanking length =381*1.57*273/180+24=931.22mm+ machining allowance.

Long and Short Radius 180 Degree Elbows Dimensions
The long and short radius 180 degree steel pipe elbow for your information:

As a professional buttweld fittings manufacturer, Huanshang steel welcome international customers come to visit and order.

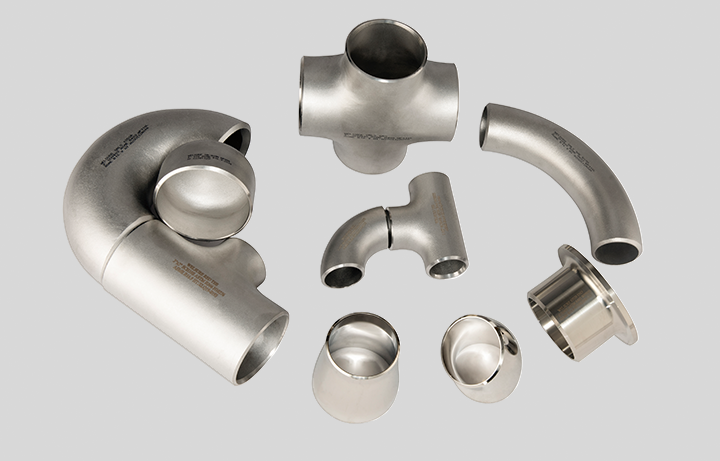

Samples of 180 Degree Elbow
Some example pictures of our 180 degree elbow:

Applications of 180 degree Steel Elbows
Fluid Transportation: 180-degree steel elbows are integral in pipelines for transporting fluids like water, oil, and gas. They allow for a complete change in direction without affecting flow or pressure.

Construction: These elbows are used in plumbing systems of buildings for efficient redirection of water and waste materials.

HVAC Systems: In HVAC systems, 180-degree steel elbows change the direction of ductwork for efficient air distribution.

Industrial Manufacturing: They are used in machinery for transporting materials, especially in systems requiring a change in flow direction.

Chemical Industry: These elbows are used in pipelines transporting corrosive substances, with steel providing corrosion resistance.

Power Plants: They are used for transporting steam and high-temperature fluids, withstanding high pressures and temperatures.

Food and Beverage Industry: These elbows are used for transporting edible oils and beverages, maintaining hygiene and preventing contamination.

Marine Applications: In marine vessels, these elbows are crucial in redirecting the flow of water and other fluids.
