Hydraulic Tubing

Product description

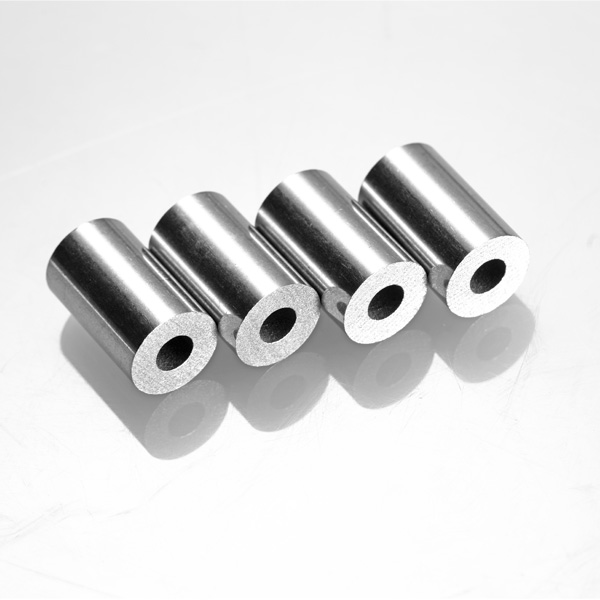

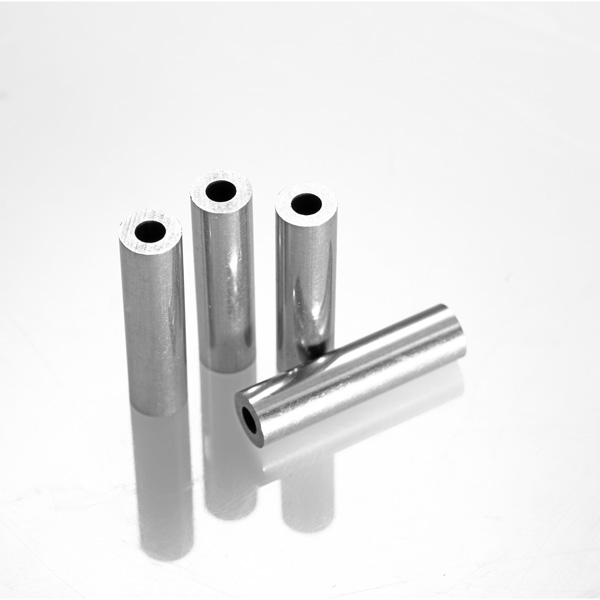

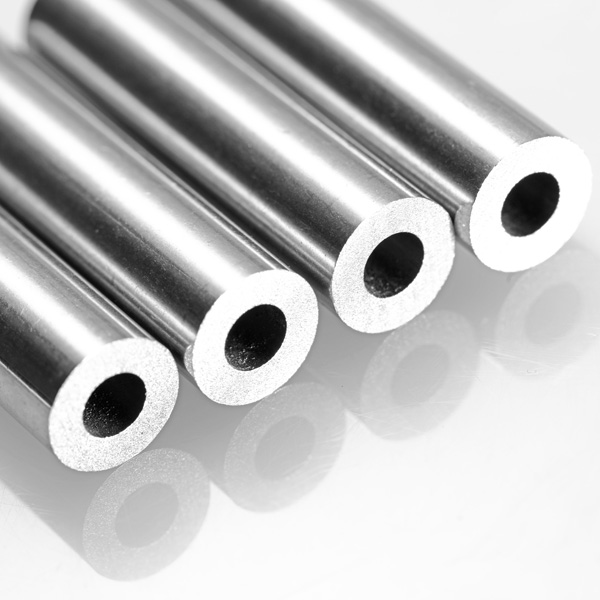

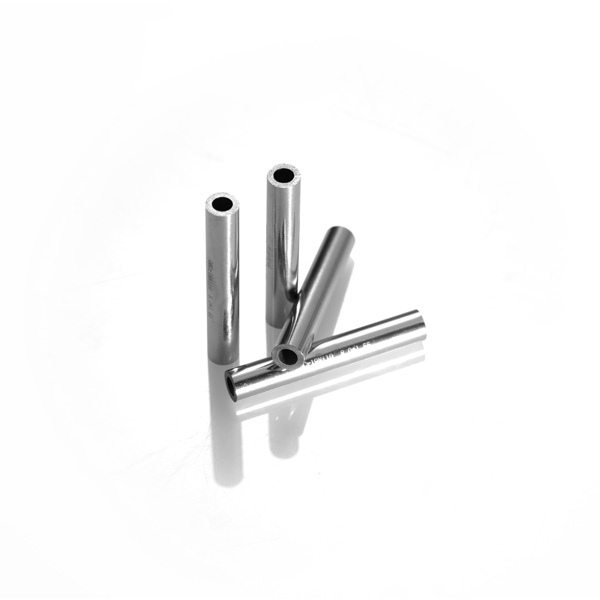

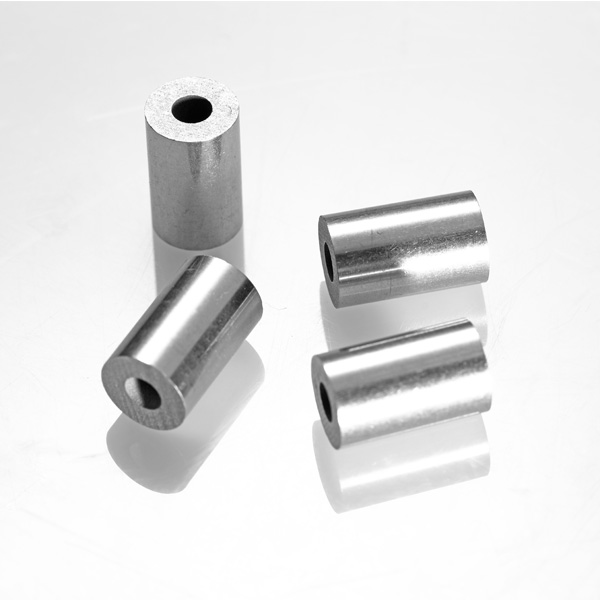

Hydraulic Tubing Description

Huashang Hydraulic tube in a comprehensive range of corrosion-resistant stainless steels and nickel alloys protecting outdoor diameters from (OD) 2.0 to 38 mm. All sizes are provided with clean surfaces and shut dimensional tolerances reducing the risk of leakages when connecting tubes with couplings.

HUASHANG hydraulic tube length is straight, but our tubes can additionally be delivered as coiled tubing, contributing to reduced installation costs. HUASHANG hydraulic tubes are characterized by using high cleanliness, and tubes with OD large than 5 mm are delivered with plugged ends for transport protection towards inside contamination.

Hydraulic tubes are applied to many industries, such as instruments and meters, petroleum, medicine, chemical industry, water purification, gas and pressure vessel. In order to ensure the quality of the instrumentation tube, we will be according to the standard to do an inspection, such as chemical analysis, tensile, hardness, flattening, flaring, corrosion, and hydrostatic.

Material of Hydraulic Tubing

Autenitic Stainless steel:
TP304, TP304L, TP304H, TP316/TP316L, TP316H, TP316Ti, TP321, TP321H, TP317, TP317L, TP347, TP347H, TP310S, TP310H, TP904L, 254Mo.

Duplex&Super Duplex steel:
S31803, S32205, S32750, S32760.

Nickel alloy steel:
N06600, N06601, N06625, N07718, N08800, N08825, N010276, N04400, N05500, N08020, N08028

Hydraulic Tubing Standard

EN10216-5TC1, ASTM A789, NACE MR0175/ISO 15156, ISO6207, ASTM B444 GRADE 1 & GRADE2, ASTM SB444 GRADE1&GRADE2, ASTM B668, ASTM A213, ASTM A269, EN10216-5

Hydraulic Tubing Sizes

OD Range: 2.0mm--38mm
Wall Range: 0.08mm--5.00mm
Length: Cut to length by client request

Typical size & tolerence

Production name

OD/mm

OD tolerance/mm

W. T tolerence%

OD=Outsize Diameter


Instrumentation tubes

<4.76

+0.08-- 0

+-10

<2.38

+0.05--0

+-10

W.T=Wall Thickness

6.0-30.0

+-0.08

+-10

32-38

+-0.15

+-10


Chemical Composition of Nickel Alloy, Duplex steel & Austenitic Steel

Grade C Si Mn P S Cr Ni Mo Ti N Cu Fe Al Co Zr Nb Tu Va
Max Max Max Max Max Max Max Max Max Max
Nickel Alloy
Inconel 600/No6600/2.4816 0.15 0.5 1 0.015 14-17 ≧72 0.5 6.0-10.0
Inconel 600/No6601/2.4851 0.1 0.5 1.5 0.015 21-25 58-63 1 1.0-1.7
Inconel 690/No6690 0.05 0.5 0.5 0.015 27-31 58 0.5 7.0-11.0
Inconel 625/No6625/2.4856 0.1 0.5 0.5 0.015 0.015 20-23 ≧58 8.0-10.0 ≦0.4 5 ≦0.4 3.15-4.15
Inconel 718/No7718/2.4668 0.08 0.35 0.35 0.015 0.015 17-21 50-55 2.8-3.3 0.65-1.15 0.006 0.3 Remainder 0.2-0.8 4.75-5.5
Incoloy 800/No8800/1.4876 0.1 1 1.5 0.015 19-23 30-35 0.15-0.6 0.75 ≧39.5 0.15-0.6
Incoloy 800H/No8810/1.4958 0.05-0.1 1 1.5 0.015 19-23 30-35 0.6-1.2 0.75 ≧39.5 0.15-0.6 1
Incoloy 825/No8825/2.4858 0.05 0.5 1 0.03 19.5-23.5 38-46 2.5-3.5 1.5-3 ≧22 0.2
C-276/No10276/2.4819 0.01 0.08 1 0.04 0.03 14.5-16.5 Balance 15.0-17.0 4.0-7.0 2.5 3-4.5 0.35
Monel 400/No4400/2.4360 0.3 0.5 2 0.024 ≧63 28-34 2.5
Monel K-500/No5500 0.18 0.5 1.5 0.01 63 0.35-0.85 27-33 2 2.3-3.15
Alloy 20/No8020/2.4660 0.07 1 2 0.045 0.035 19-21 32-38 2.0-3.0 3.0-4.0 Balance 8C-1
Alloy 28/No8028 0.03 1 2.5 0.03 0.03 26-28 30-34 3.0-4.0 0.6-1.4 Remainder
Duplex Steel
S31803/1.4462 0.03 1 2 0.03 0.02 21-23 4.5-6.5 2.5-3.5 0.08-0.2
S32205/1.4462 0.03 1 2 0.03 0.02 22-23 4.5-6.5 3.0-3.5 0.14-0.2
S32750/1.4410 0.03 0.8 1.2 0.035 0.02 24-26 6.0-8.0 3.0-3.5 0.24-0.32 0.5
S32760/1.4501 0.05 1 1 0.03 0.01 24-26 6.0-8.0 3.0-4.0 0.2-0.3 0.5-1.0
Austenitic
304/1.4301 0.08 1 2 0.045 0.03 18-20 8-10.5
304L/1.4307 0.035 1 2 0.045 0.03 18-20 8.0-12.0
304H/1.4948 0.04-0.1 1 2 0.045 0.03 18-20 8.0-11.0
316/1.4401 0.08 1 2 0.045 0.03 16-18 11.0-14.0 2.0-3.0
316L/1.4404 0.035 1 2 0.045 0.03 16-18 10.0-14.0 2.0-3.0
316H/1.4919 0.04-0.1 1 2 0.045 0.03 16-18 10.0-14.0 2.0-3.0 0.1
316Ti/1.4571 0.08 1 2 0.045 0.03 16-18 10.0-14.0 2.0-3.0 0.7>5x(C+N)
321/1.4541 0.08 1 2 0.045 0.03 17-19 9.0-12.0 0.7>5x(C+N)
321H/1.4878 0.04-0.1 1 2 0.045 0.03 17-19 9.0-12.0 H
317/1.4449 0.08 1 2 0.045 0.03 18-20 11.0-14.0 3.0-4.0
317L/1.4438 0.035 1 2 0.045 0.03 18-20 11.0-15.0 3.0-4.0
347/1.4550 0.08 1 2 0.045 0.03 17-19 9.0-12.0
347H/1.4912 0.04-0.1 1 2 0.045 0.03 17-19 9.0-13.0
310S/1.4845 0.08 1 2 0.045 0.03 24-26 19.0-22.0 0.11
310H/1.4845 0.04-0.1 1 2 0.045 0.03 24-26 19.0-22.0
N08904(904L)/1.4539 0.02 1 2 0.045 0.03 19-23 23.0-28.0 4.0-5.0 0.1 1.0-2.0
S31254(254Mo)/1.4547 0.02 0.8 1 0.03 0.01 19.5-20.5 17.5-18.5 6.0-6.5 0.18-0.22 0.5-1.0

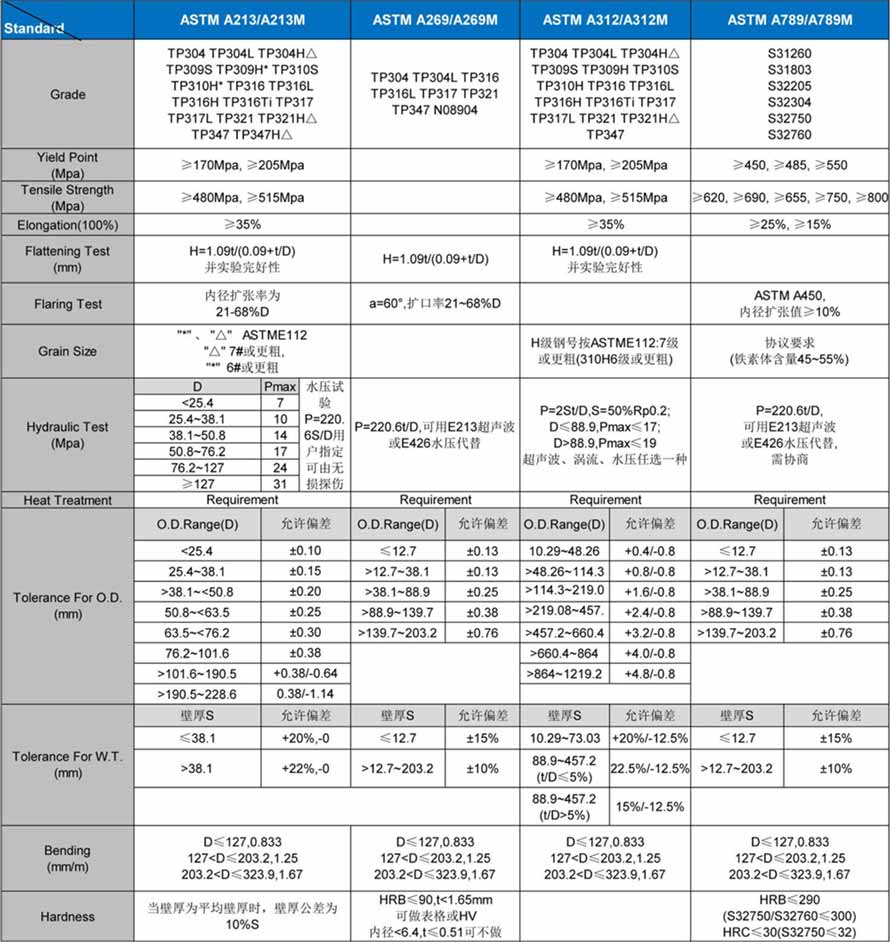

Hydraulic Tubing Specification/Technical Data


technical-data




Application Areas
