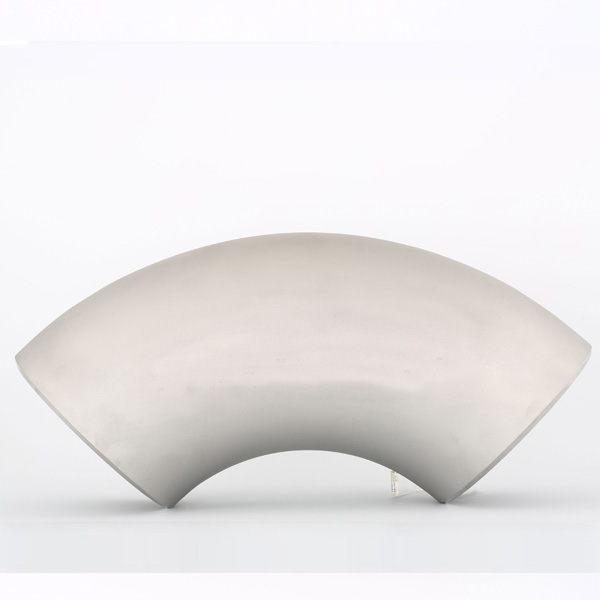

Steel tubing 90 degree elbow is one of the two quite demandable products that are accessible in range of metals, materials, and sizes. the 90 degree pipe elbow now not only suffices the needs of
industrial butt weld fittings for sale however they also perfrom as the reliable fittings that closing for a long time. Moreover,the 90 degree bends offer quarter bend.we also called long radius elbow and short radius elbow.
90° Elbow Features
Reliable
Resistance to oxidation
High Tensile Strength
Weldability
Excellent Corrosion Resistance
90 Degree Elbow Forming Type:
Mandrel-Forming (So it will not reduce the wall thickness), Extrusion moulding, Pressing,Colding working,Machining,Hot –Bending, Welded,Heat Treatment.
90 Degree Elbow Size:

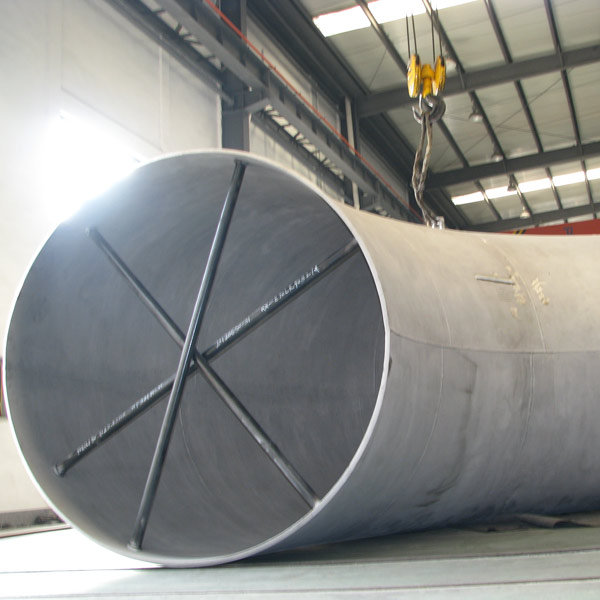

Seamless Fittings 1/2"-32", Welded Fittings 1/2"-120"
90 Degree Elbow Standard:
GB 12459, GB/T 13401, SH3408, SH3409, ASME/ANSI B16.9, JIS B 2311/2220, DIN2617/2616/2615, GOST 17375
90 Degree Elbow Wall Thickness:
SCH5S-SCH160
90 Degree Elbow Bending Radius:
R=1.0D 1.5D 2D 3D 5D 8D 10D…….
90 Degree Elbow Material
Stainless Steel:
OCr18Ni9, 0Cr18Ni9Ti, 1Cr18Ni9Ti, 0Cr18Ni12Mo2Ti, 00Cr19Ni10, 00Cr17Ni14Mo2,
ASTM A403-WP304, WP304L, WP304/304L, WP304H, WP316, WP316L, WP316/316L, WP321, WP321H, WP347, WP347H
Super Stainless Steel:
ASTM 904L, B366-N08904, A403-WP317, 317L, 254SMO(UNS S31254)
Duplex & Super Duplex Steel:
ASTM A815-S31803, S32205, S32750, S32760, 2205
Low Temp. Steel:
ASTM A420-WPL6, WPL3
Alloy Steel:
12CrMo, 15Cr5Mo, Cr5Mo, 12Cr1MoV, 16Mn, ASTM A234-WP11, WP22, WP91, WP5, WP9
Pipeline Steel:
L245, L290, L360, L415, L450, L485, ASTM A860 (MSS SP-75)- WPHY42, WPHY52, WPHY60, WPHY65, WPHY70
Carbon Steel:
ASTM A234-WPB, WPC
Nickel Alloy Steel:
B361 WP6061, B366 N08904, N010276, N04400, N06600, N08825, N10276
B625 N08904, B574 N04400, N06600, N010276, B649 N08904
B625 N08904, B574 N04400, N06600, N010276, B649 N08904
90 Degree Elbow Tests and Inspections
X Radiography Test
Mechanical Test
Chemical Composition Analysis
Permeation Test
Ultrasonic Test
Metallographic Structure Test
Intergranular Corrosion Test
Hardness Test
Flattening Test
PMI
Impact Test
Documentation offered
Raw Material Test Report
EN10204 3.1 Test Certificate
Heat Treatment Chart
Heat Treatment Report
Quality Assurance Plan
Inspection And Test Procedure Report
Welding Procedure Specification
Procedure Qualification Record
90 Degree Elbow Application
stainless steel 90 degree buttweld elbow uses in oil and gas pipeline
90 degree buttweld pipe elbow uses in chemical industry
alloy steel 90 degree elbow uses in plumbing
buttweld 90 degree elbow uses in heating
90 degree buttweld elbow uses in water supply systems
asme b16.9 90 degree elbow uses in power plant
90 degree elbow uses in paper industry
90 degree elbow uses in general purpose applications
90 degree long radius elbow uses in fabrication industry
90 degree elbow uses in petroleum
buttweld 90 degree long radius elbow uses in papermaking
buttweld 90 degree short radius elbow uses in shipbuilding
high quality 90 degree pipe elbow uses in petrochemical
alloy 20 90 degree elbow uses in natural gas industry
nickel alloy 90 degree elbow uses in ocean engineering
duplex steel 90 degree elbow uses in nuclear industry
ss 90 degree elbow uses in food and beverage
hastelloy 90 degree elbow uses in electrical powerplant
asme b16.9 90 degree elbow uses in pharmacy
We are stock, distribution, manufacturer, suppliers, stockholder, traders, wholesaler, importer and exporter for 90 degree elbow in stainless steel, duplex steel.
