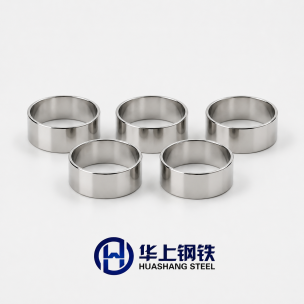

Precision Metal Rings for Catheter-Based Medical Devices

Huashang manufactures custom stainless steel crimp rings, support rings, lock rings and miniature assemblies for catheter-based and minimally invasive medical devices.

Each component is manufactured according to the customer’s approved drawing, material specification, dimensional tolerances and inspection requirements.

Our current manufacturing scope includes:

Distal Support Ring

Proximal Support Ring

Distal and Proximal Crimp Rings

Pusher Stop Crimp Ring

Rolling Drain Cable Crimp Ring

Huashang manufactures the metal component according to the approved drawing. Final assembly validation and functional performance requirements remain controlled by the medical-device manufacturer.

Lock Ring and Post Assemblies

Huashang can manufacture and assemble custom lock rings and post components according to customer drawings.

Available services may include:

· Precision ring manufacturing

· Post machining

· Component cleaning

· Dimensional inspection

· Controlled assembly

· Assembly identification

· Batch-level traceability

· Final inspection reporting

Dimensions

All crimp rings, support rings and lock ring components are custom manufactured according to customer-approved drawings.

Materials

Common material options include:

· 316/L stainless steel

· 304 /L stainless steel

· Other materials specified by the customer

Raw-material standards are selected according to the material form and approved specification.

Examples include:Round bar/Seamless &weld Tube and Pipe /Plate& Sheet

The customer drawing and purchase order remain the controlling requirements.

Manufacturing Capabilities

Depending on the component design, our manufacturing services include:

· Precision tube cutting

· CNC machining

· Micro-ring production

· Deburring and edge finishing

· Surface polishing

· Cleaning and degreasing

· Passivation when specified

· Component assembly

· Prototype production

· Small-batch and repeat production

Machining tolerances down to 0.005 mm may be achievable for selected dimensions, subject to part geometry, material condition and inspection method.

Quality Control

Each production batch can be controlled through:

· Drawing and revision review

· Raw-material certificate verification

· Heat-number and material-lot traceability

· Positive Material Identification

· First Article Inspection

· In-process dimensional inspection

· Burr and surface inspection

· Final dimensional inspection

· Equipment calibration verification

· Packaging and label inspection

· QA release review

Critical dimensions can be inspected 100% when required by the approved customer specification.

Material and Batch Traceability

Applicable components can be traced through the following chain:

Customer PO
→ Part Number
→ Drawing Revision
→ Production Batch
→ Raw-Material Lot
→ Mill Heat Number
→ Material Certificate
→ Inspection Report
→ Finished-Goods Lot
→ CoC and Packaging Label

Available documentation may include MTC, PMI report, dimensional inspection report, Certificate of Conformity and production batch record.

Prototype and Low-Volume Support

We support medical-device development projects requiring:

· Prototype components

· Design-verification quantities

· Small production batches

· Multiple drawing revisions

· First Article Inspection

· Controlled repeat production

· Quantity-based quotations

Customers can request pricing for different quantities, such as 2,000, 5,000, 10,000 or 20,000 pieces.

Request a Quote

Please send us:

· Part drawing

· Drawing revision

· Required material

· Order quantity

· Critical dimensions

· Surface and cleaning requirements

· Inspection requirements

· Required quality documents

Our engineering and quality teams will review the project and prepare a manufacturing and inspection proposal.
