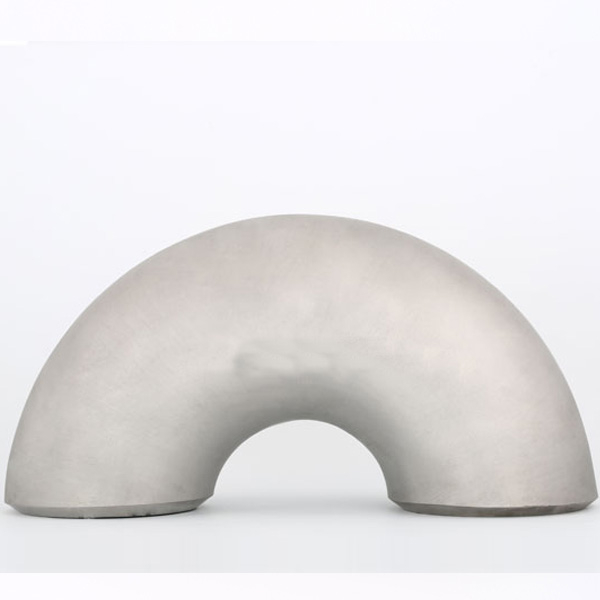

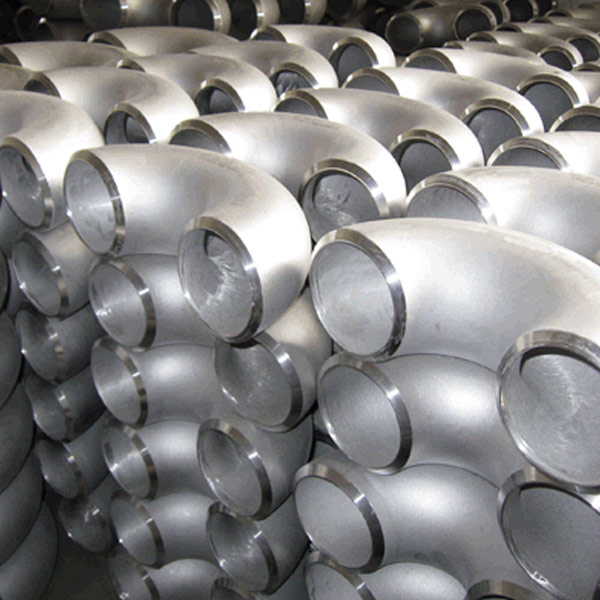

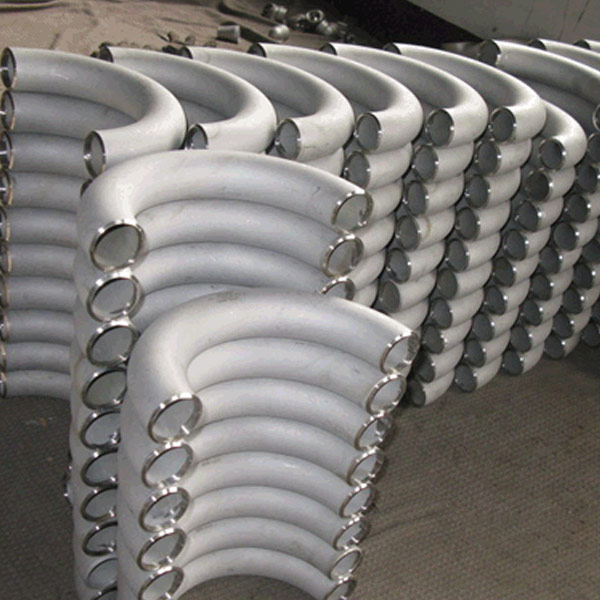

180 Degree Elbow

Product description

The connection form of stainless steel 180 degree elbow is butt welding elbow and steel pipe directly. According to its curvature radius, this 180 degree butt weld steel pipe fitting can be divided into long radius and short radius. Pressure grade is divided into about 17 types, which are the same as American pipe standard. The most commonly used are STD , SCH10, and SCH40. According to material, they are carbon steel, alloy steel and stainless steel.

Elbow(LR/SR  180°)

180 Degree Elbow Forming Type:

Mandrel-forming (so it will not reduce the wall thickness, extrusion moulding, pressing, colding working, machining, hot –bending, welded, heat treatment.

180 Degree Elbow Size/Dimensions:

seamless fittings 1/2"-32", welded fittings 1/2"-120"
45 Degree Elbow Wall Thickness: SCH5S, SCH10S, SCH10, SCH20, SCH30, SCH40S, STD, SCH40, SCH60, SCH80S, XS, SCH80, SCH120, SCH140, SCH160, XXS
45 Degree Elbow Bending Radius: R=1.0D, 1.5D, 2D, 3D, 5D, 8D, 10D....

180 Degree Elbow Standard:

GB 12459, GB/T 13401, SH3408, SH3409, ASME/ANSI B16.9, JIS B 2311/2220, DIN2617/2616/2615, GOST 1737

180 Degree Elbow Material

Stainless Steel:
OCr18Ni9, 0Cr18Ni9Ti, 1Cr18Ni9Ti, 0Cr18Ni12Mo2Ti, 00Cr19Ni10, 00Cr17Ni14Mo2,
ASTM A403-WP304, WP304L, WP304/304L, WP304H, WP316, WP316L, WP316/316L,
WP321, WP321H, WP347, WP347H

Super Stainless Steel:
ASTM 904L, B366-N08904, A403-WP317, 317L, 254SMO(UNS S31254)

Duplex & Super Duplex Steel:
ASTM A815-S31803, S32205, S32750, S32760, 2205

Low Temp. Steel:

Alloy Steel:
12CrMo, 15Cr5Mo, Cr5Mo, 12Cr1MoV, 16Mn, ASTM A234-WP11, WP22, WP91, WP5, WP9

Pipeline Steel:
L245, L290, L360, L415, L450, L485, ASTM A860 (MSS SP-75)- WPHY42, WPHY52, WPHY60, WPHY65, WPHY70

Carbon Steel:

Nickel Alloy Steel:
B361 WP6061, B366 N08904, N010276, N04400, N06600, N08825, N10276
B625 N08904, B574 N04400, N06600, N010276, B649 N08904
B625 N08904, B574 N04400, N06600, N010276, B649 N08904

180 Degree Elbow Tests and Inspections

X Radiography Test
Mechanical Test
Chemical Composition Analysis
Permeation Test
Ultrasonic Test
Metallographic Structure Test
Intergranular Corrosion Test
Hardness Test
Flattening Test
Impact Test

Documentation Offered

Raw Material Test Report
EN10204 3.1 Test Certificate
Heat Treatment Chart
Heat Treatment Report
Quality Assurance Plan
Inspection and Test Procedure Report
Welding Procedure Specification
Procedure Qualification Record

180 Degree Elbow Application

Buttweld Stainless Steel 180 Degree Elbow Uses In Oil And Gas Pipeline
180 Degree Buttweld Pipe Elbow Uses In Chemical Industry
Alloy Steel 180 Degree Elbow Uses In Plumbing
Buttweld 180 Degree Elbow Uses In Heating
180 Degree Buttweld Elbow Uses In Water Supply Systems
Asme B16.9 180 Degree Elbow Uses In Power Plant
180 Degree Elbow Uses In Paper Industry
180 Degree Elbow Uses In General Purpose Applications
180 Degree Long Radius Elbow Uses In Fabrication Industry
180 Degree Elbow Uses In Petroleum
Buttweld 180 Degree Long Radius Elbow Uses In Papermaking
Buttweld 180 Degree Short Radius Elbow Uses In Shipbuilding
High Quality180 Degree Pipe Elbow Uses In Petrochemical
Alloy 20 180 Degree Elbow Uses In Natural Gas Industry
Nickel Alloy 180 Degree Elbow Uses In Ocean Engineering
Duplex Steel 180 Degree Elbow Uses In Nuclear Industry
Ss 180 Degree Elbow Uses In Food And Beverage
Hastelloy 180 Degree Elbow Uses In Electrical Powerplant
Asme B16.9 180 Degree Elbow Uses In Pharmacy

We are stock, distribution, manufacturer, supplier, stockholder, trader, wholesaler, importer and exporter for 180 degree elbow in stainless steel, duplex steel.
