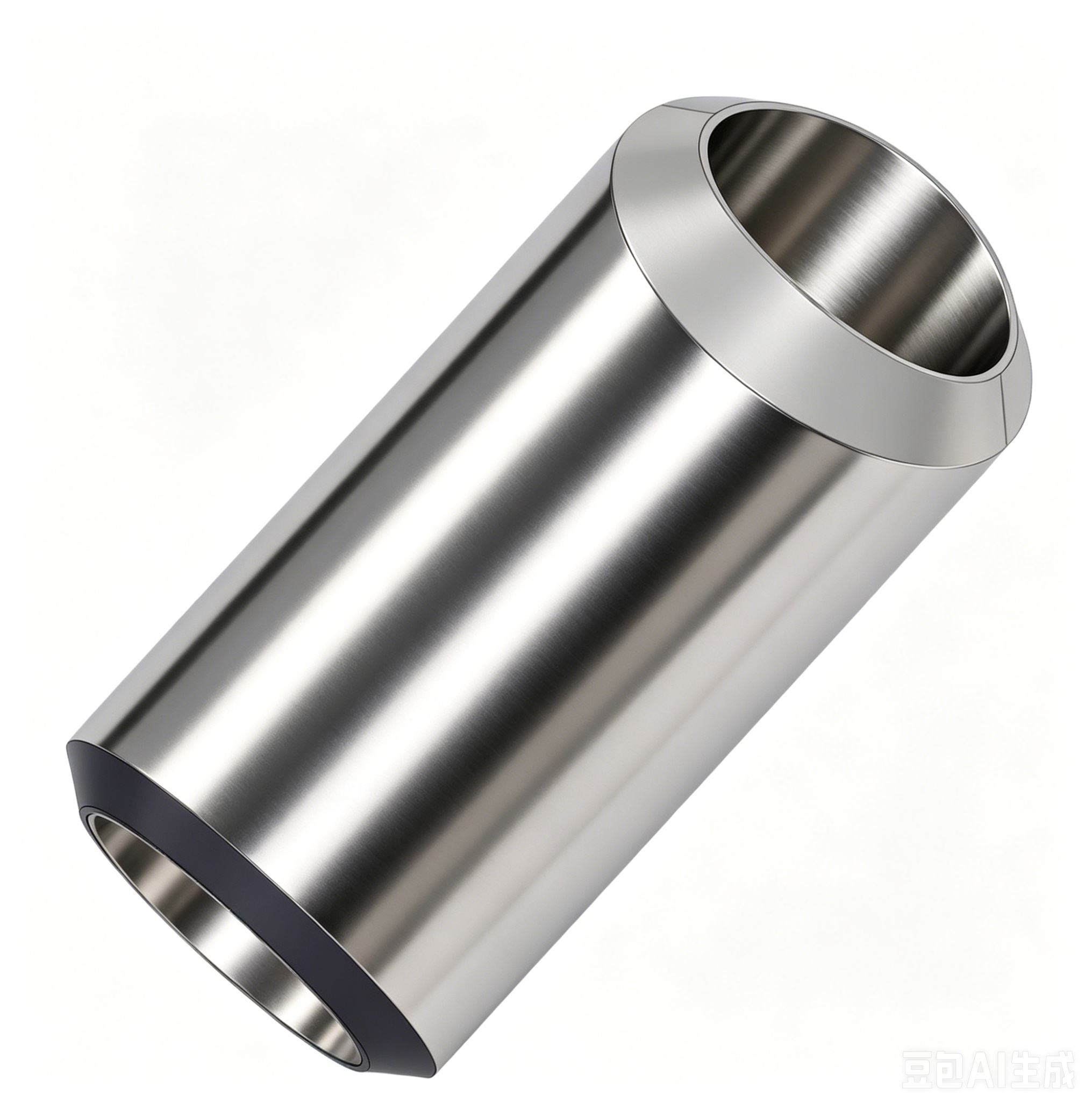

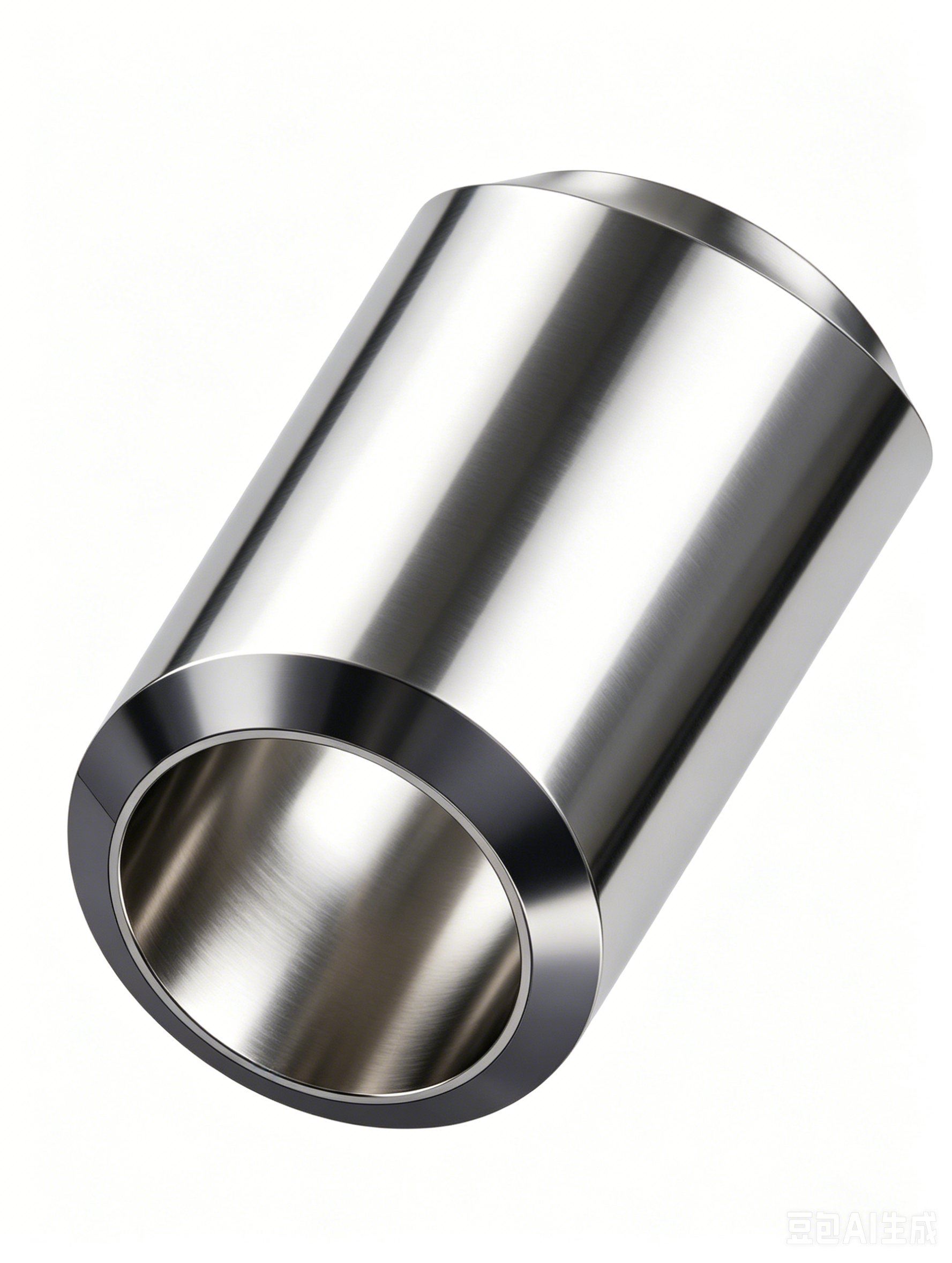

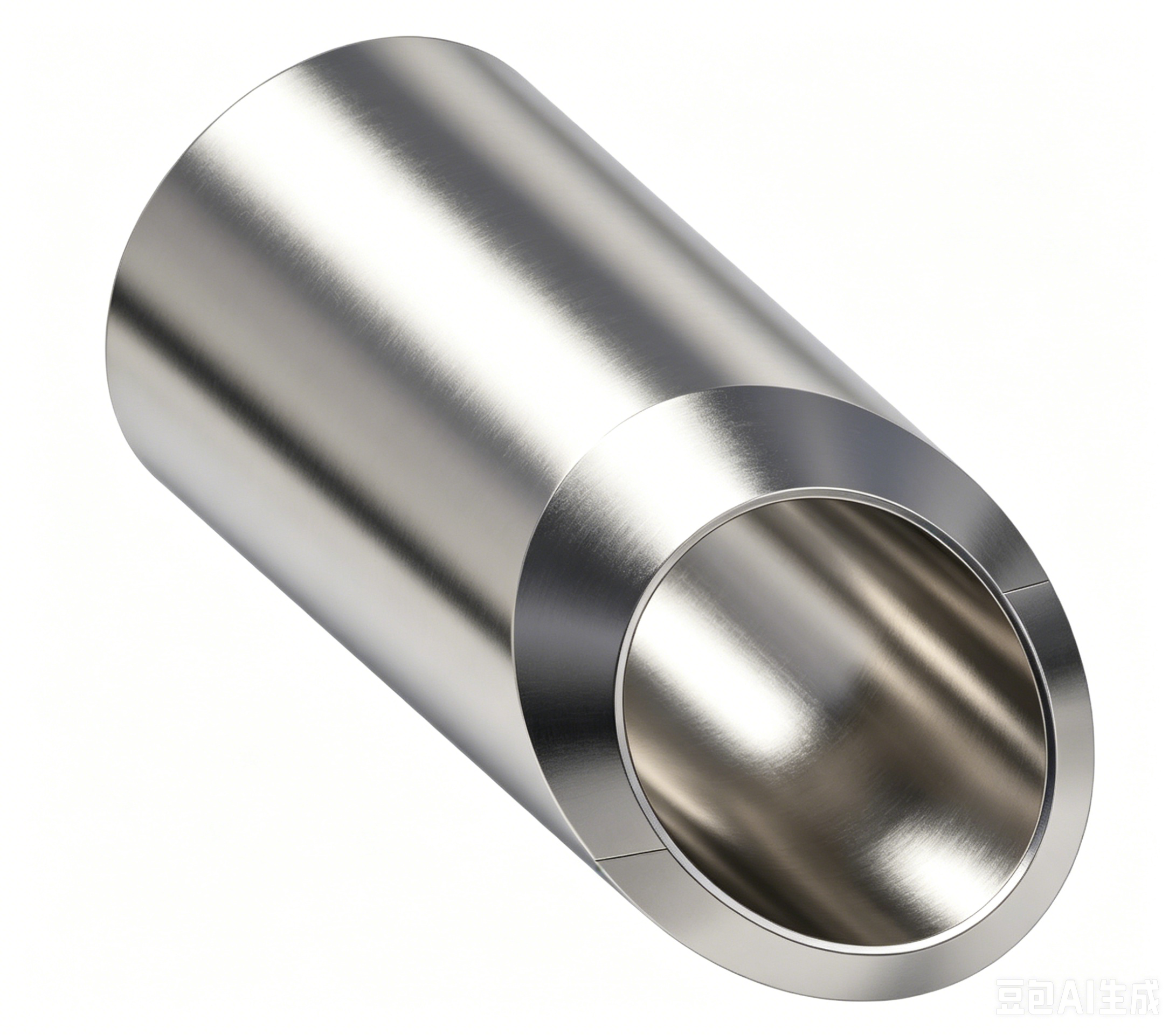

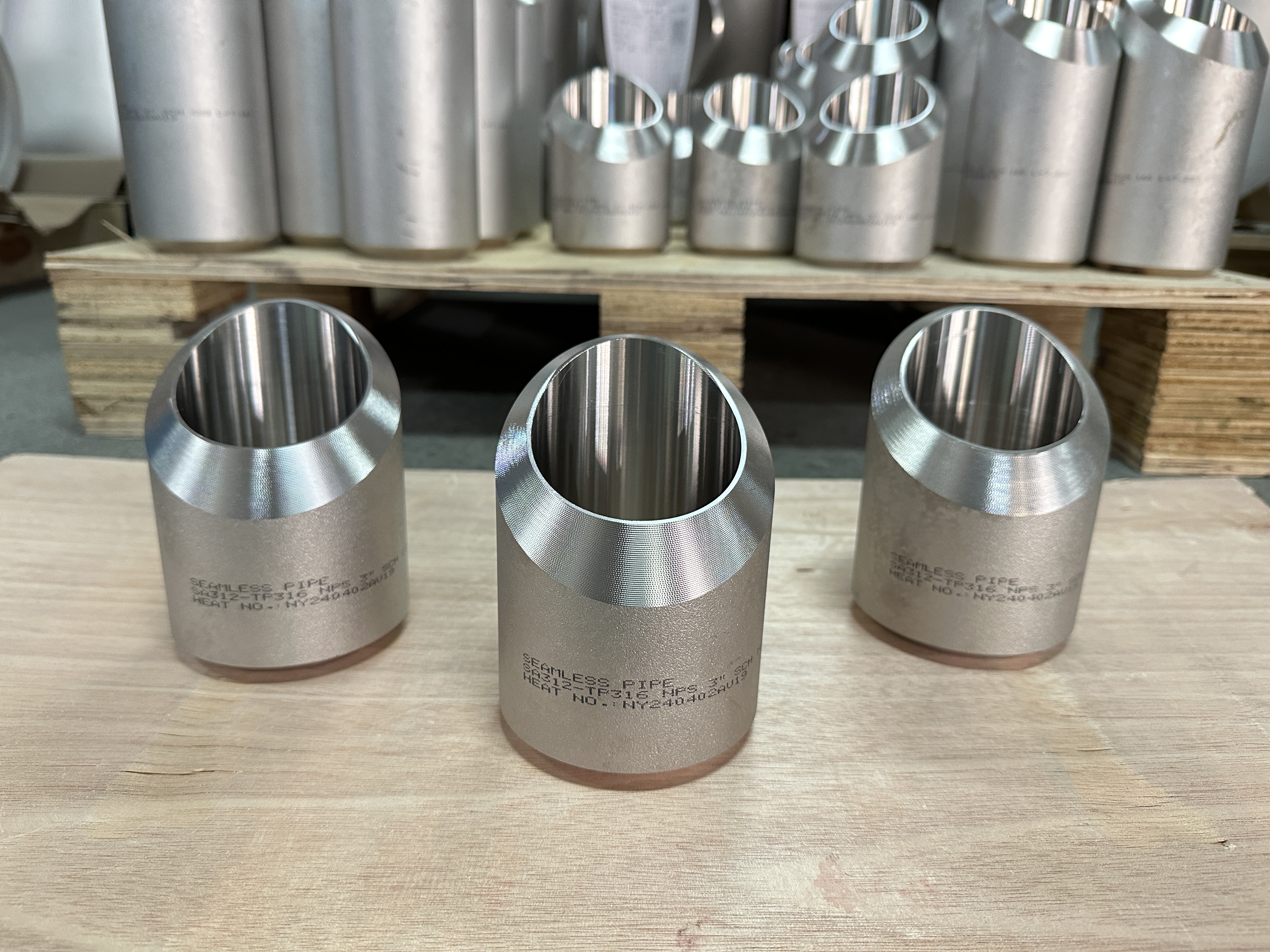

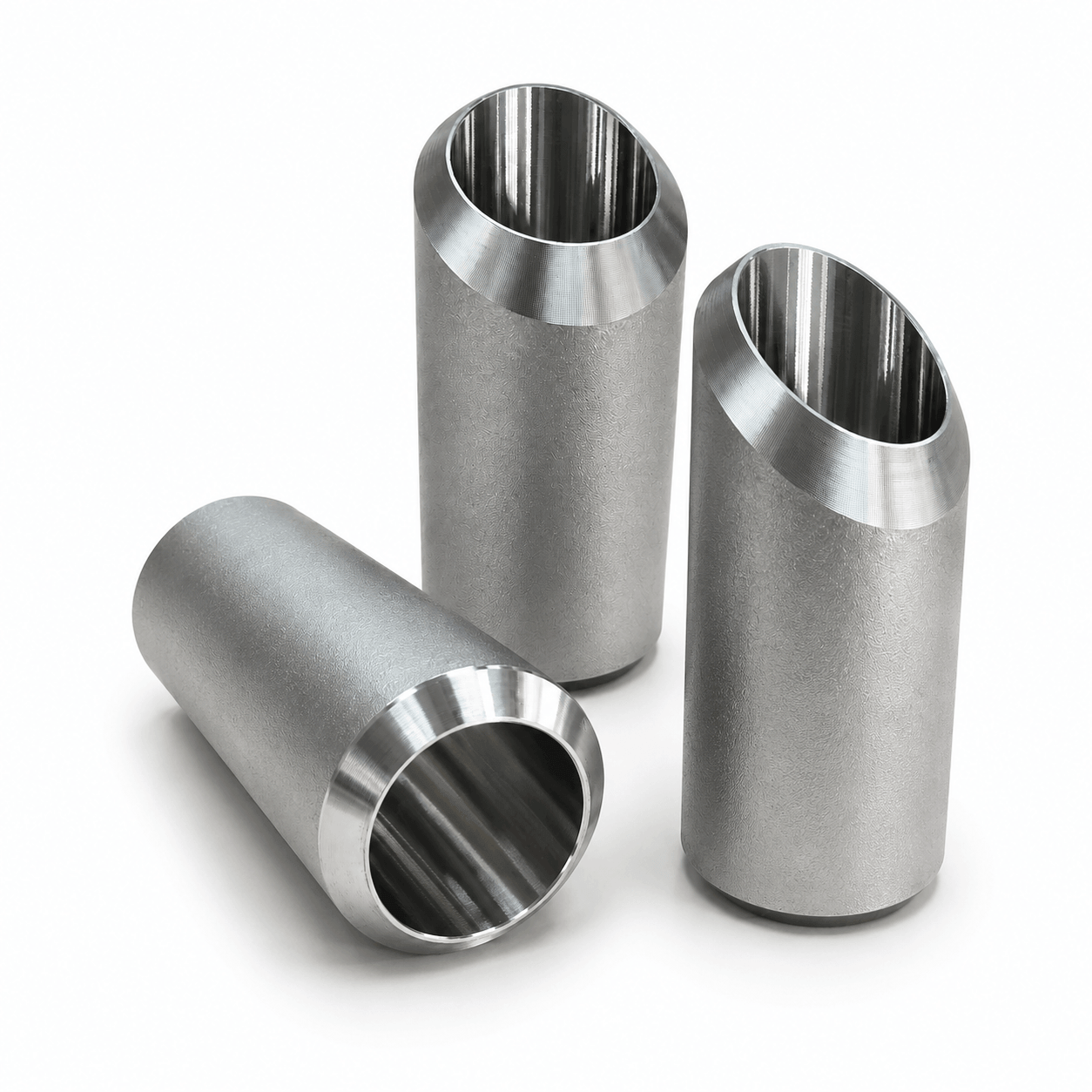

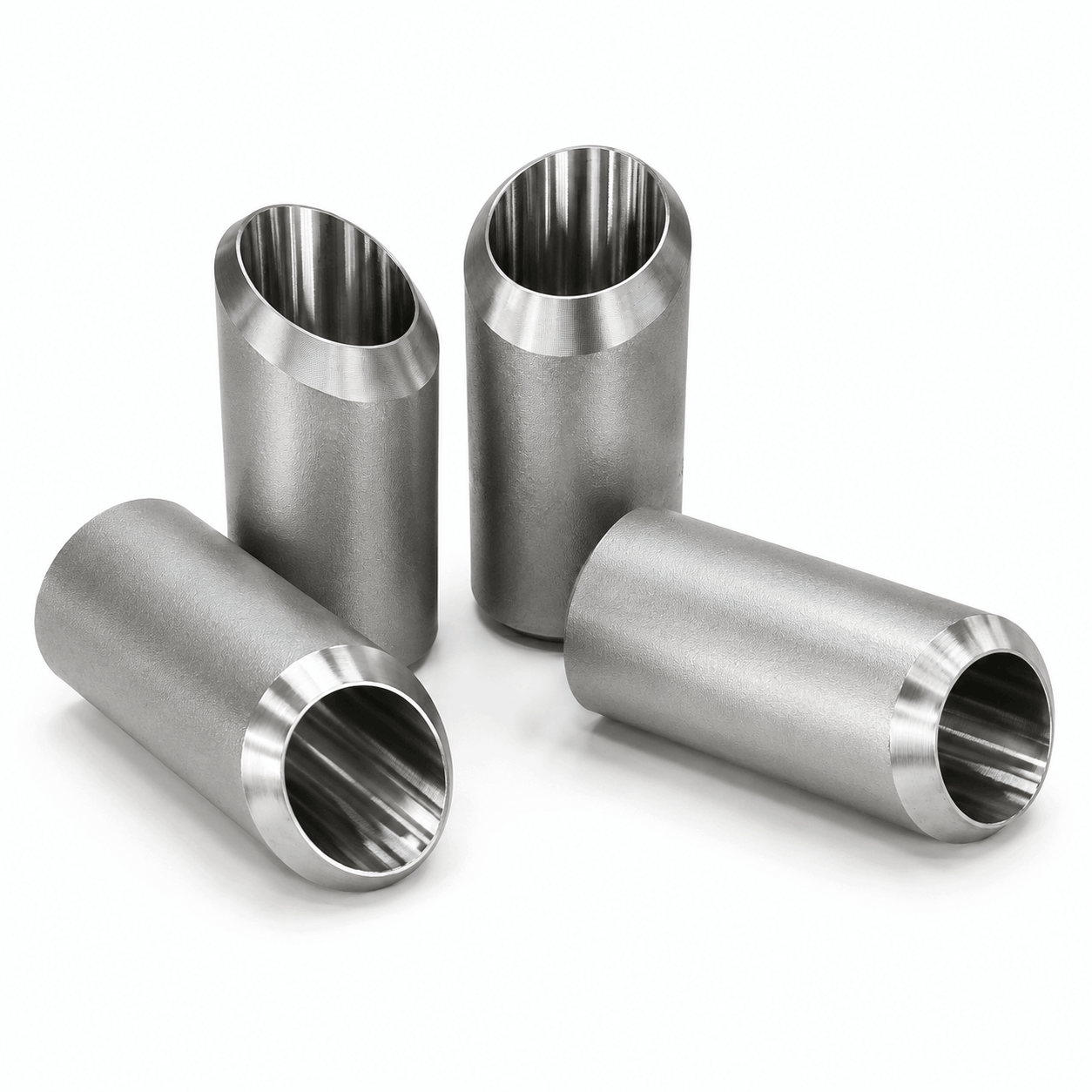

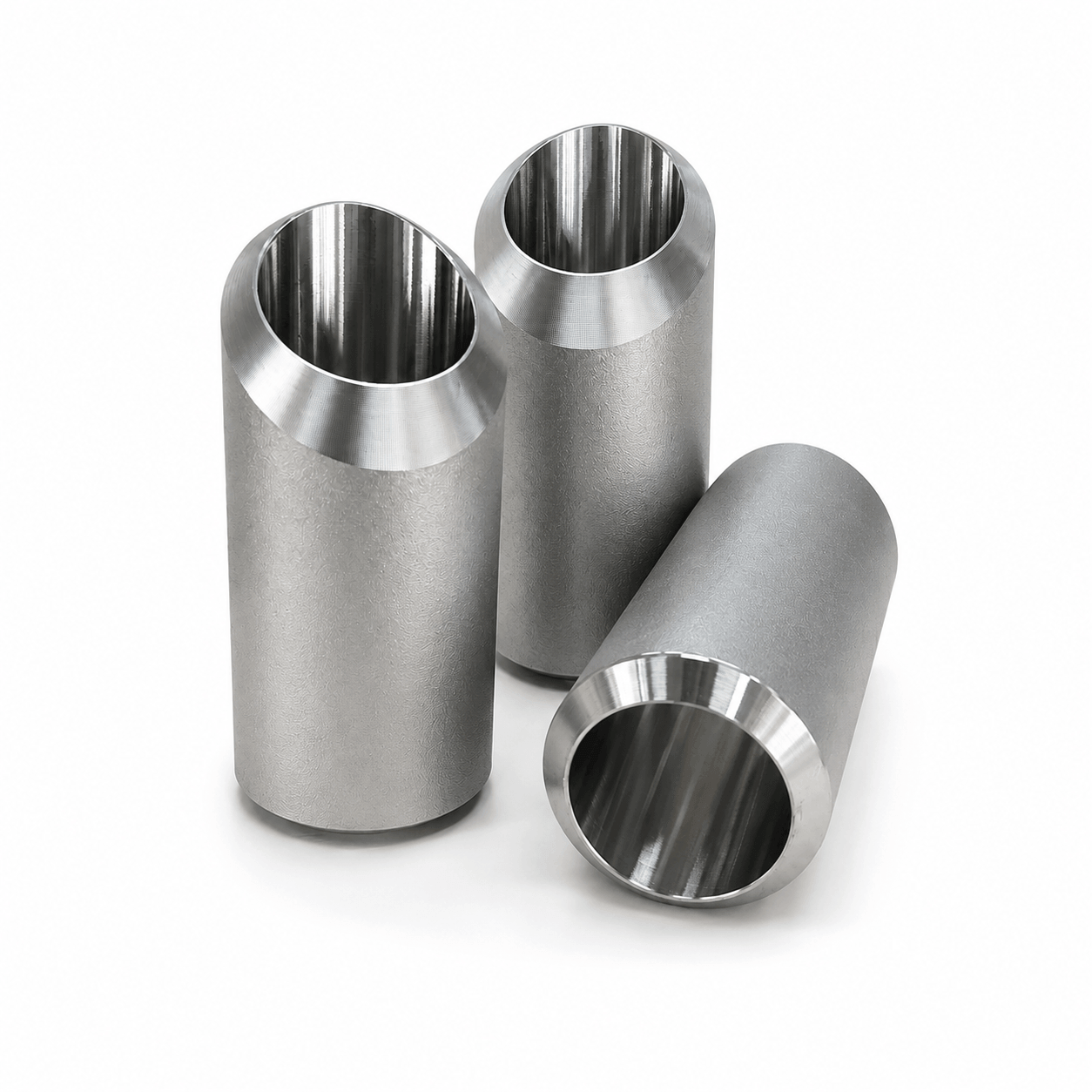

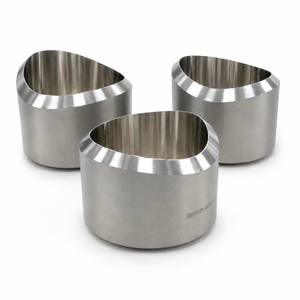

The Fuel Gas Maintenance Nozzle Assembly is a custom-fabricated nozzle connection component designed for fuel gas systems, heat exchangers, pressure vessels, headers, and gas processing equipment. It serves as a dedicated access point for inspection, pressure testing, nitrogen purging, helium leak testing, cleaning, and maintenance operations, allowing operators to service equipment without compromising system integrity.
To ensure long-term reliability in demanding LNG, hydrogen, and industrial gas applications, every assembly is produced using full penetration welding, providing excellent structural integrity, pressure containment, and leak-tight performance. Critical connection areas are manufactured through precision CNC machining, including bevel ends, fish-mouth ends, and nozzle interfaces, ensuring accurate fit-up and consistent quality.
Custom fabricated according to customer drawings and project requirements
Full penetration welding for superior strength and pressure integrity
Precision CNC-machined nozzle interfaces and end preparations
Suitable for high-pressure LNG, hydrogen, and industrial gas applications
Excellent corrosion resistance through advanced alloy material options
Supports inspection, testing, purging, cleaning, and maintenance operations
Designed for reliable performance in critical process equipment
Parameter | Specification |
|---|---|
Size Range | 1/2″ – 48″ (DN15 – DN1200) |
Wall Thickness | SCH 5S – SCH XXS |
Length | According to customer drawing |
End Type | Bevel / Plain / Flanged |
Connection Type | Welded / Flanged / Threaded |
Design Pressure | Up to 350 Bar |
Design Temperature | -196°C to +650°C |
Surface Finish | Pickled / Passivated / Machined |
Material Families | Austenitic Stainless Steel, Super Stainless Steel, Duplex, Nickel Alloy, Titanium Alloy |
Material Family | Available Grades |
|---|---|
Stainless Steel | ASTM A312 TP304L, TP316L, TP321, TP347H |
Duplex Stainless Steel | UNS S31803 (2205), UNS S32750 (2507) |
Nickel Alloys | Inconel 600, Inconel 625, Incoloy 800H, Incoloy 825, Hastelloy C276 |
Titanium | Grade 2, Grade 5 (Ti-6Al-4V) |
Project-specific manufacturing – prepared to your exact dimensions and welding requirements.
Safe maintenance access – supports pressure testing, nitrogen purging, and helium leak testing without opening the vessel.
Wide material selection – optimized for corrosion resistance, cryogenic service, or high-temperature applications.
Broad size coverage – from small instrument connections to large process nozzles.
Flexible connection options – compatible with existing piping and vessel specifications.
Reliable sealing performance – machined surfaces and controlled finishing improve leak-tight integrity.
 |  |  |
 |  |  |
 |  |  |
The Fuel Gas Nozzle Assembly serves as a critical connection point for transferring fuel gas between process equipment, fuel gas headers, manifolds, and external piping systems. It helps maintain stable gas distribution throughout the process while ensuring safe and reliable operation in LNG, hydrogen, petrochemical, and industrial gas applications.
Designed to provide a controlled entry point for fuel gas and process gases, the nozzle assembly allows gas to enter heat exchangers, pressure vessels, gas coolers, and process equipment efficiently. Its precision-fabricated construction helps optimize flow conditions and supports consistent system performance.
The assembly functions as a reliable outlet connection for collecting and transferring processed gas to downstream equipment. It facilitates smooth gas discharge from pressure vessels, heat exchangers, and gas processing systems while minimizing pressure loss and maintaining operational efficiency.
As an integral part of the pressure-containing system, the nozzle assembly provides a secure and leak-tight connection between equipment and piping networks. Manufactured from high-performance materials such as stainless steel, duplex stainless steel, nickel alloys, and titanium, it is suitable for high-pressure, cryogenic, and corrosive service conditions.
The Fuel Gas Nozzle Assembly contributes to efficient gas flow distribution within headers, manifolds, and process systems. Proper nozzle design helps reduce flow disturbances, improve process stability, and support reliable operation of fuel gas systems, LNG facilities, hydrogen plants, and heat exchanger applications.
In addition to process gas transfer, the nozzle assembly can provide dedicated access points for inspection, pressure testing, nitrogen purging, helium leak testing, and maintenance activities. This improves equipment accessibility, reduces downtime, and enhances the overall safety and maintainability of the system.
The Fuel Gas Maintenance Nozzle Assembly is specifically designed for demanding gas processing and heat transfer systems where reliability, leak-tight performance, and safe maintenance access are essential.
Widely used in hydrogen cooling systems for power generation equipment, hydrogen compressors, and hydrogen process units. The nozzle assembly provides secure access for inspection, pressure testing, helium leak testing, and maintenance operations while maintaining the integrity of high-purity hydrogen systems.
Suitable for LNG liquefaction plants, LNG regasification facilities, LNG storage systems, and cryogenic process equipment. The assembly is designed to withstand extremely low temperatures and support safe maintenance procedures in critical LNG applications.
Used on Microchannel Heat Exchangers (MCHE) to provide access points for pressure testing, nitrogen purging, leak detection, and internal maintenance. Its precision fabrication ensures compatibility with compact heat exchanger designs commonly found in LNG and gas processing facilities.
Ideal for Printed Circuit Heat Exchangers (PCHE) used in hydrogen, LNG, offshore, and high-pressure process systems. The nozzle assembly supports inspection and maintenance activities while preserving the pressure boundary integrity required for PCHE applications.
Designed for fuel gas headers, fuel gas skids, compressor stations, gas distribution modules, and process gas systems. The assembly enables safe access for commissioning, system cleaning, pressure verification, and routine maintenance, helping improve equipment reliability and operational safety.
LNG Processing Plants
Hydrogen Energy Projects
Oil & Gas Facilities
Petrochemical Plants
Industrial Gas Systems
Power Generation Facilities
Offshore Engineering Projects
Heat Exchanger Manufacturing
A Fuel Gas Maintenance Nozzle Assembly is a custom-fabricated nozzle connection component installed on fuel gas systems, pressure vessels, heat exchangers, headers, and manifolds. It provides a dedicated access point for inspection, pressure testing, nitrogen purging, helium leak testing, cleaning, and maintenance operations while maintaining system integrity.
These nozzle assemblies are widely used in LNG plants, hydrogen cooling systems, fuel gas skids, compressor stations, gas processing facilities, pressure vessels, Microchannel Heat Exchangers (MCHE), and Printed Circuit Heat Exchangers (PCHE). They are essential in industries that require safe and reliable gas handling under high-pressure conditions.
The assemblies can be manufactured from a wide range of corrosion-resistant materials, including ASTM A312 TP304L, TP316L, TP321, TP347H stainless steel, Duplex Stainless Steel 2205 and 2507, Inconel 600, Inconel 625, Incoloy 800H, Incoloy 825, Hastelloy C276, as well as Titanium Grade 2 and Grade 5. Material selection depends on the operating pressure, temperature, and process gas composition.
Yes. Every nozzle assembly is manufactured according to customer drawings, specifications, and project requirements. Customization options include size, wall thickness, length, material grade, end preparation, connection type, surface finish, and testing requirements to ensure compatibility with existing equipment and piping systems.
In LNG and hydrogen applications, regular inspection, leak testing, pressure verification, and maintenance are critical for operational safety. A Fuel Gas Maintenance Nozzle Assembly provides secure access for these activities without opening the main vessel or process equipment, helping reduce downtime, improve safety, maintain pressure boundary integrity, and extend equipment service life.
