Are you aware how vital butt weld fittings are in heat exchangers? These fittings join pipes securely, ensuring fluid flows safely. In this post, you’ll learn what butt weld fittings are, why they matter, and how various industries use them.
Butt weld fittings connect pipes and control fluid flow in heat exchanger systems. The correct fitting and material depend on the operating temperature, pressure, fluid, and pipe size.

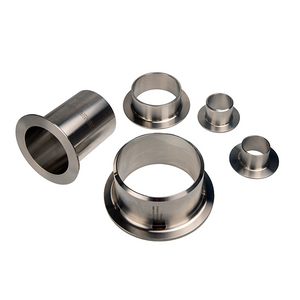

Fitting | Function | Common Materials | Typical Use |
|---|---|---|---|
Elbow | Changes flow direction, usually by 45° or 90° | Carbon steel, stainless steel | Routing pipes around equipment |

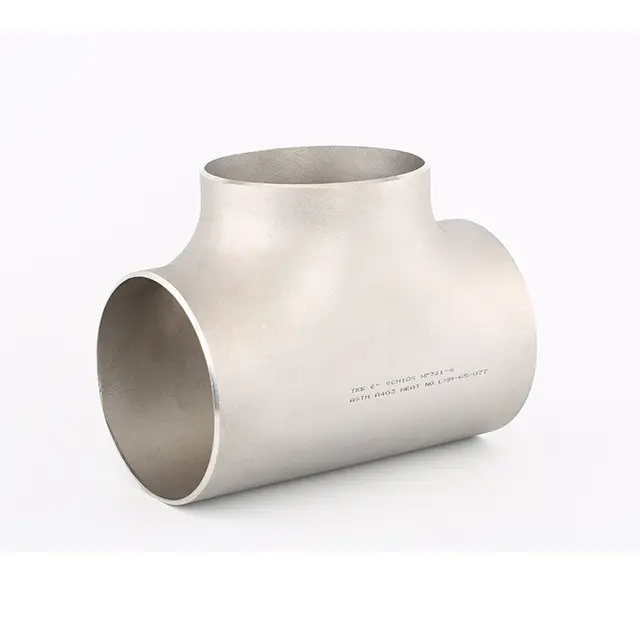

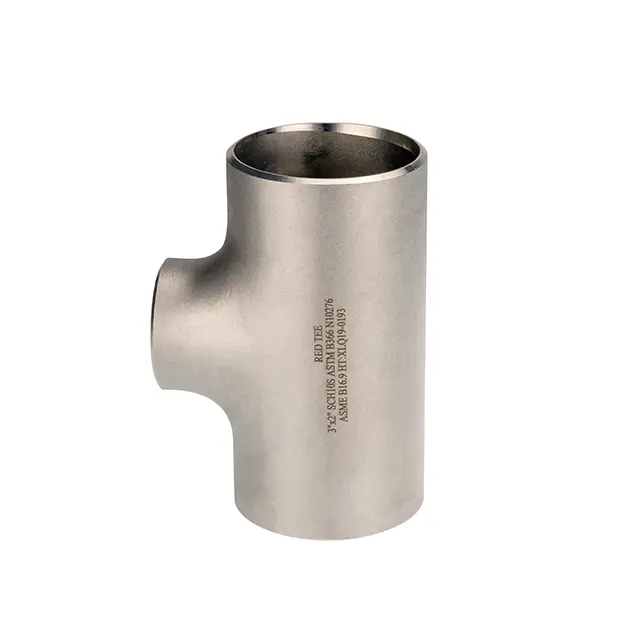

Tee | Divides or combines flow | Stainless steel, alloy steel | Creating branch connections |

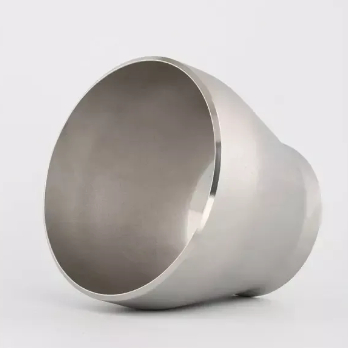

Reducer | Connects pipes of different sizes | Carbon steel, stainless steel, alloy steel | Providing a smooth size transition |
Cap | Closes the end of a pipe | Carbon steel, stainless steel | Sealing unused pipe sections |
Material | Main Benefit | Typical Application |
|---|---|---|
Carbon steel | Strong and cost-effective | General high-temperature service |
Stainless steel | Excellent corrosion resistance | Hygienic or corrosive environments |
Nickel alloys | Withstand extreme heat and corrosion | Severe chemical or high-temperature service |
Copper alloys | High thermal conductivity | Selected cooling and heat-transfer systems |
Standard | Coverage |
|---|---|
ASME B16.9 | Dimensions and tolerances for factory-made wrought butt-weld fittings |
ASTM A234 | Material requirements for carbon- and alloy-steel fittings |
MSS SP-75 | High-strength butt-weld fittings for pipeline systems |
ISO 9001 | Manufacturer’s quality-management system |
Note: API 5L mainly applies to line pipe rather than butt-weld fittings themselves. Always confirm the required material, pressure rating, dimensions, and applicable project standards before selecting a fitting.
Butt weld fittings are essential in chemical processing heat exchangers. They connect pipes and components, ensuring smooth fluid flow and system integrity. Chemical plants often handle aggressive fluids and high temperatures, so these fittings must provide strong, leak-proof joints. Their seamless welds reduce the risk of contamination and corrosion, which is critical in maintaining product purity and safety.
Chemical environments often involve acids, alkalis, and other corrosive substances. Butt weld fittings made from corrosion-resistant materials like stainless steel or alloy steels stand up well in these conditions. They offer:
Enhanced durability: Resist pitting and stress corrosion cracking.
Improved safety: Minimize leaks that can cause hazardous spills.
Longer service life: Reduce maintenance frequency and downtime.
Their robust design helps plants maintain continuous operation, saving costs and improving efficiency.
In the oil and gas industry, heat exchangers operate under extreme conditions—high pressure and temperature are common. Butt weld fittings are critical here because they provide strong, leak-proof joints capable of withstanding these harsh environments. Their seamless connection minimizes weak points that could fail under stress, ensuring the system remains safe and operational. For example, in upstream processing, where crude oil is heated or cooled, these fittings help maintain integrity despite fluctuating pressures.
Choosing the right material for butt weld fittings in oil and gas is vital. Carbon steel is often used for general applications, but stainless steel and high-performance alloys like Inconel or Duplex stainless steel are preferred for corrosive or highly demanding environments. These materials resist corrosion from sour gas (H2S) and other aggressive fluids.
Design-wise, fittings must handle thermal expansion and contraction without cracking. They often feature thicker walls or special heat treatments to improve toughness. The geometry of elbows, tees, and reducers is optimized for smooth flow, reducing turbulence and erosion inside pipes. This careful design extends the life of both fittings and heat exchangers.
Safety is paramount in oil and gas. Butt weld fittings contribute by offering:
Leak-tight joints: Preventing hazardous leaks that could cause fires or environmental damage.
High fatigue resistance: Withstanding cyclic pressures and temperature changes without failure.
Inspection compatibility: Their welds can be examined using radiography or ultrasonic testing to detect defects early.
Reliability means fewer shutdowns for maintenance, which saves costs and improves productivity. Many oil and gas companies follow strict standards like API 6A and ASME B31.3 to ensure fittings meet safety and performance criteria.
Butt weld fittings play a vital role in heat exchangers used in power generation, both thermal and nuclear. In thermal power plants, these fittings connect piping that carries steam, water, or cooling fluids. They handle high temperatures and pressures common in boilers and condensers. Their seamless welds ensure strong joints that resist leaks and withstand thermal stresses.
In nuclear power plants, safety and reliability are critical. Butt weld fittings help maintain system integrity under extreme conditions, such as high radiation, temperature fluctuations, and pressure changes. They connect components in primary and secondary cooling loops, ensuring efficient heat transfer while minimizing risk of contamination or failure.
Using butt weld fittings improves heat exchanger efficiency by enabling smooth fluid flow through piping networks. Their precise welds reduce turbulence and pressure drops, which enhances heat transfer rates. Strong joints also prevent leaks that could cause energy loss or damage equipment.
Maintenance becomes easier since these fittings create reliable, long-lasting connections. Welded joints require less frequent repairs compared to threaded or flanged connections. This reduces downtime and maintenance costs. When inspections or replacements are needed, welds can be carefully examined using ultrasonic or radiographic testing to detect any defects early.
Butt weld fittings provide exceptional strength due to their seamless joints. The welding process fuses pipes and fittings into a single continuous piece, eliminating weak points common in threaded or flanged connections. This fusion enhances the mechanical integrity of the piping system, enabling it to handle high pressures and thermal stresses typical in heat exchangers.
Durability is another key advantage. These fittings resist fatigue from cyclic temperature changes and pressure fluctuations. They also withstand vibrations and mechanical shocks. This robustness reduces the risk of cracks or failures, ensuring a longer service life for heat exchanger systems. For example, in power plants, butt weld fittings maintain structural integrity despite constant thermal cycling.
Leak prevention is critical in heat exchangers, where fluid containment ensures safety and efficiency. Butt weld fittings create leak-tight seals by forming a continuous metal bond. This minimizes the chances of fluid escaping, which could cause contamination, energy loss, or hazardous situations.
These fittings also excel at handling high pressures. The smooth welds distribute stress evenly, avoiding localized weaknesses that could rupture under pressure. This makes them ideal for applications like oil and gas heat exchangers, where pressures often exceed standard limits. The ability to maintain seal integrity under pressure enhances operational reliability.
Installation of butt weld fittings requires skilled welding but offers long-term benefits. Once welded, the joints require little maintenance compared to flanged or threaded connections that may loosen over time. This reduces downtime and maintenance costs.
Welding allows for precise alignment, which simplifies piping layout and improves flow characteristics. The fittings also save space due to their compact design, beneficial in tight industrial environments.
Inspection and maintenance are straightforward because welds can be examined using non-destructive testing methods like ultrasonic or radiographic inspection. Detecting flaws early prevents costly failures.
Note: Invest in qualified welding professionals and proper inspection tools to maximize the strength and leak-proof advantages of butt weld fittings in heat exchanger systems.
Installing butt weld fittings in heat exchangers demands precision and skill. Misalignment during welding can cause stress points, leading to cracks or leaks. Heat exchangers often operate under high pressure and temperature, so even minor welding flaws may cause system failure.
Welding in confined spaces poses challenges. Tight areas restrict welder movement and limit access for equipment. This can result in incomplete weld penetration or uneven weld beads. Additionally, the thermal expansion of pipes during welding may distort fittings, affecting joint integrity.
Material selection also impacts welding difficulty. Alloy steels or corrosion-resistant metals require specific welding techniques and filler materials. Improper procedures can cause weld defects like porosity, cracking, or lack of fusion.
To ensure safety and performance, rigorous inspection follows installation. Non-destructive testing (NDT) methods are commonly used:
Radiographic Testing (RT): Uses X-rays or gamma rays to detect internal weld flaws.
Ultrasonic Testing (UT): Sends high-frequency sound waves to identify cracks or voids.
Magnetic Particle Testing (MT): Detects surface and near-surface defects in ferromagnetic materials.
Dye Penetrant Testing (PT): Highlights surface cracks by capillary action of colored dye.
Visual inspections verify weld bead appearance, size, and uniformity. Dimensional checks confirm proper alignment and fit-up.
Quality control also involves monitoring welding parameters like heat input, travel speed, and shielding gas flow. Documenting these ensures repeatability and traceability.
Advancements in welding technology enhance fitting reliability. Automated and robotic welding systems deliver consistent, high-quality welds even in challenging positions. These systems reduce human error and improve productivity.
New filler materials and welding processes, such as laser welding or friction stir welding, offer stronger joints and less distortion. These methods also minimize heat-affected zones, preserving base metal properties.
Surface treatments and coatings protect welds against corrosion and wear. For example, applying anti-corrosive layers or using post-weld heat treatment improves longevity.
Smart sensors embedded near welds monitor temperature, stress, and vibration in real time. This predictive maintenance helps detect early signs of failure and schedule timely repairs.
The next generation of butt weld fittings will focus on three priorities: stronger materials, cleaner production, and more reliable system monitoring. These developments aim to extend service life while supporting demanding heat exchanger applications.
Duplex stainless steels, nickel-based alloys, and other corrosion-resistant materials are becoming increasingly important. They can perform under high temperatures, elevated pressures, and aggressive process fluids.
Manufacturing methods are also evolving:
Material selection → Digital design → Precision forming → Automated inspection
Additive manufacturing may support prototypes and specialized fitting geometries. Advanced welding and machining technologies can improve dimensional accuracy and reduce distortion. However, conventional forming and forging will remain important for standard fittings and large production volumes.
Sensor-enabled components are another area of development. Embedded or externally mounted sensors can monitor temperature, pressure, vibration, and strain. The collected data may help operators identify abnormal conditions before leakage or structural failure occurs.
Future production will place greater emphasis on reducing energy consumption, material waste, and manufacturing emissions. Better process control can improve material utilization while lowering the number of rejected fittings.
Durability also contributes to sustainability. Corrosion-resistant fittings require fewer replacements and help reduce the risk of process-fluid leakage. Recyclable alloys and clearly identified material grades can simplify recovery at the end of service life.
Within the heat exchanger, accurate fitting dimensions and smooth flow transitions can also support efficient operation. Reliable joints reduce leakage risks, while suitable fitting designs help control unnecessary pressure loss.
Advanced fittings are expected to support increasingly demanding applications in chemical processing, power generation, oil and gas, hydrogen systems, and other energy-related industries. These sectors require materials that can tolerate challenging combinations of pressure, temperature, and corrosion.
Digital monitoring may gradually change maintenance from scheduled inspections to condition-based planning:
Operating data → Early warning → Targeted inspection → Planned maintenance
Standards and qualification procedures will also need to evolve as new materials and manufacturing methods enter the market. Buyers should therefore evaluate not only performance claims but also material traceability, applicable standards, test records, and long-term service data.
Tip: Select future-ready fittings based on verified operating conditions and documentation. Advanced materials or monitoring features should provide measurable value for the specific heat exchanger system.
Butt weld fittings are essential in heat exchangers across chemical, oil and gas, and power industries. They ensure strong, leak-proof connections that withstand high pressure and temperature. These fittings improve system safety, durability, and efficiency while reducing maintenance needs. Future trends include advanced materials and smart technologies that enhance performance and sustainability. Huashang Steel offers high-quality butt weld fittings designed to meet rigorous industry standards, providing reliable solutions that add value and support long-term operational success.
A: Butt weld fittings for heat exchangers are seamless pipe connectors like elbows, tees, reducers, and caps, designed to join components securely under high temperature and pressure.
A: They provide leak-proof, corrosion-resistant joints essential for handling aggressive fluids safely and maintaining system integrity.
A: They ensure strong, fatigue-resistant connections that withstand high pressure and corrosive environments, enhancing safety and reliability.
A: Precise welding skills are needed to avoid misalignment and defects; advanced inspection methods ensure quality and longevity.
