Reliable heat exchanger performance depends on more than tubes and plates. The piping connections must also remain secure under pressure, temperature changes, and demanding process conditions. Butt weld fittings for heat exchangers create smooth, permanent joints that help reduce leakage risks and support stable fluid flow.
Available as elbows, tees, reducers, and caps, these fittings connect and route heat exchanger piping across many industrial systems. Their material, dimensions, weld preparation, and installation quality directly influence system safety, durability, and maintenance requirements.
This guide explores common fitting types, material options, manufacturing and installation methods, operating challenges, inspection requirements, and future industry developments.

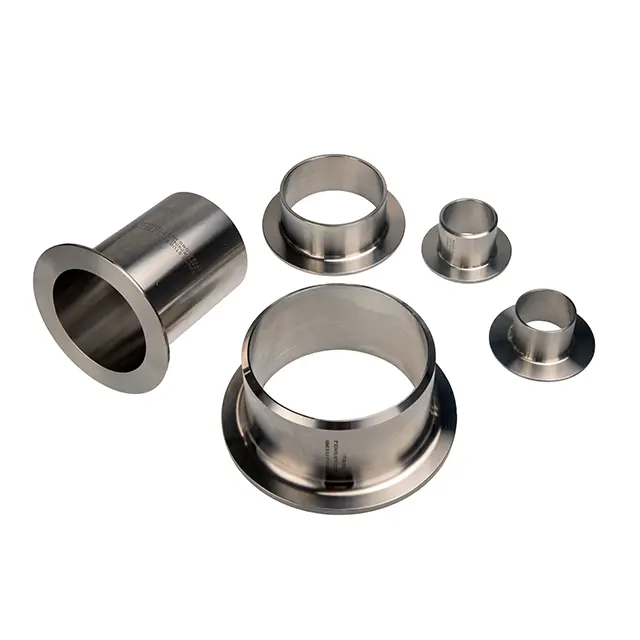

Butt weld fittings connect pipes, change flow direction, create branches, and join different pipe sizes. The correct fitting depends on the piping layout, flow requirements, pressure, temperature, and process fluid.
Fitting Type | Main Function | Common Variations | Key Consideration |
|---|---|---|---|

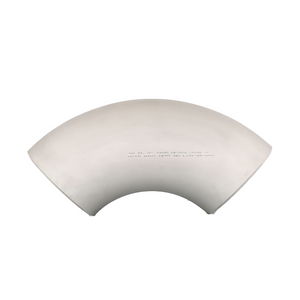

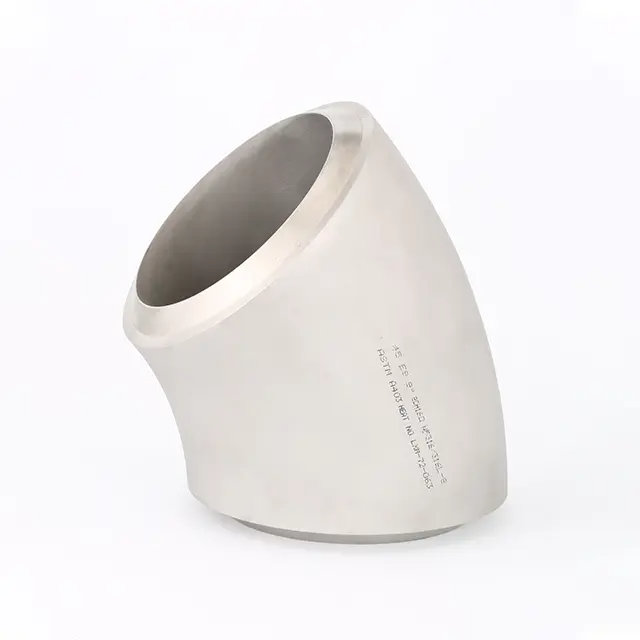

Elbow | Changes the direction of fluid flow | 45°, 90°, long radius, short radius | Long-radius elbows reduce turbulence and pressure loss; short-radius elbows save space |
Tee | Divides or combines fluid flow | Equal tee, reducing tee | Proper sizing helps maintain balanced flow |

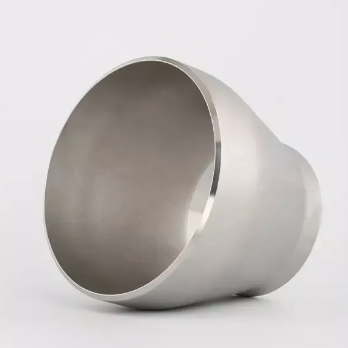

Reducer | Connects pipes of different diameters | Concentric, eccentric | Eccentric reducers help prevent air or vapor pockets in horizontal lines |
Cap | Seals the end of a pipe | Standard butt-weld cap | Provides a secure permanent or temporary closure |
Coupling | Joins two pipes in a straight line | Full coupling, reducing coupling | Couplings are more commonly threaded or socket-welded; confirm the fitting type and applicable standard |
Material | Main Advantage | Typical Application |
|---|---|---|
Carbon steel | Strong and economical | Moderate temperatures and non-corrosive fluids |
Stainless steel | High corrosion resistance | Chemical, food, pharmaceutical, and hygienic systems |
Alloy steel | Handles high temperatures and pressures | Power generation and severe industrial service |
Nickel alloy | Resists extreme heat and aggressive chemicals | Highly corrosive or demanding process conditions |
Material selection should consider temperature, pressure, corrosion, thermal cycling, and fluid compatibility. Choosing the correct fitting design and material helps create reliable, leak-resistant heat exchanger piping.
Butt weld fittings in heat exchangers must handle harsh environments. Choosing the right material is critical for safety, durability, and performance.
Carbon Steel: Widely used due to affordability and good mechanical strength. Best for moderate temperatures and pressures. However, it can corrode if exposed to aggressive fluids or moisture.
Stainless Steel: Offers excellent corrosion resistance and strength. Ideal for corrosive fluids and high-temperature applications. Common grades include 304 and 316 stainless steel.
Alloy Steel: Designed for extreme conditions, alloy steels resist high temperatures and pressures better than carbon or stainless steel. They often contain elements like chromium, molybdenum, or nickel for enhanced properties.
Standards ensure fittings meet safety and quality requirements. Commonly followed standards include:
ASME (American Society of Mechanical Engineers): Sets requirements for pressure vessel and piping components, including butt weld fittings.
ASTM (American Society for Testing and Materials): Provides material specifications like chemical composition, mechanical properties, and testing methods.
API (American Petroleum Institute): Relevant for fittings used in oil and gas heat exchangers.
ISO (International Organization for Standardization): Covers quality management and material standards globally.
Compliance with these standards guarantees fittings can withstand operating conditions and regulatory demands.
Selecting material depends on several factors:
Temperature: Higher temperatures require materials like alloy steel or stainless steel to prevent deformation or failure.
Pressure: High-pressure systems demand materials with strong tensile strength.
Corrosive nature of fluid: Aggressive chemicals call for corrosion-resistant materials like stainless steel or special alloys.
Thermal cycling: Materials must tolerate expansion and contraction without cracking.
Cost considerations: Balancing performance needs with budget constraints is essential.
Material affects:
Longevity: Corrosion-resistant materials last longer, reducing downtime and replacement costs.
Safety: Proper materials prevent leaks, ruptures, and accidents.
Efficiency: Smooth, corrosion-free surfaces maintain optimal fluid flow.
Maintenance: Durable materials require less frequent inspection and repair.
Choosing unsuitable materials can lead to premature failure, costly repairs, and safety hazards.
Butt weld fittings undergo precise manufacturing steps to ensure durability and fit. The main processes include:
Forging: Heating metal billets and shaping them under high pressure to form the fitting’s basic shape. This method improves strength by refining the grain structure.
Casting: Molten metal poured into molds for complex shapes. Used less frequently due to potential porosity.
Machining: Cutting and finishing the fitting to exact dimensions. This ensures proper alignment and smooth surfaces for welding.
Heat Treatment: Controlled heating and cooling cycles relieve stresses and enhance mechanical properties.
Each step must meet strict tolerances to guarantee proper fit and performance in heat exchanger systems.
Quality control relies on thorough inspection and testing to detect flaws early:
Visual Inspection: Checks surface finish, dimensional accuracy, and weld seam quality.
Radiographic Testing (RT): Uses X-rays or gamma rays to reveal internal defects like cracks or voids.
Ultrasonic Testing (UT): Sends high-frequency sound waves through the fitting to detect subsurface flaws.
Hydrostatic Testing: Applies high-pressure water to verify leak-proof integrity.
Magnetic Particle Testing: Detects surface and near-surface cracks in ferromagnetic materials.
Combining these methods ensures fittings meet safety and reliability standards.
Manufacturers follow recognized standards to maintain consistent quality:
ASME Boiler and Pressure Vessel Code (BPVC): Governs design, material, and testing requirements for pressure components.
ASTM Specifications: Define material properties and testing methods for fittings.
ISO 9001: Quality management system standard ensuring process control and continuous improvement.
API Standards: Relevant for fittings used in oil, gas, and petrochemical heat exchangers.
Adhering to these standards helps prevent failures and extends service life.
Despite careful manufacturing, defects can occur:
Cracks: Caused by improper cooling or welding stresses. Addressed by controlled heat treatment and proper welding techniques.
Porosity: Gas pockets trapped during casting or welding. Prevented by clean materials and controlled environments.
Dimensional Variations: Result from machining errors. Corrected by re-machining or rejection.
Inclusions: Non-metallic particles trapped inside the metal. Minimized through quality raw materials and refining processes.
Early detection and corrective actions reduce downtime and cost.
Proper preparation ensures strong, reliable welds. First, clean the pipe ends and fitting surfaces thoroughly to remove dirt, oil, rust, or scale. Any contamination can weaken the weld or cause defects. Next, check the dimensions and bevel angles of the pipe ends and fittings to ensure they meet specifications.
Alignment is critical. Misaligned fittings cause uneven stress and poor weld penetration. Use clamps, fixtures, or tack welds to hold parts in place. Confirm the alignment in all directions—axial, radial, and angular—before proceeding. Proper root gap and fit-up ensure full weld penetration and minimize distortion.
Several welding techniques suit butt weld fittings in heat exchangers:
Shielded Metal Arc Welding (SMAW): Versatile and widely used. Good for field work but may require more cleanup.
Gas Tungsten Arc Welding (GTAW or TIG): Offers precise control and high-quality welds. Ideal for thin materials and stainless steel.
Gas Metal Arc Welding (GMAW or MIG): Faster process suitable for thicker sections but less precise than TIG.
Submerged Arc Welding (SAW): Used for large diameter pipes and heavy fittings, providing deep penetration and high deposition rates.
Choice depends on material type, thickness, and site conditions. TIG welding often preferred for heat exchangers due to its clean, precise welds.
To achieve durable, leak-proof welds:
Maintain proper root gap and bevel angle for full penetration.
Use appropriate welding parameters (current, voltage, travel speed) based on material and thickness.
Employ multi-pass welding for thick fittings, ensuring each pass is clean and free of defects.
Control heat input to avoid overheating, which causes warping or cracking.
Use backing rings or purge gases (like argon) for stainless steel to prevent oxidation inside the weld.
Avoid contamination by handling electrodes and filler metals carefully.
After welding, inspect welds visually for surface defects like cracks, porosity, or undercut. Non-destructive testing methods such as radiographic or ultrasonic testing confirm internal weld integrity.
Stress relief heat treatment reduces residual stresses caused by welding. It involves heating the weld area to a specified temperature, holding it, then cooling slowly. This process prevents cracking and distortion during operation.
Proper post-weld cleaning removes slag or spatter, preserving corrosion resistance and appearance.
Butt weld fittings offer several key benefits that make them ideal for heat exchanger piping systems. Their design and material properties contribute to the overall strength, reliability, and cost-effectiveness of the system.
Butt weld fittings provide excellent mechanical strength due to the continuous weld joint that joins pipes and fittings. This seamless connection handles high pressure and temperature fluctuations common in heat exchangers. The weld penetrates the full thickness of the pipe wall, creating a strong bond that resists cracking and fatigue. Additionally, the forging and heat treatment processes used in manufacturing enhance the fittings’ toughness and resistance to wear.
This durability means fittings maintain integrity during thermal cycling and vibration, reducing the risk of leaks or failures. Their robust nature supports long service life even in demanding industrial environments.
One of the biggest advantages of butt weld fittings is their ability to create leak-proof joints. The smooth, uniform weld surface eliminates gaps or crevices where fluids could escape or contaminants enter. This is vital for heat exchangers handling hazardous or corrosive fluids.
Proper welding techniques and post-weld inspections ensure joints remain tight and defect-free. The result is improved system integrity and safety. Leak prevention also reduces downtime and maintenance costs caused by fluid loss or damage.
While welded joints are permanent, butt weld fittings still allow for systematic maintenance. Their standardized shapes and sizes make it easier to identify and replace damaged sections during scheduled shutdowns. When a fitting or pipe segment needs replacement, cut-out and re-welding can be done efficiently without disturbing the entire system.
This modularity helps reduce repair time and labor costs. It also allows for upgrades or modifications to the heat exchanger piping without major overhauls.
Though butt weld fittings may have higher upfront costs compared to threaded or socket weld fittings, they prove cost-effective over time. Their strength and leak resistance reduce repair frequency and unexpected failures. Lower maintenance needs and extended service life translate to less downtime and operational expense.
Furthermore, energy losses from leaks or pressure drops are minimized, improving overall heat exchanger efficiency. The long-term savings and reliability justify the initial investment in quality butt weld fittings.
Butt weld fittings may suffer from corrosion, thermal stress, welding defects, and incorrect specification. Proper design, installation, and inspection help prevent leaks and extend heat exchanger service life.
Challenge | Possible Effects | Recommended Solutions |
|---|---|---|
Corrosion | Metal loss, weaker fittings, and leakage | Use corrosion-resistant materials, protective coatings, suitable linings, or cathodic protection where appropriate |
Erosion | Internal surface wear caused by fast-moving fluids | Control fluid velocity, improve flow paths, and inspect high-wear areas regularly |
Thermal expansion | Stress, deformation, or cracking at welded joints | Add expansion loops or joints, use suitable supports, and perform piping stress analysis |
Welding defects | Cracks, porosity, incomplete fusion, distortion, or leaks | Follow an approved WPS, clean surfaces, use qualified welders, and apply suitable heat treatment |
Material mismatch | Corrosion, joint stress, or premature failure | Select compatible fitting, pipe, and heat exchanger materials |
Incorrect pressure or temperature rating | Reduced performance or fitting failure | Check design conditions, material grades, wall thicknesses, and applicable standards |
Poor design coordination | Installation problems, restricted flow, or costly rework | Coordinate design, purchasing, fabrication, and inspection requirements |
Limited installation space | Misalignment or difficult welding access | Review the piping layout and use engineered fittings when standard options are unsuitable |
Welded fittings should be inspected using appropriate non-destructive testing methods, such as:
Visual testing for surface defects and poor weld shape
Dye penetrant testing for surface cracks
Magnetic particle testing for defects in ferromagnetic materials
Ultrasonic testing for internal defects
Radiographic testing for porosity, cracks, and incomplete fusion
Note: Monitor material condition, weld quality, and operating parameters regularly to identify problems before they cause leaks or shutdowns.
New materials are emerging to enhance butt weld fittings’ resistance to corrosion, heat, and wear. Advanced alloys combine elements like nickel, chromium, and molybdenum to boost strength and longevity under harsh conditions. Coatings also play a big role — ceramic and polymer coatings improve surface hardness and protect against chemical attack. These innovations help fittings last longer, even in aggressive fluids or high-temperature environments.
Manufacturing methods continue evolving to increase precision and reduce defects. Technologies like automated welding and robotic machining ensure consistent quality and tighter tolerances. Additive manufacturing (3D printing) is starting to enable complex fitting shapes and customized designs impossible with traditional methods. These improvements cut production time and cost while boosting reliability.
The future points to smart fittings embedded with sensors that monitor temperature, pressure, and stress in real time. These sensors provide early warnings of leaks, corrosion, or mechanical failure. Integrating IoT (Internet of Things) technology allows remote monitoring and predictive maintenance, reducing downtime and costly repairs. Smart fittings transform heat exchanger management from reactive to proactive.
Sustainability drives innovation in materials and processes. Manufacturers focus on eco-friendly alloys and recyclable materials. Energy-efficient production methods reduce carbon footprints. Moreover, coatings that extend fitting life reduce waste and resource consumption. Designing fittings for easy disassembly supports circular economy principles, helping industries meet environmental regulations and corporate responsibility goals.
Butt weld fittings are essential for reliable and efficient heat exchanger piping systems. Proper selection, installation, and maintenance ensure strong, leak-proof connections that withstand pressure and temperature changes. Using quality materials and following best welding practices prevent defects and extend service life. For optimal heat exchanger performance, choose trusted products that offer durability and corrosion resistance. Huashang Steel provides high-quality butt weld fittings designed to meet these demands, delivering exceptional value and long-term reliability.
A: Butt weld fittings for heat exchangers are specialized pipe connectors welded end-to-end, ensuring strong, leak-proof joints essential for handling high pressure and temperature in heat exchanger systems.
A: They provide superior strength, durability, and leak prevention, maintaining system integrity under thermal cycling and corrosive conditions common in heat exchangers.
A: Material choice depends on operating temperature, pressure, fluid type, and corrosion resistance, with common options including carbon steel, stainless steel, and alloy steel.
A: Challenges include corrosion, thermal stress, and welding defects, which can be managed by proper material selection, design, and quality welding practices.
