Are you sure your heat exchanger uses the best pipe fittings? Butt Weld Fittings for Heat Exchangers offer unmatched strength and reliability.
These fittings create seamless, leak-proof joints essential for heat exchanger performance. They outperform threaded and socket weld fittings.
In this post, you’ll learn about types, materials, and benefits of butt weld fittings for heat exchangers.

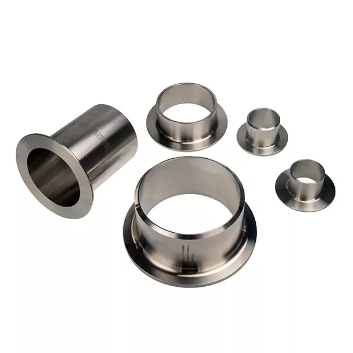

Butt weld fittings are essential components in heat exchanger piping systems. They help manage fluid flow, connect pipes, and provide access points for maintenance or equipment installation. Here's a detailed look at the common types used:

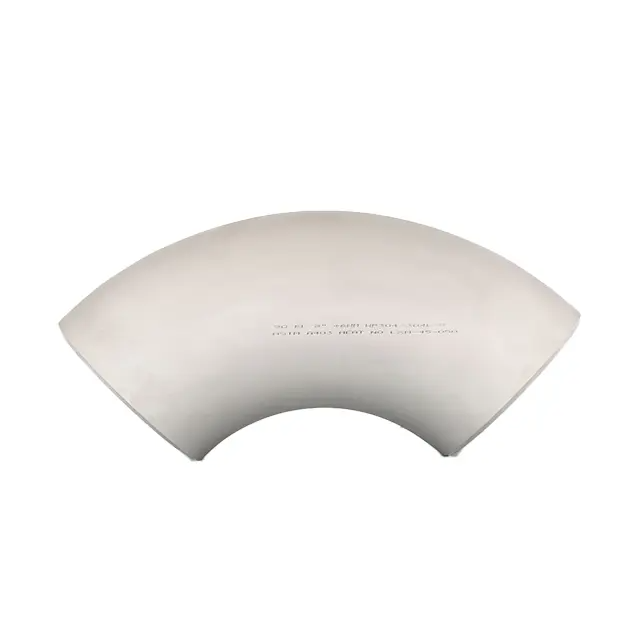

Elbows change fluid direction in piping. They come mainly in two types:
Long Radius (LR) Elbows: The radius of curvature is 1.5 times the pipe diameter. LR elbows offer smoother flow with less pressure drop and turbulence, making them ideal for heat exchangers where fluid dynamics matter.
Short Radius (SR) Elbows: The radius equals the pipe diameter. SR elbows save space but create more turbulence and pressure loss. Use them when space is limited and flow disruption is acceptable.
Elbows are available in 45°, 90°, and 180° angles. For example, a 90° LR elbow with a 4-inch diameter is common in heat exchanger piping.
Tees allow branching of the pipeline or connection of auxiliary equipment.
Equal Tees: All three ends have the same diameter. These are used when the branch size matches the main pipe size.
Reducing Tees: The branch outlet has a smaller diameter than the run pipe. Use these when the branch pipe or equipment has a smaller size.
Both types are welded to the main pipeline and provide a strong, leak-proof junction.
Reducers change pipe size gradually to control flow velocity and pressure.
Concentric Reducers: The centerlines of the large and small ends align. They are suitable for vertical piping or where symmetrical flow is needed.
Eccentric Reducers: The centerlines are offset, usually with the flat side on the bottom. This prevents air pockets in horizontal pipelines, which is critical in heat exchangers to maintain efficient fluid flow.

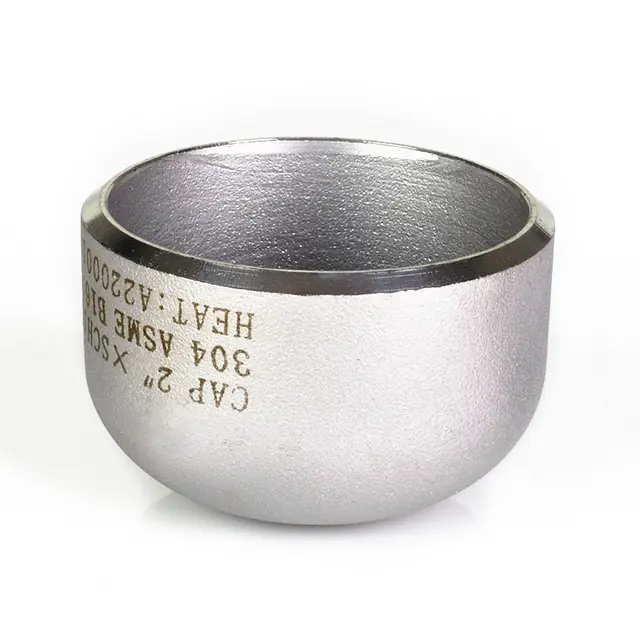

Caps: Used to close the end of a pipe or fitting. They provide a clean, welded seal.
Crosses: Allow four-way connections, useful in complex piping layouts.
Outlets (Olets): Branch connections to attach smaller pipes or instruments. They come in various types like weldolets and sockolets.
These fittings enhance system flexibility and access for maintenance or instrumentation.
Butt weld fittings in heat exchangers must meet strict material requirements to ensure safety, durability, and performance under varying operating conditions. Choosing the right material depends on the fluid type, temperature, pressure, and environmental factors.
Material | Main Features | Common Grades | Typical Applications |
|---|---|---|---|
Stainless steel | Strong and highly resistant to corrosion | 304, 316; ASTM A403 WP304/WP316 | Corrosive fluids, food processing, and hygienic systems |
Carbon steel | Strong, affordable, and widely available | ASTM A234 WPB | Moderate-temperature and pressure applications |
Alloy steel | Withstands high temperatures, pressure, and oxidation | ASTM A234 WP1, WP5, WP9, WP11, WP22, WP91 | Power plants, refineries, and severe heat exchanger service |
Fitting wall thickness normally matches the connected piping schedule. Schedule 10, 40, and 80 are common, but the correct thickness depends on design pressure, temperature, corrosion allowance, and applicable codes.
Standard | Scope | Purpose |
|---|---|---|
ASTM A403 | Stainless steel butt weld fittings | Defines material grades and mechanical properties |
ASTM A234 | Carbon and alloy steel butt weld fittings | Sets chemical, mechanical, and heat-treatment requirements |
ASME B16.9 | Factory-made butt weld fittings | Defines dimensions, tolerances, and fitting geometry |
MSS SP-75 | High-strength butt weld fittings | Covers fittings for high-pressure pipeline applications |
Selecting the correct material, grade, schedule, and standard helps ensure compatibility, strength, and reliable service.
Material choice depends heavily on operating conditions:
Temperature: Stainless steel suits moderate to high temperatures and resists scaling. Alloy steels handle very high temperatures (up to 1100°F or more) without losing strength.
Pressure: Carbon steel fittings handle pressures up to about 3000 psi in common schedules. Alloy steels cover higher pressure classes, sometimes up to 9000 psi.
Corrosion: Stainless steel and certain alloy steels resist corrosion better than carbon steel, crucial for aggressive fluids.
Cost: Carbon steel is more economical but may require protective coatings or treatments.
Selecting the correct material grade and thickness ensures safety, longevity, and efficient heat exchanger operation.
Butt weld fittings come in various sizes and thicknesses to match pipe systems in heat exchangers. Understanding their dimensional standards helps ensure proper fit and performance.
The size of butt weld fittings is based on Nominal Pipe Size (NPS). NPS is a standard that roughly corresponds to the pipe’s inside diameter. Common NPS values range from 1/2 inch up to 72 inches, covering small to very large pipelines.
Fittings thickness is defined by pipe schedules. Schedule numbers (e.g., 10, 40, 80, 160) indicate wall thickness. Lower schedules have thinner walls, suitable for lower pressure applications. Higher schedules have thicker walls for high-pressure or high-temperature service.
For example:
Schedule 10: Thin wall, often used in stainless steel fittings for lighter applications.
Schedule 40: Standard thickness, common in carbon steel piping.
Schedule 80: Thicker walls for higher pressure or mechanical strength.
Schedule 160: Very thick walls for extreme conditions.
Choosing the right schedule ensures the fitting can handle operating pressure and temperature safely.
Butt weld fittings follow industry standards for dimensions to guarantee interchangeability and quality.
ANSI B16.9: Specifies dimensions, tolerances, and marking for factory-made wrought butt weld fittings. It covers elbows, tees, reducers, and caps.
ANSI B36.10: Defines dimensions for welded and seamless wrought steel pipe, mainly carbon steel.
ANSI B36.19: Covers stainless steel pipe dimensions.
These standards ensure that fittings match pipes in size and shape, allowing proper welding and installation.
Thickness affects strength and weight. Butt weld fittings are manufactured to match pipe schedule thicknesses, including:
Schedule 10 and 10S: Light wall, used in low pressure or corrosion-resistant applications.
Schedule 40 and 40S: Most common for general purpose piping.
Schedule 80 and 80S: Heavier wall for higher pressure or mechanical stress.
Schedule 160 (XS): Extra strong, used in critical high-pressure systems.
The "S" suffix indicates stainless steel pipe schedules, which often have slightly different wall thicknesses than carbon steel.
Selecting the correct thickness depends on operating pressure, temperature, and fluid properties. Using a fitting thinner than the pipe can cause weak points, risking leaks or failure.
Producing reliable butt weld fittings requires more than shaping steel. Each fitting moves through a controlled sequence:
Material preparation → Hot forming → Heat treatment → End beveling → Final inspection
This process gives elbows, tees, reducers, and caps the strength, dimensions, and weld-ready ends required for heat exchanger systems.
Production begins with selected pipe sections, plates, or steel billets. The material is cut to size and heated until it can be formed without excessive cracking or deformation.
Cutting → Heating → Forming → Dimensional correction
Elbows are commonly produced by hot bending or forming over a die. Tees and reducers may be shaped through pressing, extrusion, or forging methods. The exact technique depends on the fitting type, material grade, wall thickness, and required dimensions.
Controlled forming also helps maintain consistent wall thickness and improves the material structure. This is important because heat exchanger fittings may experience pressure changes, vibration, and repeated thermal cycles.
Forming can introduce residual stress and alter the steel’s mechanical properties. Heat treatment is therefore selected according to the material specification and manufacturing method.
Normalizing refines the grain structure and improves toughness.
Quenching and tempering balance strength, hardness, and ductility.
Stress-relief treatment reduces internal stress left by forming or machining.
The general sequence is:
Formed fitting → Controlled heating → Holding period → Specified cooling
Correct temperature control helps the fitting maintain its shape and mechanical performance during welding and service.
After heat treatment and dimensional inspection, the fitting ends are machined for welding. Beveled ends create space for the weld metal and help achieve proper joint penetration.
End machining → Bevel inspection → Alignment check → Welding preparation
End preparation may follow ASME B16.25 or another applicable project standard. Bevel angle, root face, and other dimensions vary with wall thickness, joint design, and welding procedure. The installer should also confirm the required root gap through the approved welding procedure specification.
Before shipment, manufacturers should inspect the fitting’s bevel geometry, wall thickness, dimensions, surface condition, and material identification. Careful control at every stage supports accurate assembly, sound welds, and dependable heat exchanger operation.
Butt weld fittings offer several advantages in heat exchanger piping systems. Their design and manufacturing ensure strong, reliable, and cost-effective connections that help maintain system integrity and efficiency.
The main benefit of butt weld fittings is the strong joint they form. Welding fuses the fitting and pipe ends into a continuous metal structure. This creates a connection as strong as the pipe itself. Unlike threaded or socket weld fittings, butt welds withstand high pressure, temperature, and mechanical stress without loosening or leaking.
Because the weld penetrates fully through the pipe wall, it eliminates weak points. This strength is crucial in heat exchangers, where thermal cycling and pressure changes occur frequently. Proper welding techniques and beveled ends ensure consistent, defect-free joints.
Butt weld fittings match pipe schedules and dimensions precisely. This alignment creates a smooth internal surface with minimal flow disruption. For example, long radius elbows reduce pressure drops and turbulence compared to short radius elbows or threaded fittings.
Seamless flow improves heat exchanger efficiency by maintaining steady fluid velocity and reducing erosion or vibration risks. The smooth transitions also lower energy costs by minimizing pumping power.
Butt weld fittings often cost less over the system’s life despite higher initial welding labor. They require fewer maintenance interventions because weld joints don’t loosen or corrode as easily as threaded connections.
Additionally, butt weld fittings are available in larger sizes than socket weld fittings, providing flexibility for bigger heat exchanger systems. The availability of thin wall options like Schedule 10 in stainless steel reduces material costs without sacrificing performance.
Butt weld fittings come in various radii and thicknesses to suit specific piping layouts and operating conditions. You can select long radius elbows for gentle flow turns or short radius elbows where space is tight.
Schedules range from thin Schedule 10 to thick Schedule 160, allowing adaptation to pressure and temperature demands. This flexibility helps optimize system design for both performance and budget.
Butt weld fittings play a crucial role in heat exchanger piping systems. They help manage fluid flow, connect various components, and provide essential access points. Here’s how they function in these systems:
One of the primary functions of butt weld fittings is to change the direction of fluid flow. Elbows, such as long radius and short radius types, redirect fluids smoothly or sharply depending on space and flow requirements. For example, a 90° long radius elbow gently turns fluid, minimizing pressure loss and turbulence.
Tees allow the pipeline to branch off, directing fluid to different parts of the system or auxiliary equipment. Equal tees split flow evenly, while reducing tees connect pipes of different sizes, managing flow volume efficiently.
Reducers, both concentric and eccentric, adjust pipe sizes gradually. This controls flow velocity and pressure, helping maintain system balance. Eccentric reducers prevent air pockets in horizontal pipes by offsetting the pipe centerlines, which is vital for heat exchanger efficiency.
Butt weld fittings provide secure connections between pipes and heat exchanger components. They allow easy integration of valves, pumps, and instrumentation by offering standardized connection points.
For example, outlets (like weldolets) enable smaller pipes or instruments to attach to main pipelines. Cross fittings connect four pipes, useful in complex piping networks. Caps seal pipe ends during maintenance or system modifications.
These fittings ensure tight, leak-proof joints capable of withstanding high pressure and temperature, which is essential for heat exchanger reliability.
Butt weld fittings also create access points for inspection, cleaning, or sampling. Branches formed by tees or outlets serve as takeoffs where instruments or auxiliary lines connect.
This accessibility allows operators to monitor fluid conditions or perform maintenance without disrupting the entire system. It improves operational flexibility and reduces downtime.
Tip: Use eccentric reducers in horizontal piping to prevent air pockets, ensuring efficient fluid flow and heat exchanger performance.
Proper maintenance and inspection of butt weld fittings ensure the longevity and safety of heat exchanger piping systems. These fittings face high pressure, temperature changes, and corrosive fluids, so regular checks help prevent failures and costly downtime.
Inspecting welds is critical to detect cracks, porosity, or incomplete fusion early. Common methods include:
Visual Inspection: The simplest method. Inspectors look for surface defects like cracks, undercuts, or weld spatter. It requires good lighting and trained personnel.
Radiographic Testing (RT): Uses X-rays or gamma rays to see inside the weld. It reveals internal flaws such as voids or inclusions invisible to the eye.
Ultrasonic Testing (UT): Sends high-frequency sound waves through the weld. Reflections indicate defects. UT is highly accurate and can be done on-site.
Magnetic Particle Testing (MT): Applies magnetic fields to detect surface and near-surface cracks in ferromagnetic materials.
Dye Penetrant Testing (PT): A dye is applied to the weld surface and seeps into cracks, making them visible under ultraviolet light.
Each method suits different situations depending on the fitting material, accessibility, and defect type.
Routine maintenance helps avoid unexpected failures. Key tips include:
Regular Cleaning: Remove dirt, scale, or deposits that may cause corrosion or obstruct inspections.
Proper Support: Ensure fittings and pipes are well supported to prevent undue stress and deformation.
Weld Repair: Address minor weld defects promptly to prevent crack propagation.
Lubrication: For fittings connected to moving parts or valves, maintain lubrication to reduce wear.
Monitor Operating Conditions: Avoid pressure surges or temperature spikes that exceed design limits.
Documentation: Keep detailed maintenance and inspection records for trend analysis and regulatory compliance.
Corrosion is a major threat to butt weld fittings, especially in heat exchangers handling aggressive fluids. Strategies to manage corrosion include:
Material Selection: Use corrosion-resistant alloys like stainless steel or appropriate coatings for carbon steel fittings.
Protective Coatings: Apply paint, epoxy, or galvanizing to exposed fittings.
Cathodic Protection: Employ sacrificial anodes or impressed current systems in some installations.
Inspection for Corrosion: Use ultrasonic thickness measurements to detect wall thinning.
Chemical Treatment: Control fluid chemistry to reduce corrosive effects.
Environmental Controls: Limit exposure to moisture, salts, or other corrosive agents.
Early detection and mitigation of corrosion extend the service life of fittings and prevent leaks or ruptures.
Tip: Schedule regular ultrasonic and radiographic inspections to catch weld defects early and maintain heat exchanger reliability.
Butt weld fittings come in various types and materials to optimize heat exchanger performance. Choosing the right fitting and material ensures durability and efficient fluid flow. Proper installation and maintenance prevent leaks and extend system life. Advances in manufacturing improve fitting strength and corrosion resistance. Huashang Steel offers high-quality butt weld fittings designed for reliability and cost-effectiveness, supporting long-lasting heat exchanger operations with superior material standards and precise fabrication. Trust Huashang Steel for fittings that deliver value and performance.
A: Butt Weld Fittings for Heat Exchangers connect pipes, change fluid flow direction, and provide access points, ensuring leak-proof, strong joints in the piping system.
A: They offer stronger, seamless joints that withstand high pressure and temperature, reducing leaks and maintenance costs compared to threaded fittings.
A: Material choice impacts corrosion resistance, temperature tolerance, and pressure handling, crucial for reliable heat exchanger operation.
A: Elbows (long and short radius), tees (equal and reducing), reducers (concentric and eccentric), caps, crosses, and outlets.
A: Regular inspections using ultrasonic or radiographic testing, cleaning, corrosion protection, and timely weld repairs ensure longevity and safety.
