How To Fabricate Heat Exchanger Components Step by Step

You fabricate heat exchanger components step by step. First, you look at project needs and process datasheets. Picking the right materials is very important. Many experts use carbon steel for strength. They use stainless steel to stop rust. Duplex stainless steel is used for more strength. Titanium is good for the sea. Copper alloys help with cooling. Nickel-based alloys work with strong chemicals. You must use the best ways to fabricate the parts. You also need to follow quality rules. Your design choices affect how well and how safe the process is.

Key Takeaways

• Read the process datasheets to know what the project needs. This helps you pick the best materials and design for your heat exchanger.

• Pick good materials to make the heat exchanger last longer and work better. Stainless steel and titanium do not rust easily and last a long time.

• Use rules like ASME and TEMA when you design and build. These rules help keep your heat exchanger safe and working well.

• Check the quality when you make the parts. Cutting, welding, and putting pieces together the right way stops leaks and helps it work better.

• Think about using additive manufacturing for hard designs. This way can save time, use less material, and help heat move better.

Define Project Requirements

Review Process Datasheet

You begin by gathering all the process details. The datasheet has the important numbers you need. It tells you about heat duty, temperatures, flow rates, and pressures. You see both operating and design pressure. It also shows the allowed pressure drop. These numbers help you pick the best way to make your heat exchanger. If you forget any number, your exchanger might not work right. Always check the datasheet closely before starting.

Here is a table with the main things to think about:

Set Performance and Safety Criteria

You need to set clear rules for how well and how safe your exchanger must be. Industry standards help you do this. TEMA gives you classes for different jobs. ASME makes rules for parts under pressure. ANSI helps update standards as things change. PED is for safety in the EU. CRN checks equipment for Canada. 3-A makes sure food and drug equipment can be cleaned well.

You use these rules to make sure your design is safe and works well. This keeps people and property safe. It also helps your heat exchanger last a long time.

Material Selection and Design

Choose Materials for Durability

You must pick the right materials before building heat exchanger parts. Good material choices help your equipment last longer and work better. Some materials can stop rust and damage from strong chemicals. For example, graphite works well with sulfuric and hydrochloric acids. Plastics like PVDF and polypropylene can handle harmful gases at lower temperatures. Ceramics such as silicon carbide do not wear down or rust from many fluids.

Here is a table that shows how different materials perform:

You should pick materials that fit your process needs. If you use materials that do not rust, you will have less maintenance. This also makes checking your equipment easier. Using higher-alloyed stainless steels or titanium helps stop pitting and crevice corrosion. This means your equipment lasts longer and costs less to fix. If you pick the wrong materials, your heat exchanger may not work well. It could lose heat faster and have more pressure drops.

Tip: Always make sure your materials work with non-destructive testing. This helps you check your equipment and plan repairs.

Design for Efficiency and Standards

You need to follow a careful design process to make good heat exchanger parts. The thermal design process helps you decide how to put tubes, plates, or fins together. This gives you the best heat transfer. Double pipe or hairpin exchangers are easy to clean and fix. Flat plate and fin designs help move heat in HVAC and refrigeration. Spiral heat exchangers help stop clogging and make heat transfer better.

Here is a table with important design features:

You must also follow world standards when making detailed designs and drawings. Standards like ASME, TEMA, PED, and API cover materials, design, testing, and welding. These rules help you build safe and strong equipment.

Note: Your detailed designs and drawings must follow all codes and standards. This keeps your heat exchanger safe and working well.

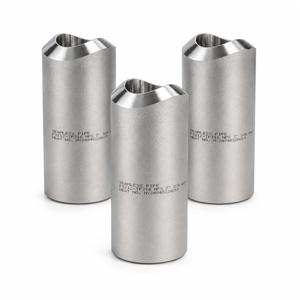

Fabricate Heat Exchanger Components

You make heat exchanger parts by following clear steps. Each step in making a heat exchanger affects how well it works. You must pay close attention to how you build and check the parts. This makes sure your equipment works well when you install it.

Cutting and Forming

You begin by cutting and shaping the materials for your heat exchanger. This step makes plates, tubes, and sheets the right size. You use different ways to do this, like plate cutting, rolling, drilling tube sheets, and precision machining. You must keep the sizes very close to what is needed. If you make mistakes, tubes may not line up right. Gaskets might not seal well. The table below shows how these things matter:

You must follow rules for building and checking quality. ASME and TEMA standards help you get the right sizes and keep your heat exchanger safe.

Machining and Welding

After cutting and forming, you move to machining and welding. Machining shapes parts to the right size and finish. You use CNC machines to get the sizes just right. The table below shows the usual size limits for different materials:

You pick welding methods based on the material and job. Weld overlay adds a strong layer to stop rust. Explosion-bonded cladding joins metals without heat damage. For making heat exchangers, you use these welding types: SMAW for fieldwork, GMAW for fast work inside, GTAW for careful joints, and SAW for big jobs with thick materials. You must check welds for problems. You use non-destructive testing to find cracks or weak spots. You follow rules to make sure your heat exchanger is safe to use.

Assembly and Surface Treatment

You put the heat exchanger together by fitting tubes, plates, and gaskets. You must do these things to stop leaks: clean the surfaces, press the gasket evenly, do not tighten too much, check after installing, and retighten if needed. When you finish building, you add surface treatments. These protect your heat exchanger from rust. You can use zinc-rich coatings, hybrid coatings, multi-layer coatings, metallic or ceramic coatings, polymer coatings like epoxy, and special treatments like phosphating or chromating. You pick the best coating for your process and where you use it. You must follow rules to make sure your heat exchanger lasts a long time.

Custom Vent Pipe Fabrication

You often need special vent pipes to let gas out safely and control pressure. You use vent pipes in many places, like LNG equipment, hydrogen systems, compressor stations, and other process equipment. Vent pipes help you control gas flow when you install and start up your system. You can change vent pipes by picking different sizes, lengths, nozzle types, and welding styles. You match these choices to your project. Making custom vent pipes helps your system follow safety rules and work well.

You finish by checking all connections and coatings. You test to make sure there are no leaks and everything works right. You follow all steps to make sure your heat exchanger is ready to use.

Tip: Write down every step you do when making a heat exchanger. This helps you keep track and makes installing and starting up easier.

Inspection and Testing

Pressure Testing

You must check if your heat exchanger can handle real use. Pressure testing is very important. You fill the unit with water or air. Then you raise the pressure higher than normal. This helps you find leaks or weak spots early. Hydrostatic testing uses water. Pneumatic testing uses air or gas. Always follow safety rules during these tests. You must look for leaks at all joints and connections. Pressure drop calculations show if flow matches your design. If there is a big difference, you may have a leak or blockage. You should check flow and pressure drop again after repairs. This keeps your equipment safe and working well.

Quality Inspection

You must check every part for problems before finishing. Quality inspection uses different methods. You start with visual checks and measuring sizes. These steps help you find cracks, dents, or wrong sizes. Next, you use non-destructive testing to look deeper. Ultrasonic testing checks thickness and welds. Radiographic testing finds hidden weld problems. Dye penetrant testing shows surface cracks. Eddy current testing finds flaws in tubes. Magnetic particle testing works for ferromagnetic parts. You also use flow and pressure drop analysis to make sure the system works right. Quality assurance checks look for corrosion, pitting, and cracks from metal fatigue. You may see erosion at inlet ends or baffle plates. Performance testing checks if the heat exchanger meets flow and pressure drop targets. The table below shows common inspection methods:

You should always write down your inspection and testing results. This helps you keep track of your work and makes future maintenance easier.

Additively Manufactured Heat Exchangers

3D Printing Methods

You can use 3D printing to make heat exchanger parts with special shapes. These shapes are hard to make with old methods. Laser powder bed fusion is a common way to do this. It uses a laser to melt metal powder one layer at a time. You can print with aluminum alloys and copper. These metals help move heat better. Additive manufacturing lets you join many parts into one. This means you do not need to put together as many pieces. That saves you time. You need to learn different 3D printing software to design these tricky shapes. You can make channels and fins that help heat move and stop leaks.

• Laser powder bed fusion makes metal parts very accurately.

• Aluminum and copper help heat move faster.

• Additive manufacturing lets you make hard shapes.

• You can join many parts into one piece.

Tip: Learning 3D printing software helps you design better heat exchangers.

Benefits and Considerations

You get many good things when you use additive manufacturing for heat exchangers. You can save money and time. For example, a company in the USA saved $500,000 each year by using printed cooling systems. You can get a 15% return on your money in the first year. This is because you need fewer workers to put parts together. You can cut your inventory in half since you print parts only when you need them. Metal 3D printed heat exchangers cost between $2,000 and $15,000 each. You can get test parts in 2 to 4 weeks. You can get finished parts in 4 to 8 weeks. This is faster than old ways of making them. You pay more at the start, but you save weight and work better. You get your money back in one or two years.

There are some problems to think about. Picking the right metal can be hard. You need metals that move heat and stay strong. Sometimes, you cannot make the inside smooth because the channels are too small. It can be hard to clean out leftover powder inside the part. The size may not always be right, especially for small pieces. Thin walls might not stick well and can leak. Rough surfaces can block channels and change how fluids move. Making tiny channels smaller than 500 micrometers is tough. Heat can bend parts and cause stress inside.

Here is a table that compares additively made and traditional heat exchangers:

Note: You should think about the good and bad sides before picking additive manufacturing for your heat exchanger.

You make heat exchanger parts by following simple steps. First, know what your project needs. Next, pick the best materials for the job. Then, design the parts to work well. Cut, weld, and put the pieces together with care. Check and test each part to keep things safe. Always keep your work area tidy and wear gloves. Store all parts in the right place. Follow API 660 and TEMA rules to make sure everything works well. Try custom designs and 3D printing to fix problems. Use these ideas to build heat exchangers that are strong and safe.

FAQ

What materials work best for heat exchangers?

You can use stainless steel, titanium, copper alloys, and nickel-based alloys. Each material resists corrosion and handles different temperatures. Pick the one that fits your process needs.

How do you test a heat exchanger for leaks?

You fill the unit with water or air. Then you raise the pressure above normal. Look for leaks at joints and connections. Hydrostatic and pneumatic tests help you find weak spots.

Why do you need surface treatments?

Surface treatments protect your heat exchanger from rust and damage. You can use coatings like zinc-rich, epoxy, or ceramic. These help your equipment last longer and work better.

Can you use 3D printing for heat exchanger parts?

Yes, you can use 3D printing to make complex shapes. This method saves time and reduces waste. You can print with metals like aluminum and copper for better heat transfer.

What standards should you follow during fabrication?

You should follow ASME, TEMA, PED, and API standards. These rules help you build safe and strong heat exchangers. Always check your design and fabrication steps against these standards.
