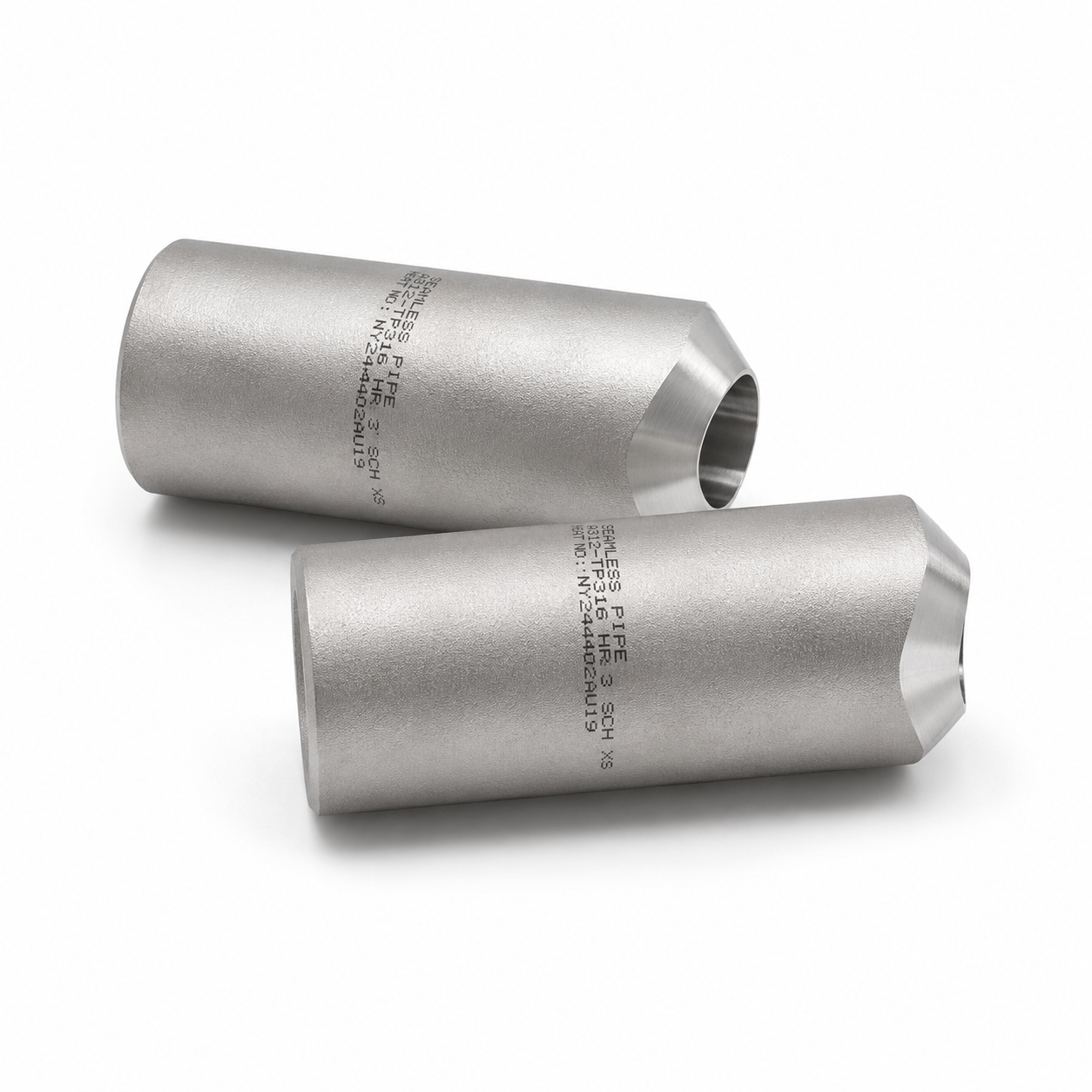

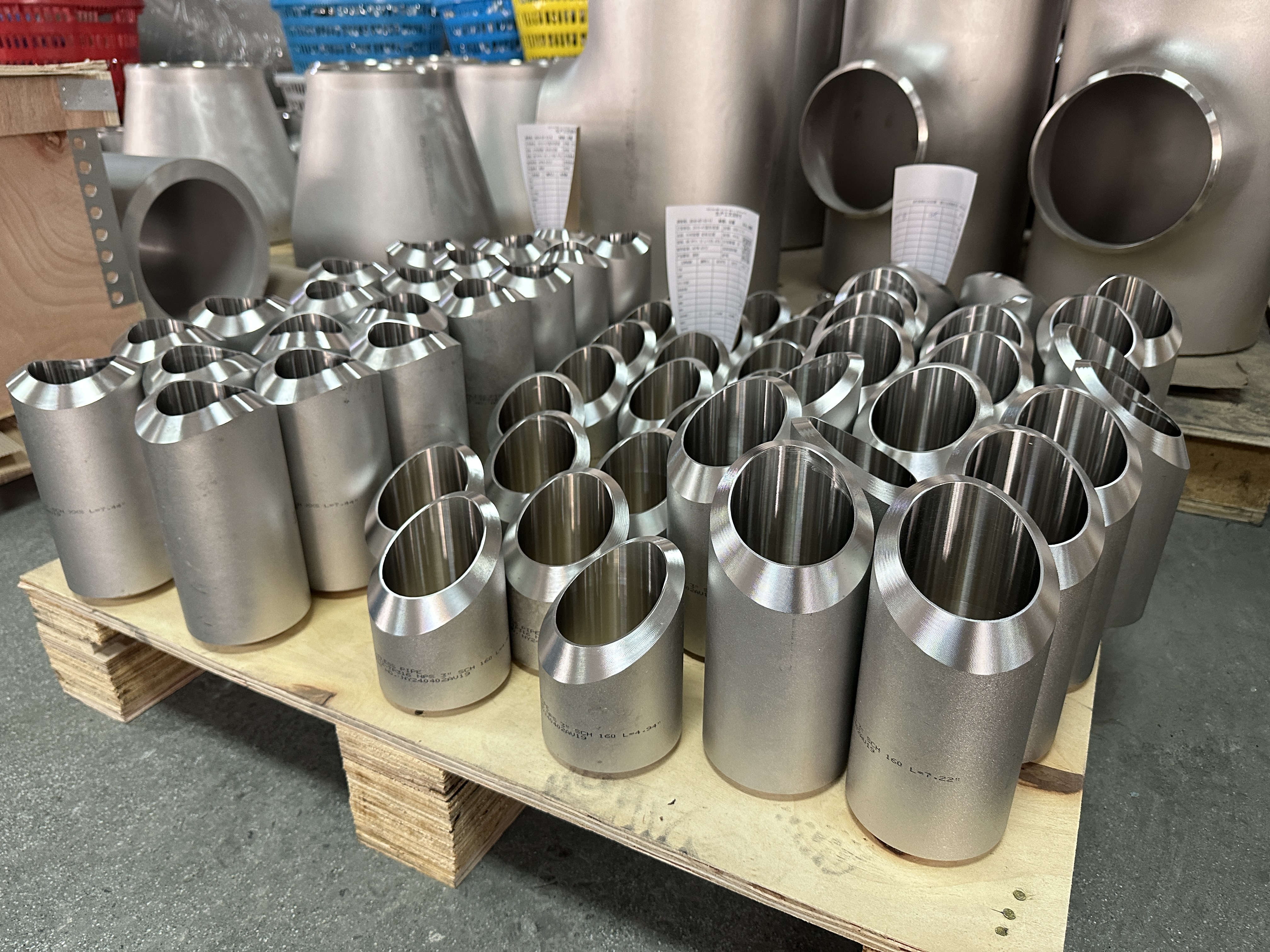

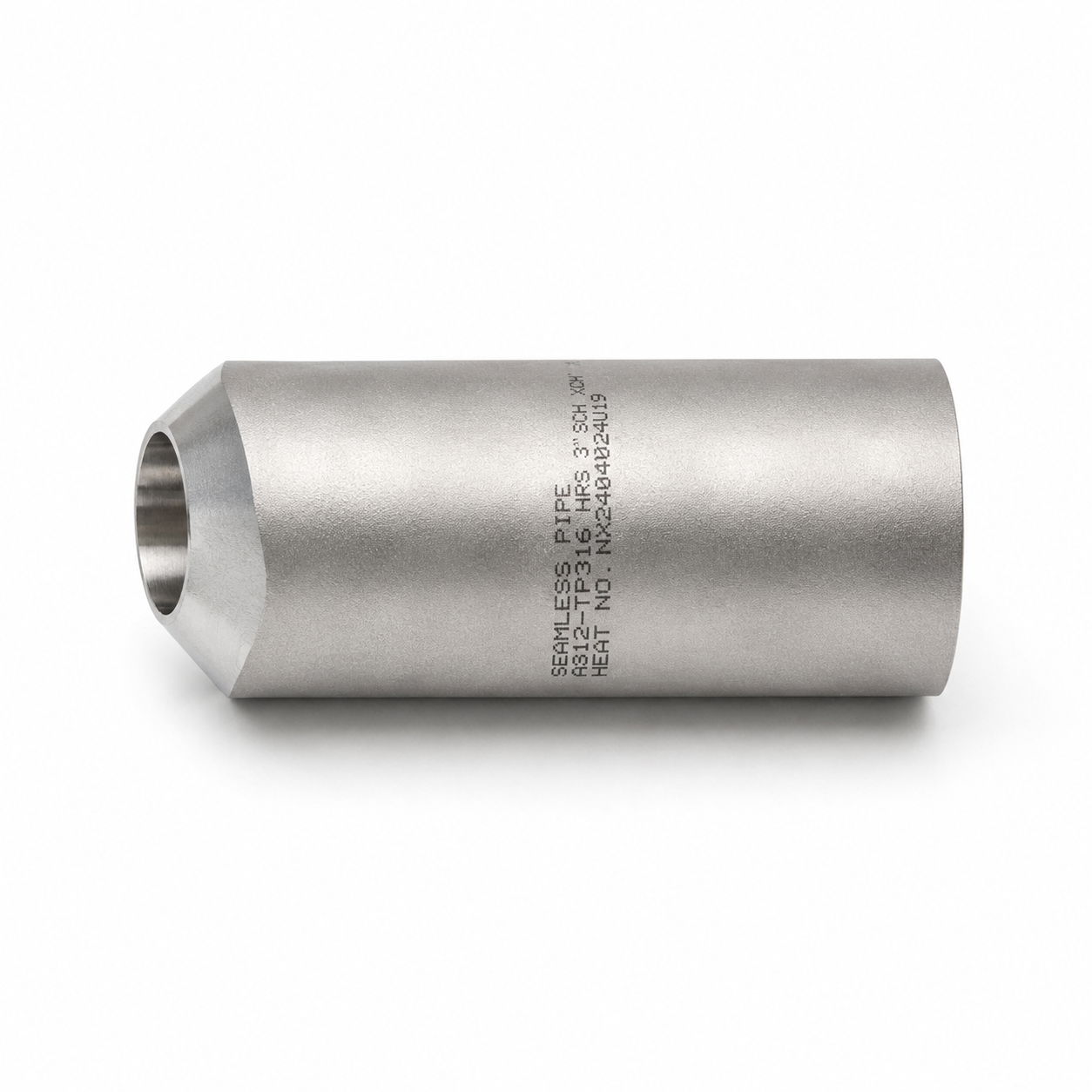

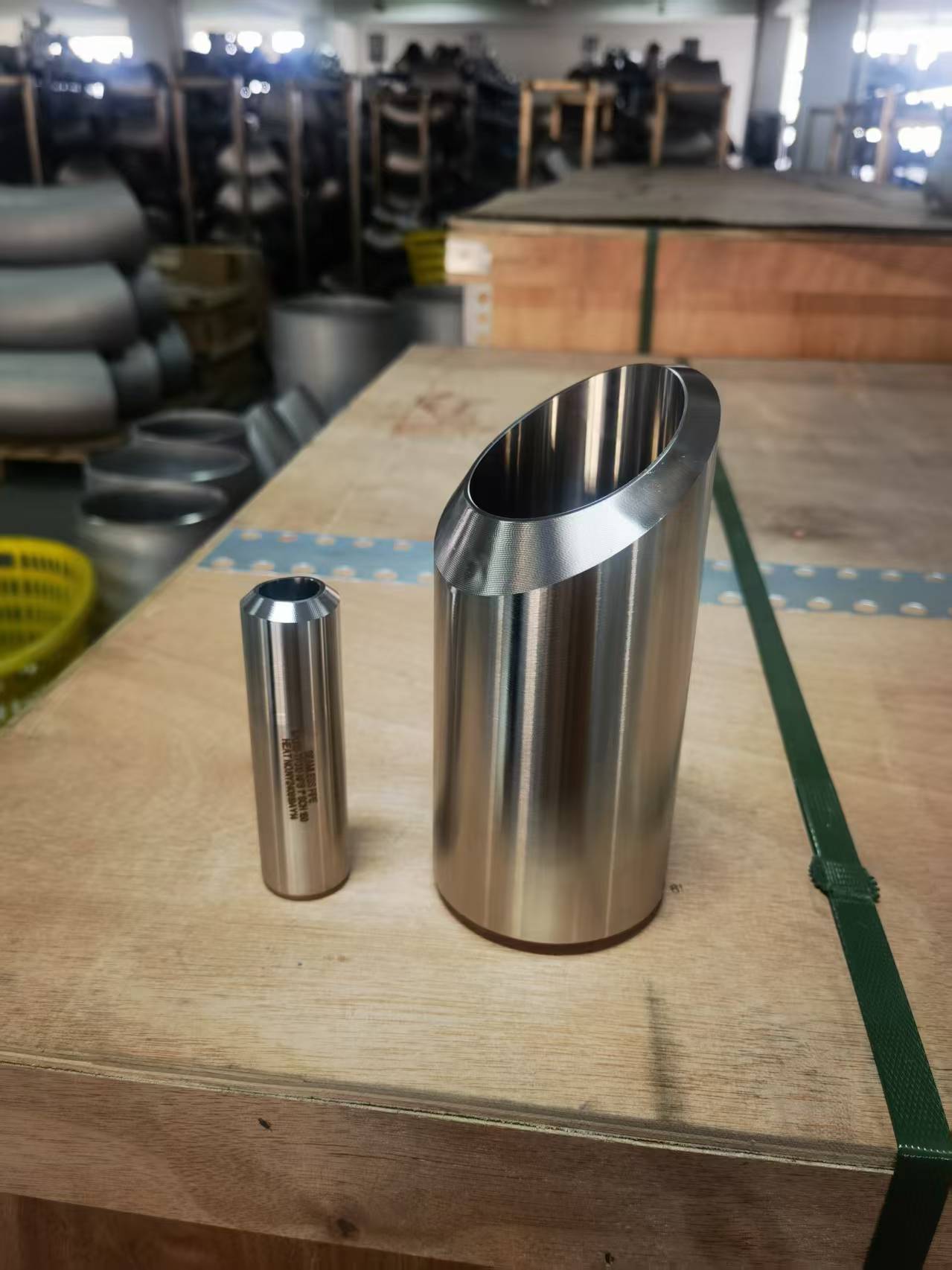

Heat Exchanger Water Nozzle, also referred to as Cooling Water Nozzle Assembly or Water Header Nozzle, is a fabricated piping component designed for inlet and outlet connections in cooling water systems, heat exchangers, and industrial process equipment. As a critical interface between core process units and external piping networks, it supports stable fluid delivery and pressure containment across diverse operating environments. For industrial procurement teams, selecting properly specified water nozzles directly impacts system installation efficiency, long-term operation stability, and maintenance costs. These nozzles serve enterprise customers across energy, chemical, petrochemical, and manufacturing sectors with configurable design options.
Item | Range |
|---|---|
Diameter | 1/2" – 48" |
Wall Thickness | SCH 5S – SCH XXS |
Length | According to drawing |
End Type | Bevel End / Plain End / Flanged End |
Design Pressure | Up to 350 Bar |
Design Temperature | -196°C to 650°C |
This broad parameter range allows the nozzles to adapt to both small-scale process units and large-scale industrial systems. The design pressure and temperature ratings support deployment in extreme conditions, from cryogenic processing to high-temperature industrial heat transfer applications.
Material selection is a core consideration for industrial procurement and engineering teams, as it directly impacts component service lifespan, corrosion resistance, and compatibility with different process media and operating environments. Available construction materials for these water nozzles include:
Austenitic Stainless Steel
Super Stainless Steel
Duplex Steel
Nickel Alloy
Titanium & Titanium Alloy
Each material grade is suited for distinct operating conditions: austenitic stainless steel options fit general cooling water services and moderate corrosion environments, while super stainless steel, duplex steel, nickel alloys, and titanium materials support applications with higher corrosion, extreme temperature, or high-pressure demands. This broad material portfolio allows teams to select the optimal option based on specific project working conditions.
 |  |  |
As a core piping connection component, the water nozzle is permanently welded directly to equipment headers, manifolds, pressure vessels, or heat exchanger shells. It creates a secure, pressure-rated connection between equipment bodies and external piping systems, supporting stable, leak-free long-term operation under full rated working conditions. Properly fabricated nozzles also help reduce flow turbulence at equipment inlet and outlet points, supporting consistent system performance.

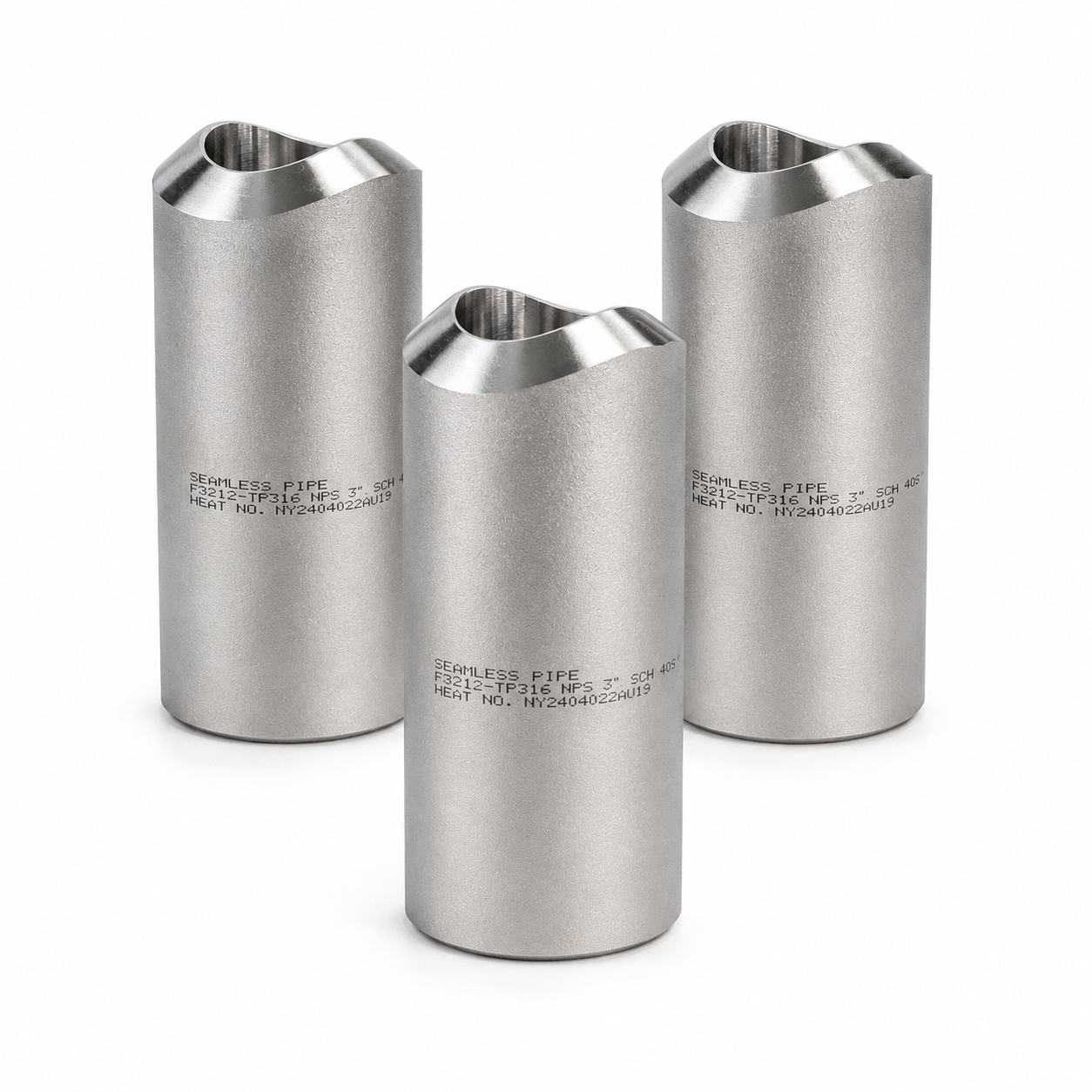

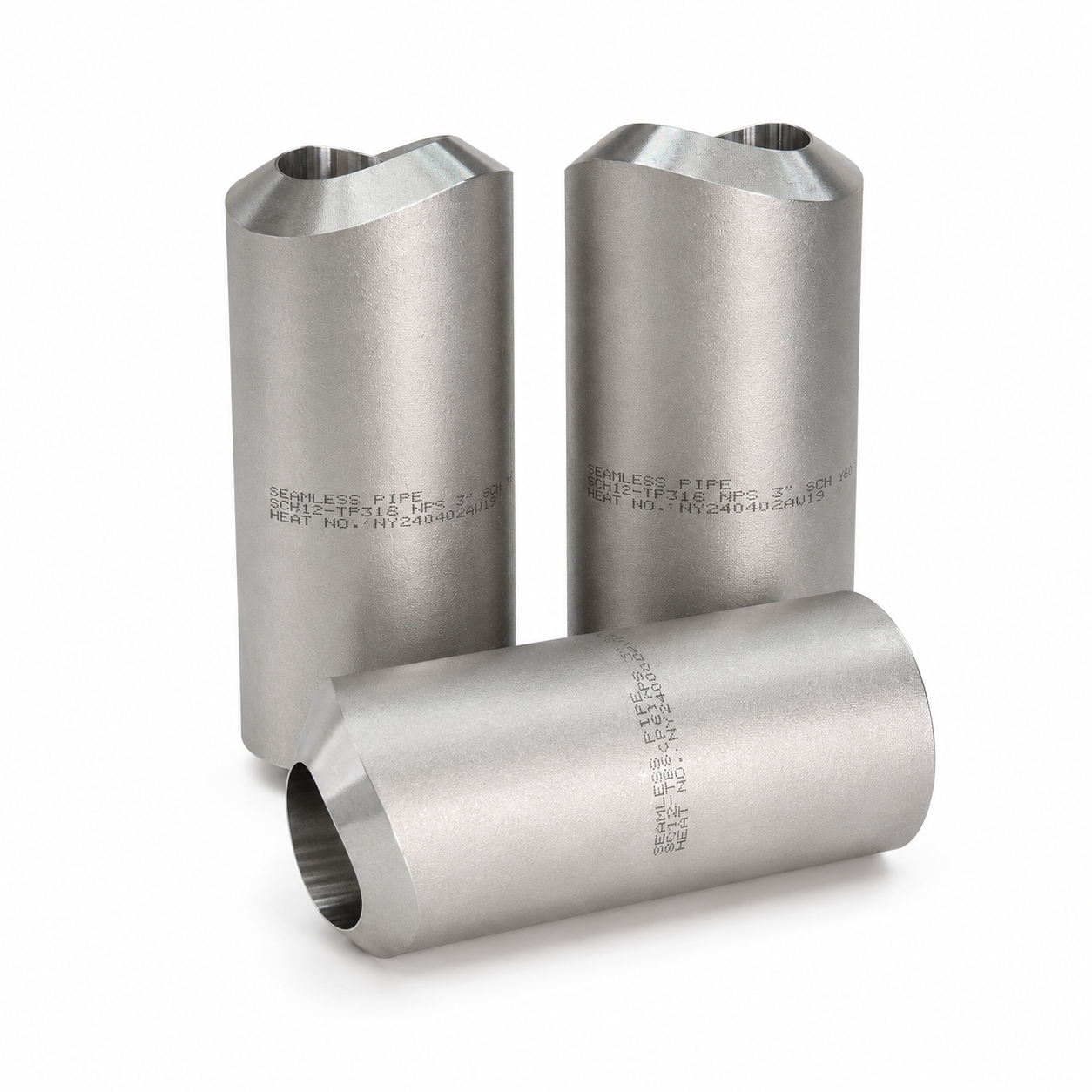

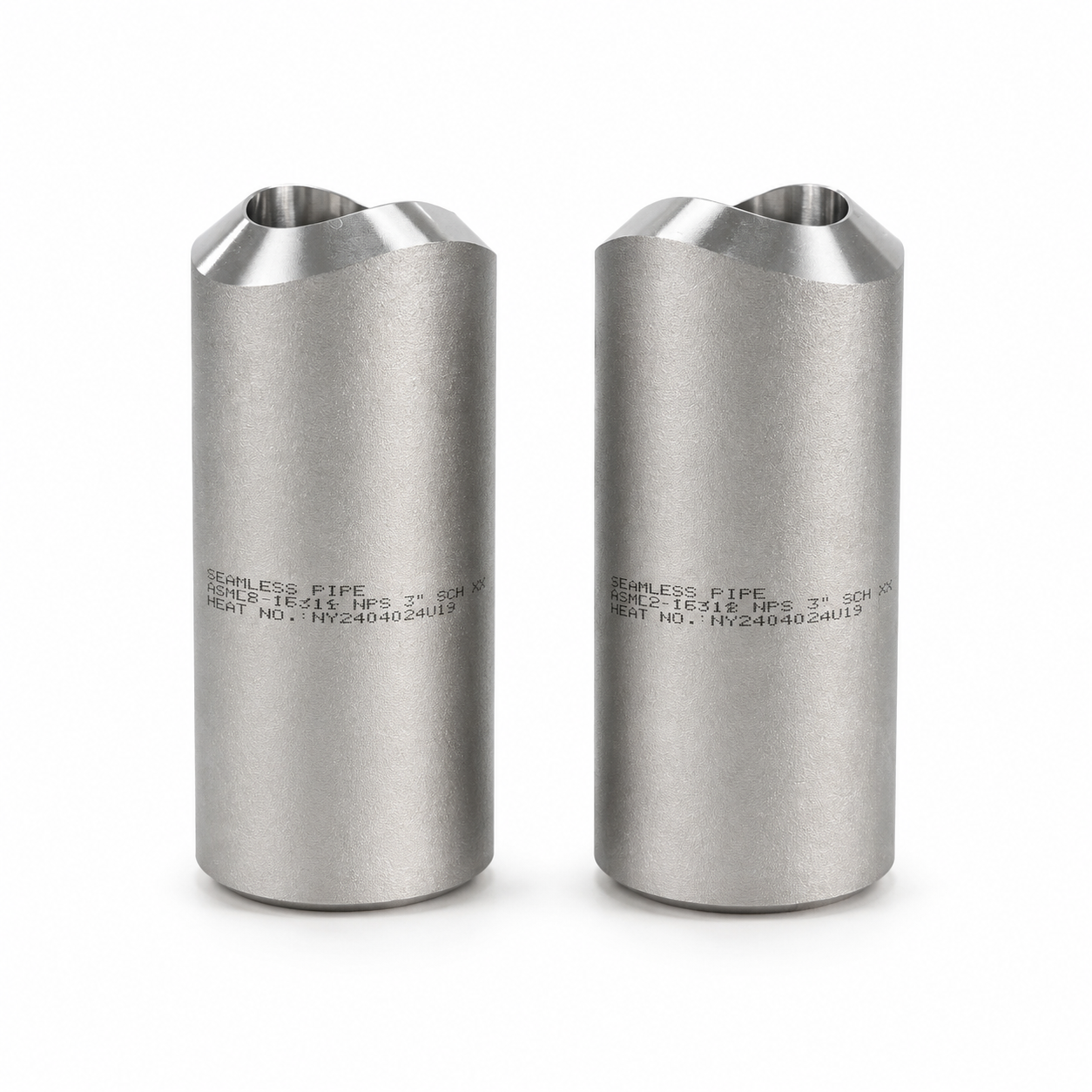

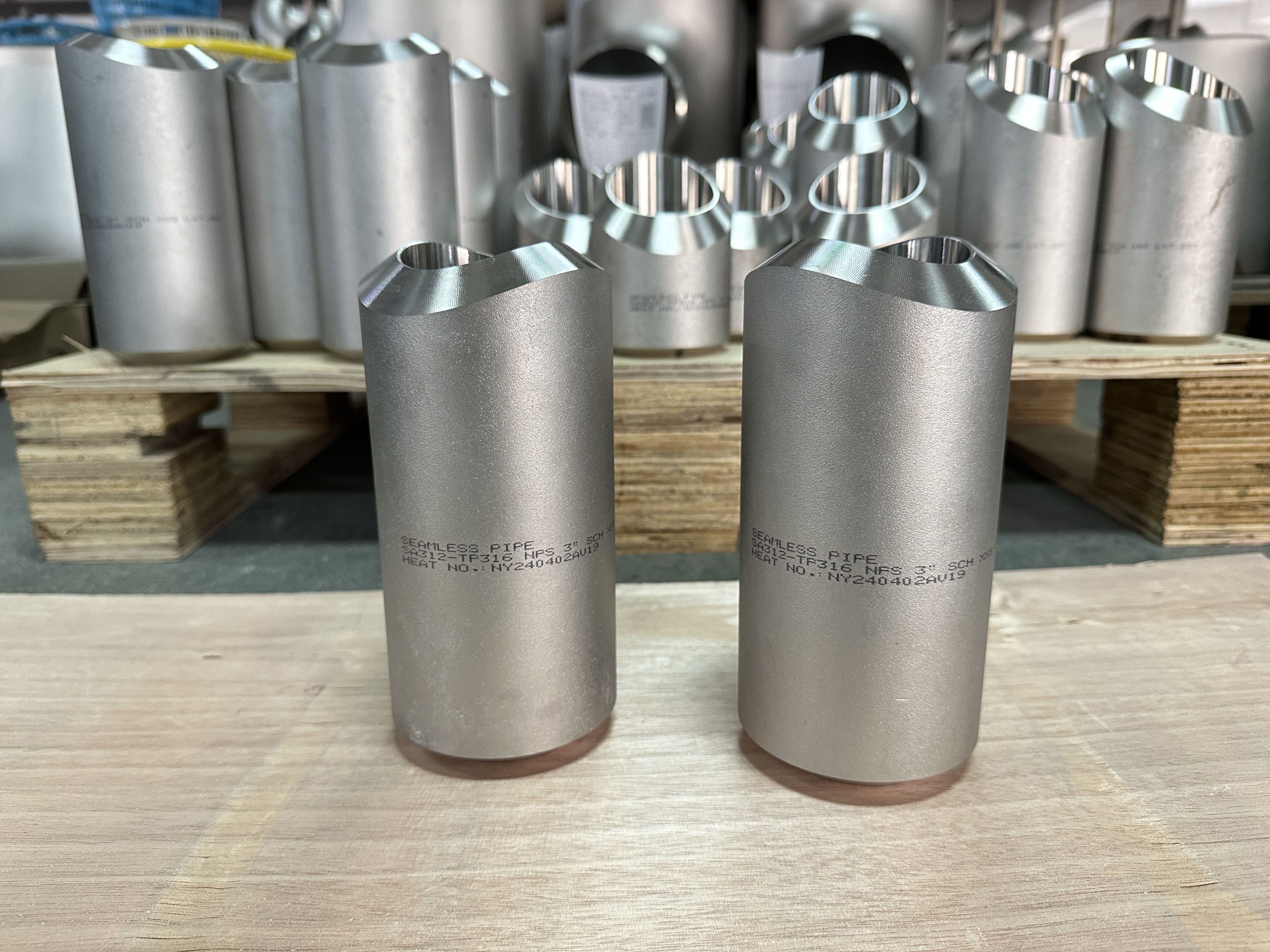

Custom water nozzle fabrication is available to accommodate unique project requirements and non-standard equipment interfaces. Nozzles can be manufactured strictly according to customer drawings and specified pressure requirements, with end connection options including beveled ends, fish-mouth ends, flanged ends, or custom machined connection profiles. This design flexibility ensures full compatibility with different equipment interface standards, reducing on-site modification needs and lowering overall installation complexity for commercial users.
 |  |  |
 |  |  |
 |  |  |
These water nozzles are deployed across a wide range of industrial applications, supporting fluid connection needs in heat transfer, energy processing, and general manufacturing systems.
For heat transfer equipment, MCHE water nozzles provide reliable fluid connections for microchannel heat exchangers (MCHE) and printed circuit heat exchangers (PCHE). They also support industrial heat exchangers, cooling water distribution systems, gas compressor coolers and intercoolers, feed water heaters, kettle reboilers, condensers, and waste heat recovery units (WHRU), maintaining consistent flow performance for efficient heat exchange. These components are engineered to match the flow and pressure requirements of each heat transfer system type.
Hydrogen cooling water nozzles are widely used in hydrogen cooling systems, hydrogen refueling stations, and fuel cell cooling systems to support clean energy infrastructure. The nozzles also serve LNG equipment, LNG chillers and regasification systems, and CO₂ cooling equipment, with material and pressure ratings compatible with cryogenic and high-pressure gas processing conditions. The cryogenic temperature rating of select material grades makes these nozzles suitable for low-temperature liquefaction and regasification processes.
Pressure vessel water nozzles act as standard connection components for pressure vessels, process equipment, and fluid distribution systems. They also support general industrial process heat exchangers and various fluid handling units, delivering consistent connection performance across commercial operations. They can be integrated into new system builds or used as replacement parts for existing industrial facilities.
A heat exchanger water nozzle is a fabricated piping component used as an inlet or outlet connection for cooling water systems, heat exchangers, and industrial process equipment. It is welded to equipment shells or headers to create a secure interface between process units and external piping, and is a standard component in fluid distribution and heat transfer systems across multiple industrial sectors.
Standard end types for water header nozzles include bevel end, plain end, and flanged end. Custom options such as fish-mouth ends and custom machined connections are also available, produced strictly to customer drawing specifications.
Cooling water nozzle assemblies can be constructed from austenitic stainless steel, super stainless steel, duplex steel, nickel alloy, and titanium & titanium alloy. Material selection is based on process media properties, operating temperature ranges, and corrosion resistance requirements of the target application.
Yes, custom water nozzle fabrication is offered to match specific project designs and pressure requirements. Production follows customer-provided drawings, with configurable dimensions, end types, and material grades to align with unique equipment and system integration needs.
