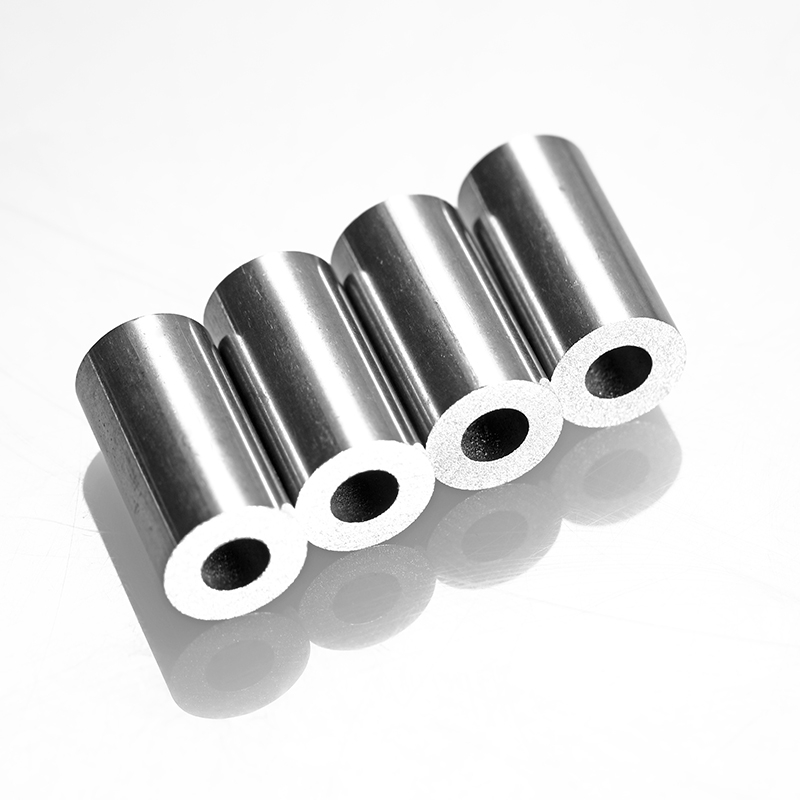

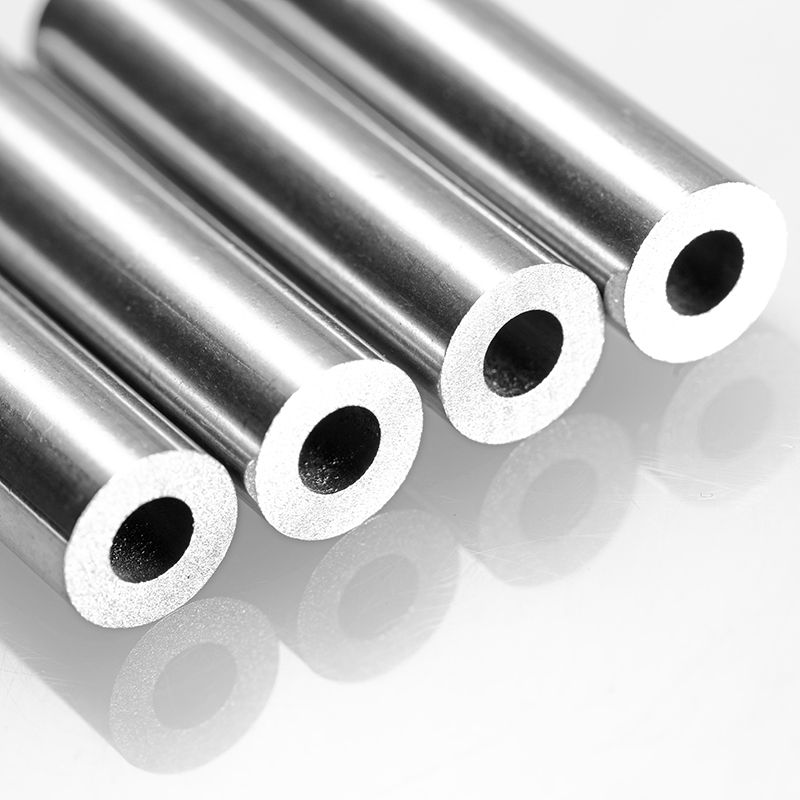

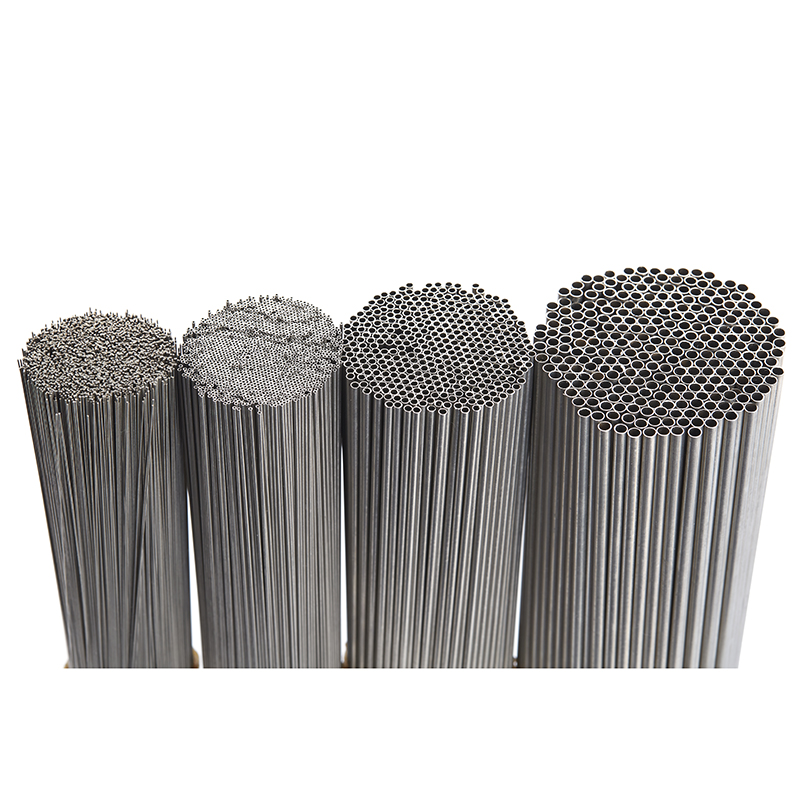

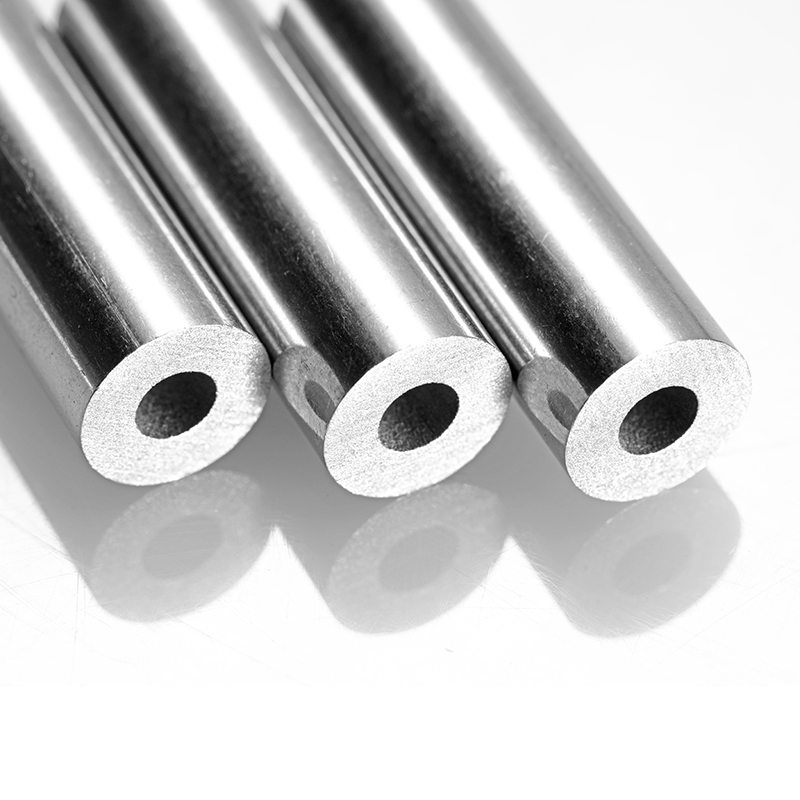

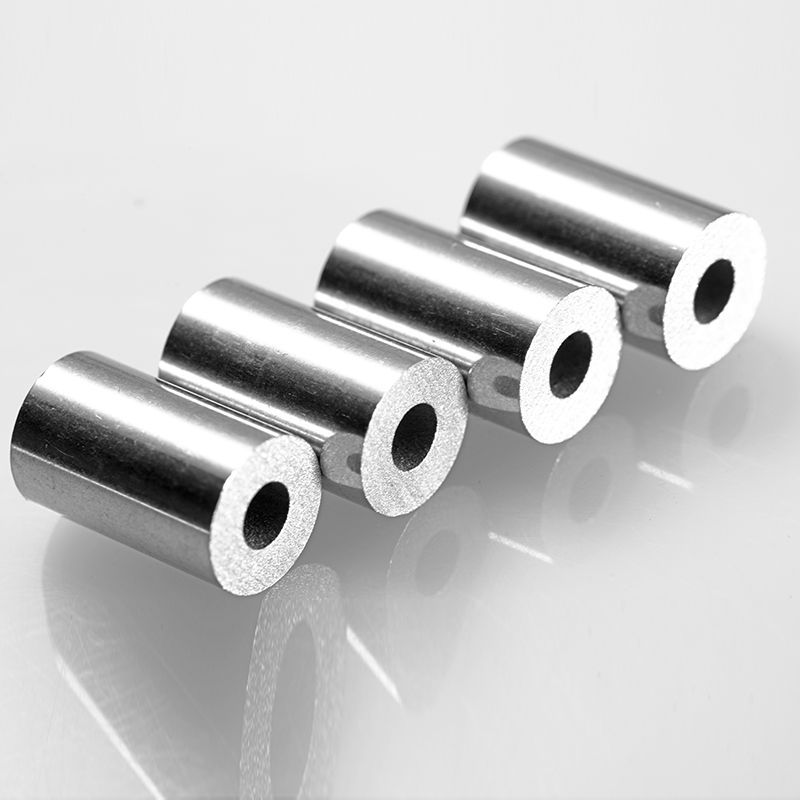

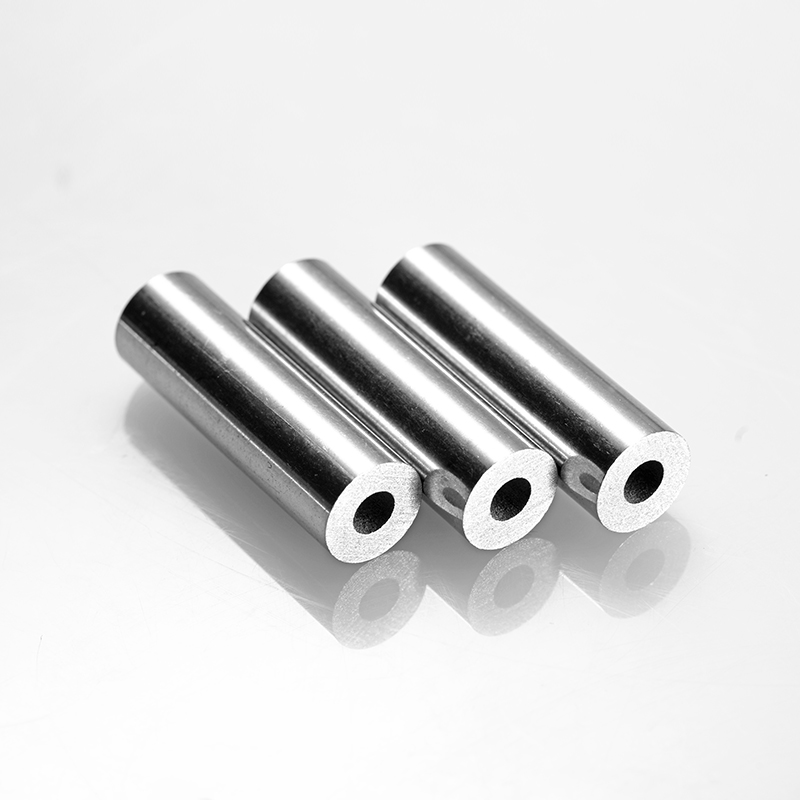

Ultra thick walled seamless pipes belong to small caliber non-standard pipes, manufactured by special processing techniques such as precision rolling and drawing.
 |  |  |  |
This type of pipe has excellent load-bearing performance and high strength advantages, and can operate stably in high-pressure environments, especially suitable for special application scenarios such as natural gas transportation and oil transportation that require strict pressure bearing capacity and strength of tubes.
 |  |  |  |
| Application |
1. Hydraulic power system: suitable for key components such as high-pressure oil pipes in heavy-duty trucks
2. Pneumatic power system: provides stable pneumatic power support for various equipment.
3. High pressure fuel injection pipe: specifically designed for performance testing of diesel engines and fuel injection pumps
4. High pressure pipelines for automobiles: meet the demand for high-pressure transmission during the operation of automobiles.
 |  |  |  |
5. In the field of automobile manufacturing, the strength of pipes is crucial. Thick walled seamless pipes are widely used in automotive exhaust, intake, brake oil pipes, joints, cooling delivery, ignition, fuel injection, air conditioning systems, as well as sensor probes, pressure pipelines, high-pressure fuel rail pipelines and other parts due to their excellent performance. Its peak working pressure can reach 300 Mpa, which can not only withstand extreme working conditions, but also effectively improve engine fuel efficiency and help save energy and reduce emissions.
6. Manufacturing of automotive and motorcycle parts: providing reliable pipe solutions for component production.
 |  |  |  |
| Specifications Of Ultra Thick Wall Seamless Tube |
OD: 3.0--50MM
WT: 0.5-10
LENGTH: ≦12M
Condition
Heat Treatment: Annealing/Bright annealing /Solution Treated
Hardness: Cold Hardened, Half hardened ,1/4 Hardened, Soft Ect
Surface: Passivated, Bright Annealing, Polished, Cleaned, Sanitary level, Etc
Standard stainless steel material:
ASTM A269, ASTM A213, EN 10305-1, ASTM A270, EN 10216-5 TC1, NACE MR0175/ISO 15156, OD< 6mm The tolerence acc to ASTM A632
Standard Duplex steel material: ASTM A789, ASTM A790
Standard Titanium & Titanium alloy: ASTM B338, ASTM B861, ASTM F67, DIN 17861, JIS H4637
Standard Nickel alloy: SAE AMS 5589, SAE AMS 5590, ASTM B983, ASTM B622, ASTM B163, ASTM A213, DIN 17751, ISO 6207
Material:
AUSTENITIC STAINLESS STEEL
TP304, TP304L, TP304H, TP304LN, TP316/TP316L, TP316H, TP316Ti, TP316LN, TP321, TP321H, TP317, TP317L, TP347, TP347H, TP310S, TP310H, TP904L, 254Mo. S30432, S31042, N08367, 253Ma S30815, S38810
Duplex & Super Duplex Steel: S31500,S32101,S32003,S32304,S31803,S32205,S32750,S32760
Corrosion resistant alloys:
N08800, N08810, N08825, N08020, N06600, N06690, N10276, N06625
Nickel based alloys:
GH3030 (Ni80Cr20) GH3039, GH3536 (Hastelloy X), GH4090 (N07090), GH4141 (N07041, Rene 41), GH4145 (N07750), GH4169 (N07718)
Soft magnetic alloys: 1J18, 1J30, 1J36 (UNS K93600), 1J46 (UNS K94490, Alloy 1), 1J48 (UNS K94840, Alloy 2), 1J77 (UNS N14076, Alloy 3), 1J85 (UNS N14080, Alloy 4)
Nickel: Ni 200 (N02200, N6),Ni 201 (N02201, N5)
Titanium: TA1 (Gr.1),TA2 (Gr.2),TA3
Titanium alloys: TA9 /TA9-1，TA10，TC4 (Gr.5)
