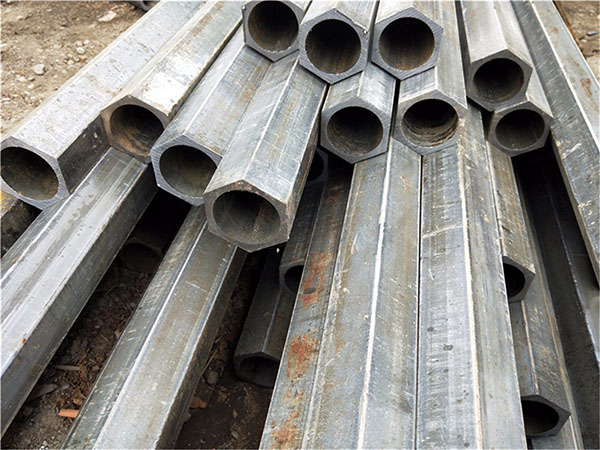

Hex steel tube, also recognized as hexagonal steel tubing or hexagon bar, represents a specialized category of industrial steel products featuring a precisely formed regular hexagonal cross-section. At Huashang Steel, we manufacture premium hex steel tubes with exacting tolerances to meet the demanding requirements of modern industrial applications.
The nominal size of hex steel tubing is determined by the opposite side length (S), which serves as the critical dimension for engineering calculations and fitment specifications. Our manufacturing capabilities span multiple high-performance alloys and material grades:
Stainless Steel Hex Tubes:
304/304L Series (1.4301, 1.4306, 1.4307): Excellent corrosion resistance for general industrial use
316/316L Series (1.4401, 1.4404, 1.4435): Superior resistance to chlorides and marine environments
321/347 Series (1.4541, 1.4550): Stabilized grades for high-temperature applications
Carbon and Alloy Steel Hex Tubes:
Grade 20 Carbon Steel: Cost-effective solution for standard mechanical applications
Grade 45 Carbon Steel: Medium carbon content providing enhanced strength and hardness
16 Manganese Alloy: Improved toughness and wear resistance for demanding applications
Duplex and Super Duplex Steel:
S31803/S32205 (1.4462): Balanced strength and corrosion resistance
S32750 (2507): Extreme environments requiring superior pitting resistance
S32760 (1.4501): Maximum performance in severe corrosive conditions
Hex steel tubes offer unique advantages in structural and mechanical engineering:
Load-Bearing Structures: Our hex tubes provide exceptional performance in building frameworks, bridges, transmission towers, and industrial support structures where torsional rigidity and uniform stress distribution are critical.
Mechanical Components: The hexagonal profile enables efficient power transmission and precise torque transfer, making these tubes ideal for drive shafts, coupling assemblies, and rotational components.
Fastener Manufacturing: Hollow hexagonal bars serve as premium stock material for producing high-strength nuts, specialized bolts, and custom mechanical fasteners requiring precise dimensional control.
Material Handling Equipment: Applied extensively in lifting machinery, conveyor systems, and transportation equipment where strength-to-weight ratio optimization is essential.

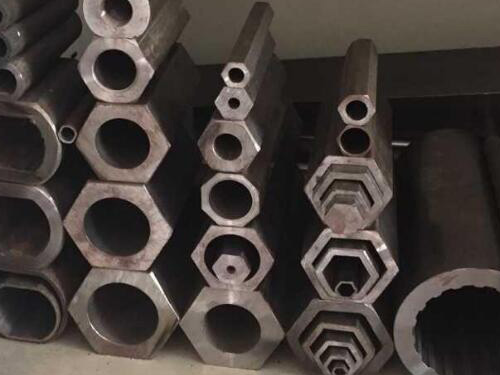

Special-shaped pipes encompass a diverse range of non-circular cross-sectional profiles designed to meet specific engineering challenges. Huashang Steel's advanced manufacturing capabilities deliver precision-formed special-shaped tubes in virtually any configuration.
Standard Geometric Profiles:
Oval/Elliptical Tubes: Streamlined profiles for fluid dynamics applications
Triangular Sections: Three-point contact designs for specialized fixtures
Square and Rectangular Tubes: Structural framing and architectural applications
Hexagonal Profiles: Discussed extensively in the hex steel tube section above
Advanced Specialty Shapes:
Diamond-Shaped Tubes: Aesthetic architectural elements with structural integrity
U-Channel Sections: Edge protection and reinforcement applications
D-Profile Tubes: Space-efficient designs for compact installations
Multi-Lobe Configurations: Five-petal, octagonal, and custom geometric forms
Asymmetric Profiles: Unequal-sided hexagons for specialized mechanical interfaces
Engineered Surface Modifications:
Corrugated Tubing: Enhanced flexibility and surface area for heat exchange
Tapered Sections: Progressive diameter reduction for specialized connections
Variable Cross-Section Tubes: Engineered stress distribution along length
Our special-shaped pipe manufacturing utilizes the full spectrum of advanced materials:
Austenitic Stainless Steel Options: 304, 304L, 304H, 316L, 316Ti, 321, 321H, 347, 347H, 310S, 309S and specialized grades for specific environmental conditions.
Super Austenitic Grades: 904L (N08904), 254SMo (S31254), and 6Mo alloys (N08367) for extreme corrosion resistance in chemical processing environments.
Nickel-Based Superalloys: Complete range including Alloy 625, 718, 800H/HT, 825, C276, C22, and specialized grades for petrochemical, aerospace, and high-temperature applications.
Titanium and Titanium Alloys: Grades 1-12 including commercial pure titanium and Ti-6Al-4V for aerospace, marine, and biomedical applications.
Our seamless manufacturing process produces superior integrity tubes without longitudinal welds, offering:
Enhanced Structural Integrity: No weld seam weak points
Pressure Capability: Higher burst and working pressure ratings
Corrosion Resistance: Uniform metallurgical properties throughout
Critical Applications: Ideal for high-pressure systems, hydraulic circuits, and safety-critical installations
Production Capabilities:
Size range: 4mm to 325mm outer dimensions
Wall thickness: 0.5mm to 40mm
Length: Up to 18 meters in single lengths
Tolerance class: Precision-grade dimensional control
Advanced TIG and laser welding processes create cost-effective solutions for applications including:
Architectural Elements: Decorative and structural building components
Furniture Frames: Lightweight yet strong construction
Automotive Components: Chassis reinforcement and body structures
Industrial Enclosures: Equipment housing and protective barriers
Every Huashang Steel hex tube and special-shaped pipe undergoes comprehensive quality verification:
PMI Testing: Positive Material Identification ensuring alloy composition accuracy
Chemical Analysis: Full spectroscopic verification against international standards
Mechanical Testing: Tensile, yield, elongation, and hardness verification
Optical Measurement: Precision verification of cross-sectional geometry
Wall Thickness Analysis: Ultrasonic and caliper verification
Length and Straightness: Compliance with specified tolerances
Ultrasonic Examination: Internal defect detection
Eddy Current Testing: Surface and near-surface flaw identification
Hydrostatic Pressure Testing: Leak integrity verification
Radiographic Inspection: Weld quality assessment for welded products
EN 10204 3.1 Certificates: Material test reports with full traceability
Third-Party Inspection: SGS, TUV, BV, DNV-GL, LR, ABS certification available
Heat Treatment Records: Complete thermal processing documentation
Dimensional Reports: Comprehensive measurement data packages
Huashang Steel provides complete fabrication solutions beyond raw tube production:
Precision Machining Operations:
CNC Machining: Complex profile modifications and feature addition
Cutting Services: Precision length cutting to specification
Tube Bending: Custom radius formation while maintaining wall integrity
End Forming: Flaring, necking, threading, and chamfering operations
Surface Treatment Options:
Mechanical Polishing: Mirror finish to 2B, BA, and 8K specifications
Passivation: Enhanced corrosion resistance through chemical treatment
Electropolishing: Ultra-clean surfaces for sanitary applications
Coating Application: Custom protective and decorative finishes
Assembly and Integration:
Laser Welding: Precision joining for complex assemblies
Prefabricated Systems: Complete piping modules ready for installation
Custom Component Manufacturing: Machined parts per your drawings
Hex tubes and special profiles in titanium and nickel superalloys for landing gear, hydraulic systems, and structural components requiring exceptional strength-to-weight performance.
Precision capillary and special-shaped tubes in biocompatible materials for surgical instruments, implantable devices, and diagnostic equipment.
High-pressure hex tubing and special profiles for downhole tools, wellhead equipment, and process piping in corrosive sour gas environments.
Corrosion-resistant special-shaped tubes in exotic alloys for reactors, heat exchangers, and fluid handling systems with aggressive media.
High-temperature hex tubes and profiles for nuclear, thermal, and renewable energy systems requiring long-term reliability under extreme conditions.
Lightweight special-shaped sections for chassis components, fuel systems, and exhaust applications optimizing performance and efficiency.
Since our establishment in 2009, Huashang Steel has evolved into a leading global supplier of industrial pipe systems, serving customers across more than 50 countries. Our comprehensive product portfolio includes:
Seamless Tubes and Pipes: Complete range in stainless, duplex, nickel alloys, and titanium
Welded Tubes and Pipes: Advanced TIG and laser-welded products

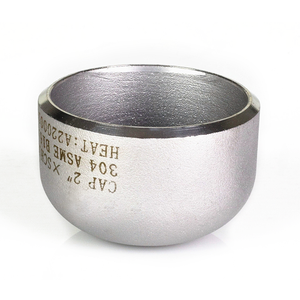

Butt Weld Fittings: Elbows, reducers, tees, caps, and stub ends
Forged Flanges and Fittings: Socket weld, threaded, and custom configurations
Capillary Tubing: Ultra-thin wall precision tubes down to 0.2mm wall thickness
Hex Steel Tubes: Complete range of hexagonal profiles in all materials
Prefabricated Pipe Modules: Custom-engineered systems ready for installation
Global Reach, Local Support:
Virtual factory tours via video conferencing
Remote technical guidance from experienced engineers
Door-to-door logistics solutions
Multilingual support (English, Arabic, Russian, Spanish, Indonesian)
Quality You Can Trust:
ISO 9001:2015 certified manufacturing
PED, ASME, API compliance available
Third-party inspection acceptance
Complete material traceability
Need assistance selecting the optimal hex tube or special-shaped pipe for your application? Our engineering team provides:
Material Selection Guidance: Choosing the right alloy for your environment
Dimensional Optimization: Balancing performance and cost-effectiveness
Application Engineering: Custom solutions for unique challenges
Technical Documentation: Comprehensive data sheets and specifications
Hex steel tubes and special-shaped pipes represent advanced engineering solutions for applications where standard circular tubing cannot meet performance requirements. Whether you need high-strength hexagonal bars for mechanical components, custom-profiled tubes for architectural applications, or exotic alloy special shapes for corrosive environments, Huashang Steel delivers precision-manufactured products backed by comprehensive quality assurance and technical support.
Our 15 years of experience, advanced manufacturing capabilities, and commitment to customer success make us the preferred partner for industrial pipe systems worldwide. From initial concept through final delivery, we provide end-to-end solutions that ensure your project success.
Request a quote today and discover why leading companies across aerospace, energy, chemical processing, and manufacturing industries trust Huashang Steel for their critical tubing requirements.
