Custom CO2 Heat Exchanger Components: A Complete Guide to Headers, Petals, Nozzles and Half-Shell Reducer Tees

Introduction

As industries continue to pursue higher thermal efficiency, lower emissions, and more compact equipment designs, CO2 heat exchangers have become increasingly important in applications such as supercritical CO2 power systems, industrial refrigeration, carbon capture, and advanced process cooling. Unlike conventional heat exchangers, these systems often operate under demanding pressure and temperature conditions, requiring highly engineered pressure-bearing components rather than standard pipeline fittings.

Among the most critical parts are CO2 headers, CO2 petals, vent pipes, maintenance nozzles, and half-shell reducer tees. These components form the connection points between external piping, distribution chambers, and the heat exchanger core, ensuring reliable fluid distribution, structural integrity, and maintainability throughout the equipment's service life.

Unlike catalog fittings, these components are typically manufactured according to customer-approved engineering drawings. Every detail—including dimensions, opening locations, bevel geometry, machining tolerances, and welding preparation—is tailored to meet the requirements of a specific heat exchanger design. This drawing-based manufacturing approach enables better dimensional compatibility, easier assembly, and improved quality control for complex industrial projects. The source project described six coordinated CO2-side component types manufactured from ASTM A312 TP316 seamless stainless steel using drawing-based fabrication and full material traceability.

This guide explains the functions of the major CO2 heat exchanger components, how they work together within an assembly, and why custom fabrication plays an essential role in modern heat exchanger manufacturing.

Huashang Steel recently completed a coordinated batch of custom stainless steel CO2-side components for an industrial heat exchanger project. The delivery included CO2 headers, CO2 petals, vent pipes, maintenance nozzles, inlet reducer tees and outlet reducer tees.

Project at a glance: Six coordinated CO2-side component types, one material and traceability system, and drawing-based fabrication for an industrial heat exchanger assembly.

Quick Overview

What Are CO2 Heat Exchanger Components?

CO2 heat exchanger components are custom-engineered pressure parts that connect external piping with the internal flow passages of a heat exchanger. Rather than functioning as independent piping products, these components become integral sections of a larger welded assembly.

Their primary responsibilities include:

• Distributing incoming CO2 flow evenly throughout the heat exchanger

• Collecting processed fluid from multiple channels

• Providing inspection and maintenance access

• Supporting auxiliary venting functions

• Creating smooth flow transitions between different pipe diameters

• Ensuring accurate fit-up during final fabrication

Because every heat exchanger is designed differently, these components are rarely standardized. Instead, manufacturers produce each part according to customer drawings, ensuring compatibility with the surrounding pressure vessel, welding sequence, and assembly process. The original project notes that final positions and functions are determined by the customer's approved equipment and welding drawings.

Compared with ordinary pipeline fittings, custom CO2 components require much tighter control over:

• Geometry

• Surface preparation

• Opening locations

• Material traceability

• Welding bevels

• Dimensional tolerances

These characteristics make drawing-based manufacturing essential for high-performance industrial heat exchangers.

Major Types of CO2 Heat Exchanger Components

1. CO2 Header

A CO2 header serves as the primary distribution or collection chamber within the heat exchanger assembly. Manufactured from thick-wall seamless stainless steel pipe, it is typically longitudinally split to form a half-shell structure with precisely machined openings and profile-cut ends.

Unlike conventional piping, a CO2 header is designed to interface directly with other custom components such as petals, nozzles, or transition assemblies. The geometry of every opening, edge profile, and welding surface is controlled according to approved engineering drawings.

Typical manufacturing features include:

• Seamless TP316 stainless steel construction

• Longitudinal half-shell cutting

• Profiled V-shaped end preparation

• Precision-machined connection openings

• Controlled welding edges

• Complete material traceability

These manufacturing characteristics ensure accurate assembly while minimizing welding distortion during fabrication. The source specifically highlights longitudinal half-shell cutting, drawing-specific V-shaped ends, machined openings, controlled fit-up edges, and permanent material identification.

2. CO2 Petal

A CO2 petal is a specially formed segment that connects or closes sections of a custom header assembly.

Its name comes from the petal-like shape produced after splitting and profiling stainless steel pipe. Unlike standard ASME fittings, every petal is unique to a specific project.

The component typically provides:

• Header end transition

• Connection between pressure components

• Structural continuity

• Improved welding fit-up

Producing repeatable petals requires careful control of:

• Pipe curvature

• Dimensional accuracy

• Cutting profiles

• Surface quality

• Edge preparation

Because petals become part of a pressure-containing assembly, even small dimensional deviations can affect final alignment. The case study emphasizes that petals are drawing-specific and require accurate layout, controlled curvature, and close dimensional matching with adjoining headers.

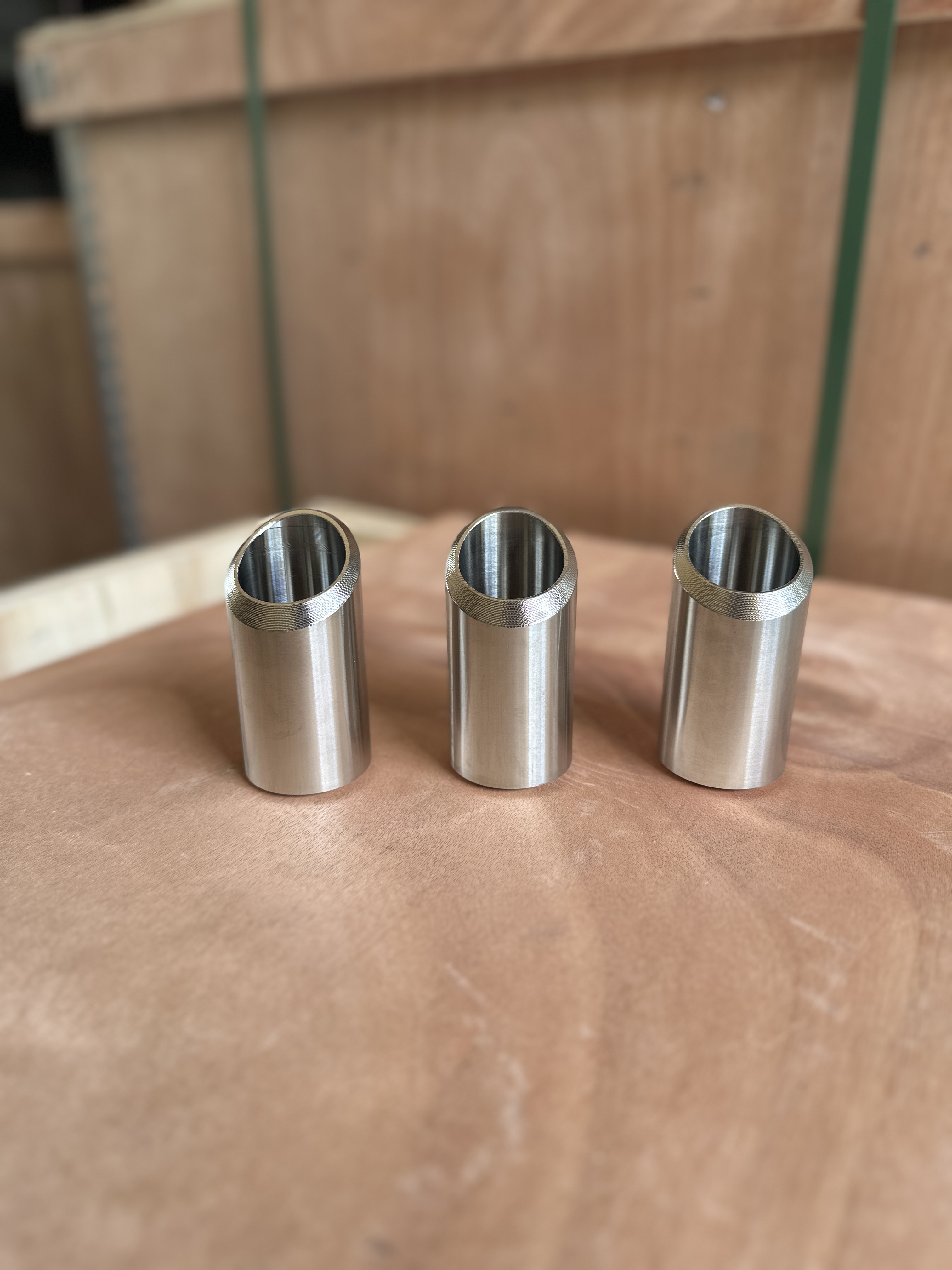

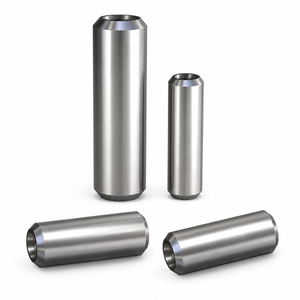

3. CO2 Vent Pipe

A CO2 vent pipe provides a dedicated connection for venting or auxiliary process flow.

Although relatively small compared with headers, vent pipes perform important operational functions by helping remove trapped gas during commissioning, maintenance, or system operation, depending on the equipment design.

Key manufacturing considerations include:

• Precision-machined bore

• Accurate outside diameter

• Correct end angle

• Wall integrity

• Weld preparation

• Orientation accuracy

Each vent connection must match the surrounding geometry to ensure reliable welding during final assembly. The original project describes these as short machined seamless pipe connections with smooth bores and angled ends for drawing-defined venting or auxiliary flow paths.

4. CO2 Maintenance Nozzle

Maintenance nozzles provide engineered access points within a heat exchanger assembly.

Depending on customer requirements, they may support:

• Equipment inspection

• Instrument installation

• Maintenance access

• System draining

• Auxiliary service connections

Although their external appearance may resemble standard nozzles, maintenance nozzles are always manufactured according to project drawings.

Each nozzle must match surrounding geometry precisely to maintain proper fit-up during fabrication.

Typical manufacturing includes:

• Heavy-wall seamless pipe

• Precision machining

• Material identification

• Accurate transition profiles

According to the project documentation, the same external nozzle shape may perform different functions depending on the heat exchanger design, so generic assumptions should be avoided.

5. Custom Half-Shell Reducer Tee

Among all custom components, the half-shell reducer tee is one of the most distinctive.

Unlike standard reducing tees used in pipeline construction, this component is intentionally cut along its centerline to create an open half-shell configuration.

After welding, it forms a smooth transition between:

• External process piping

• Distribution headers

• Heat exchanger shells

• Internal flow chambers

Advantages include:

• Better integration with curved surfaces

• Compact transition design

• Improved flow continuity

• Simplified fabrication

• Reduced welding complexity

It is important to recognize that these components should not be described as incomplete or damaged fittings. Instead, they are purpose-built fabrication components engineered specifically for custom heat exchanger assemblies. The project explicitly notes that the split reducer tees are intentional half-shell components designed to weld onto mating headers or exchanger surfaces rather than standard pipeline tees.

CO2 Component Comparison

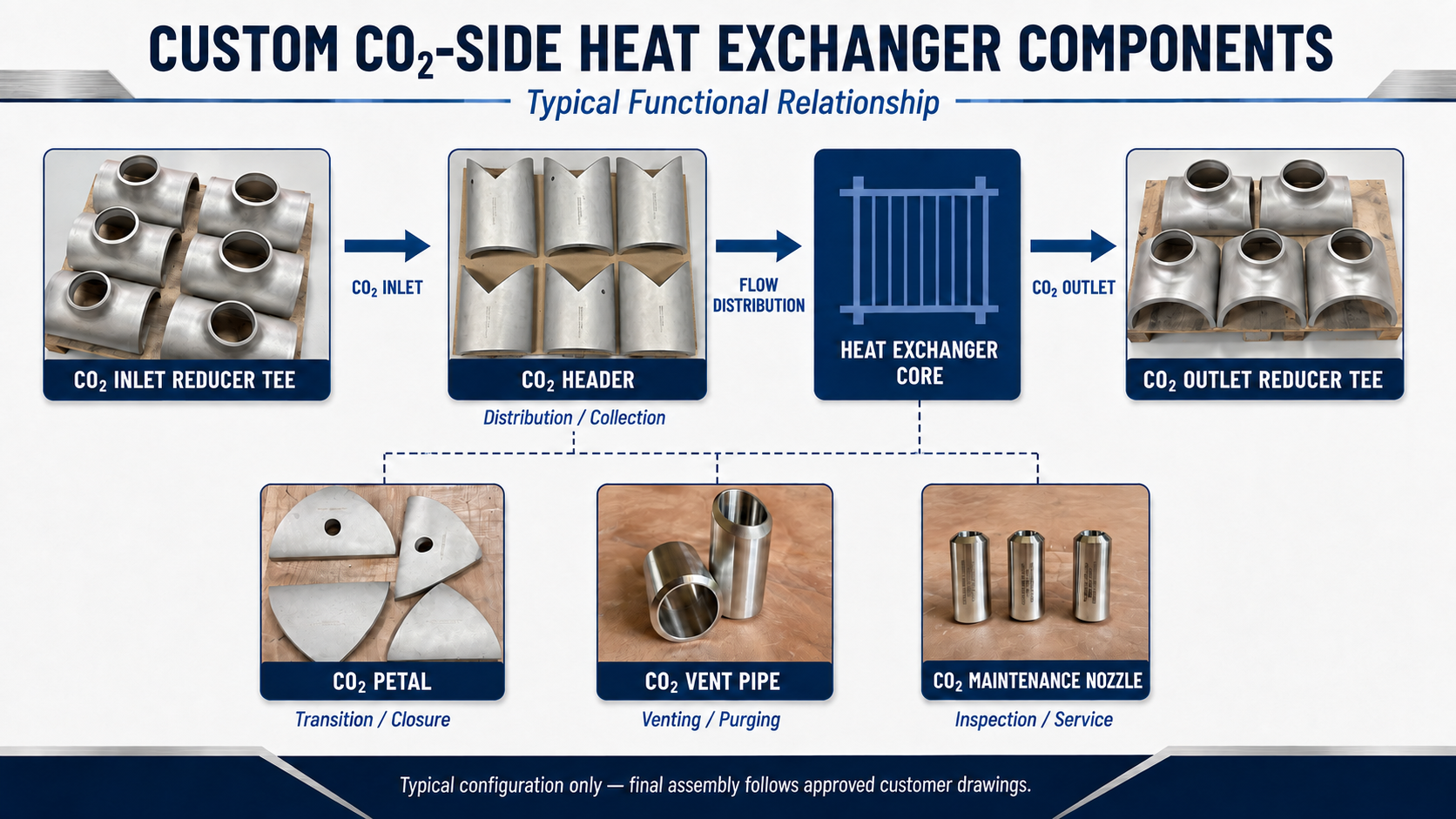

How These Components Work Together

Although each component performs a different function, they are designed as part of a coordinated manufacturing system rather than individual products.

A typical CO2-side assembly follows this sequence:

External CO2 Pipeline
          │
          ▼
 Half-Shell Inlet Reducer Tee
          │
          ▼
      CO2 Header
          │
          ▼
      CO2 Petal
          │
          ▼
 Heat Exchanger Core
          │
          ▼
    Outlet CO2 Header
          │
          ▼
 Half-Shell Outlet Reducer Tee
          │
          ▼
 External Process Pipeline

      Auxiliary Connections
      ├── CO2 Vent Pipe
      └── Maintenance Nozzle

In this arrangement, the inlet reducer tee introduces the process stream into the distribution region, the header and petal assembly interfaces with the heat exchanger core, and the outlet reducer tee collects the returning flow. Vent pipes and maintenance nozzles provide drawing-defined auxiliary connections. The exact flow direction, welding sequence, and pressure boundary always follow the customer's approved assembly drawings.

Manufacturing Process

Producing custom CO2 heat exchanger components involves far more than cutting pipe into specific lengths. Every header, petal, nozzle, and reducer tee must fit seamlessly into a larger pressure-bearing assembly, requiring strict control over geometry, material traceability, machining accuracy, and welding preparation. Since these components are manufactured according to customer-approved drawings, dimensional consistency is essential to avoid fit-up problems during final fabrication.

A typical manufacturing workflow begins with material verification to ensure the specified stainless steel grade meets project requirements. Seamless stainless steel pipes or forged fittings are then cut into the required profiles using precision machining equipment. Components such as headers and reducer tees undergo longitudinal splitting to create half-shell structures, while petals are formed through controlled profile cutting and shaping.

After rough machining, openings for branch connections, vent pipes, and maintenance nozzles are precisely machined according to engineering drawings. Welding bevels, edge preparation, and transition surfaces are then finished to ensure accurate assembly during pressure vessel fabrication.

Finally, every component undergoes dimensional inspection, material identification, and quality verification before packaging and shipment.

Typical Manufacturing Workflow

This manufacturing sequence reflects the project's emphasis on seamless and welded pipe sourcing, profile cutting, branch machining, half-shell preparation, beveling, custom headers and nozzles, and traceability documentation.

Why Stainless Steel 316?

Material selection plays a critical role in the long-term performance of CO2 heat exchanger components. Since these parts often operate under high pressure and demanding service conditions, the chosen material must provide excellent corrosion resistance, mechanical strength, and weldability.

For this reason, ASTM A312 TP316 stainless steel is widely used in industrial CO2 heat exchanger projects. Compared with standard stainless steel grades, TP316 contains molybdenum, which improves resistance to pitting and crevice corrosion in challenging process environments.

In addition to corrosion resistance, TP316 offers excellent fabrication characteristics, allowing manufacturers to perform precision machining, profile cutting, and welding while maintaining dimensional stability.

Although TP316 is one of the most common materials, drawing-based manufacturing also allows customers to specify alternative stainless steels or special alloys depending on operating pressure, temperature, fluid composition, and project standards.

Material Comparison

The original project specifies ASTM A312 TP316 seamless stainless steel and notes that final material selection should be determined by the equipment designer, with special alloys available for custom projects.

Quality Inspection and Traceability

High-quality manufacturing is only meaningful when supported by a comprehensive inspection system. Because custom CO2 heat exchanger components are integrated into pressure-containing equipment, every part must meet strict dimensional and material requirements before delivery.

Inspection begins with verification of material certificates and heat numbers. Depending on project specifications, Positive Material Identification (PMI) may also be performed to confirm material composition.

Dimensional inspection verifies that every machined feature—including opening positions, wall thickness, edge preparation, and overall geometry—matches the approved engineering drawings. Surface condition, machining quality, and welding bevels are also inspected to ensure proper assembly.

Where required by customer specifications, nondestructive testing (NDT) may be carried out before shipment. Complete traceability is maintained throughout production by permanent material marking and supporting documentation such as EN 10204 3.1 certificates.

Typical Inspection Checklist

The project describes this inspection approach in detail, including material review, PMI, dimensional verification, wall-thickness checks, opening orientation, bevel inspection, NDT where required, and final marking.

Typical Applications

Custom CO2 heat exchanger components are widely used in industrial systems where standard pipeline fittings cannot satisfy complex engineering requirements. Because every component is manufactured according to project drawings, they can be integrated into a wide range of thermal equipment and pressure systems.

Typical applications include:

FAQ

Q1. What is a CO2 header?

A CO2 header is a custom-manufactured distribution or collection component that directs CO2 flow between external piping and the heat exchanger core. Unlike standard pipe fittings, it is produced according to engineering drawings and integrated into a welded assembly.

Q2. Why are reducer tees cut into half-shell structures?

Half-shell reducer tees are intentionally split so they can be welded directly onto headers, shells, or transition sections. They are custom fabrication components rather than incomplete pipeline fittings.

Q3. What is the purpose of a CO2 petal?

A CO2 petal is a drawing-specific formed segment used to connect, transition, or close sections of a custom header assembly. Its geometry varies according to each equipment design.

Q4. Can these components be manufactured according to customer drawings?

Yes. Professional manufacturers can produce headers, petals, nozzles, manifolds, and half-shell fittings based on customer drawings, including custom materials, tolerances, profiles, and inspection requirements.
