Custom Water Header, Water Petal And Nozzles for Industrial Heat Exchangers

Introduction

Modern industrial heat exchangers rely on precision-engineered components to ensure efficient fluid distribution, reliable structural integrity, and long-term operational performance. While the heat exchanger itself is the core of the system, its performance depends heavily on the quality and compatibility of the water-side components integrated into the assembly.

Among these critical components are the Water Header, Water Petal, Water Nozzle, and Water Maintenance Nozzle. Although each serves a different purpose, they are designed to function together as a complete fabricated system. Every component is manufactured according to approved customer drawings, ensuring dimensional accuracy, proper interface matching, and reliable assembly during fabrication. The supplied project included all four components manufactured from ASTM A312 TP316L stainless steel based on customer-approved drawings.

Unlike standard pipeline fittings, these water-side components are highly customized. Their geometry, openings, welding preparations, and interface profiles are determined by the overall heat exchanger design rather than industry-standard dimensions. This drawing-based manufacturing approach allows engineers to optimize flow paths, simplify fabrication, and improve the overall reliability of the completed equipment.

Huashang Steel recently completed another set of custom water-side components for a long-term  heat exchanger customer. The delivery included a Water Header, Water Petal, Water Nozzle and Water Maintenance Nozzle, all manufactured from ASTM A312 TP316L stainless steel according to approved customer drawings.

This guide explains the functions of each major component, how they work together within a heat exchanger assembly, and why integrated manufacturing is essential for custom industrial projects.

Quick Overview

What Are Water-Side Heat Exchanger Components?

Water-side components form the connection and distribution system inside a heat exchanger. Rather than operating independently, these fabricated parts work together to transport water through the exchanger, connect external piping, and provide the access points required for maintenance and servicing.

Each component performs a specific task within the overall assembly:

• Water Header distributes or collects water flow.

• Water Petal creates a shaped transition around the header geometry.

• Water Nozzle connects the heat exchanger to external piping.

• Water Maintenance Nozzle provides an auxiliary service connection defined by the equipment design.

Because every heat exchanger has unique design requirements, these components are manufactured according to approved engineering drawings rather than standard catalogs. Dimensions, wall thicknesses, bevels, opening locations, and connection details are all controlled by project specifications.

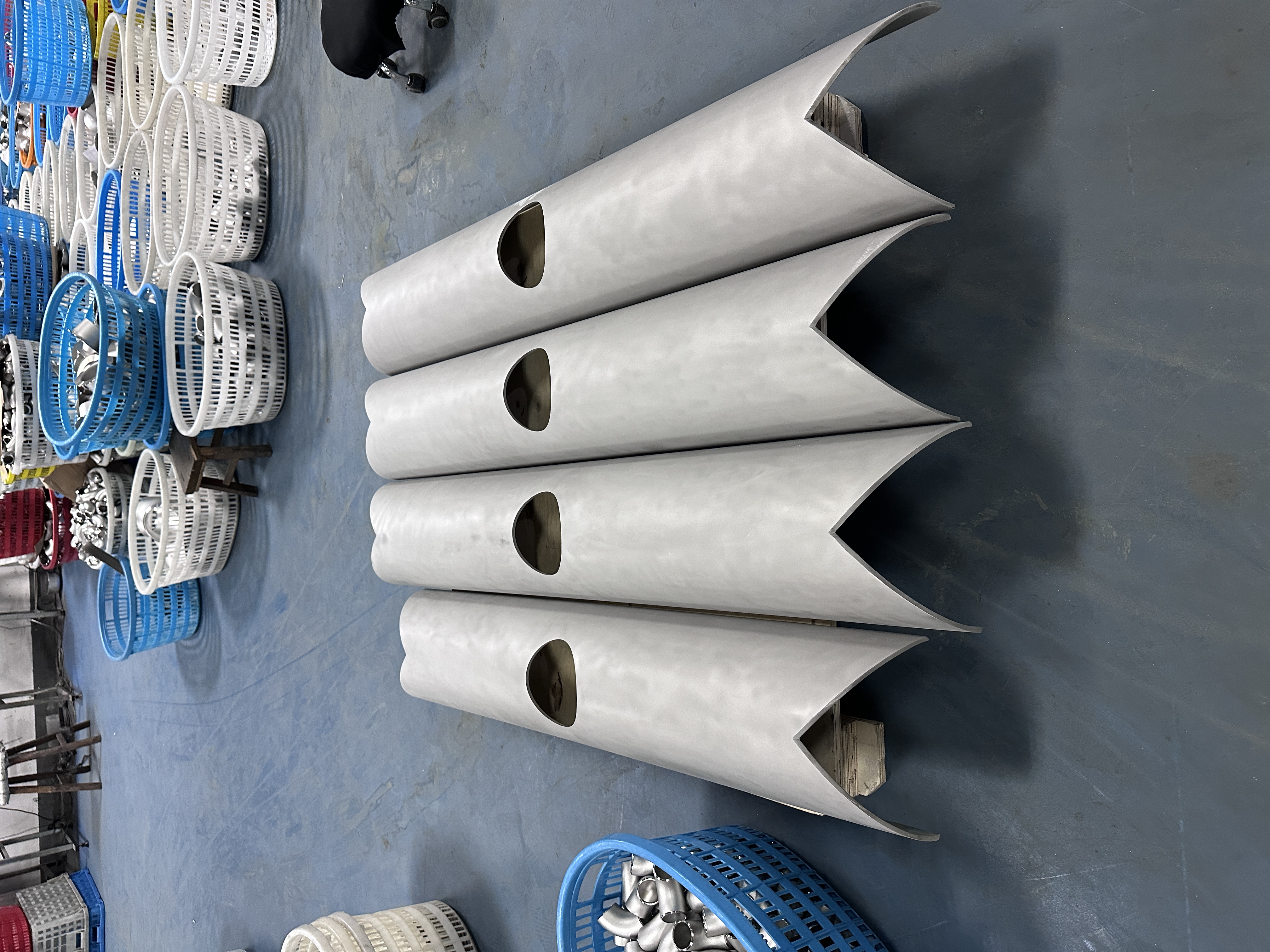

What Is a Water Header?

The Water Header is the primary collection or distribution component on the water side of a heat exchanger. Depending on the system configuration, it receives incoming water, directs the flow into the internal passages of the exchanger, and collects the returning fluid before discharge.

Unlike standard pipe sections, a custom Water Header incorporates fabrication features specifically designed for the surrounding assembly. These may include:

• Precisely positioned branch openings

• Shaped end profiles

• Longitudinal cut sections for assembly integration

• Contoured interfaces for petals and nozzles

• Drawing-controlled weld preparations

These features are not decorative—they are functional design elements that ensure the header integrates correctly with adjacent components. Their position, orientation, and dimensions are strictly controlled by the approved assembly drawing to achieve proper alignment and reliable welding during fabrication.

Key Characteristics of a Water Header

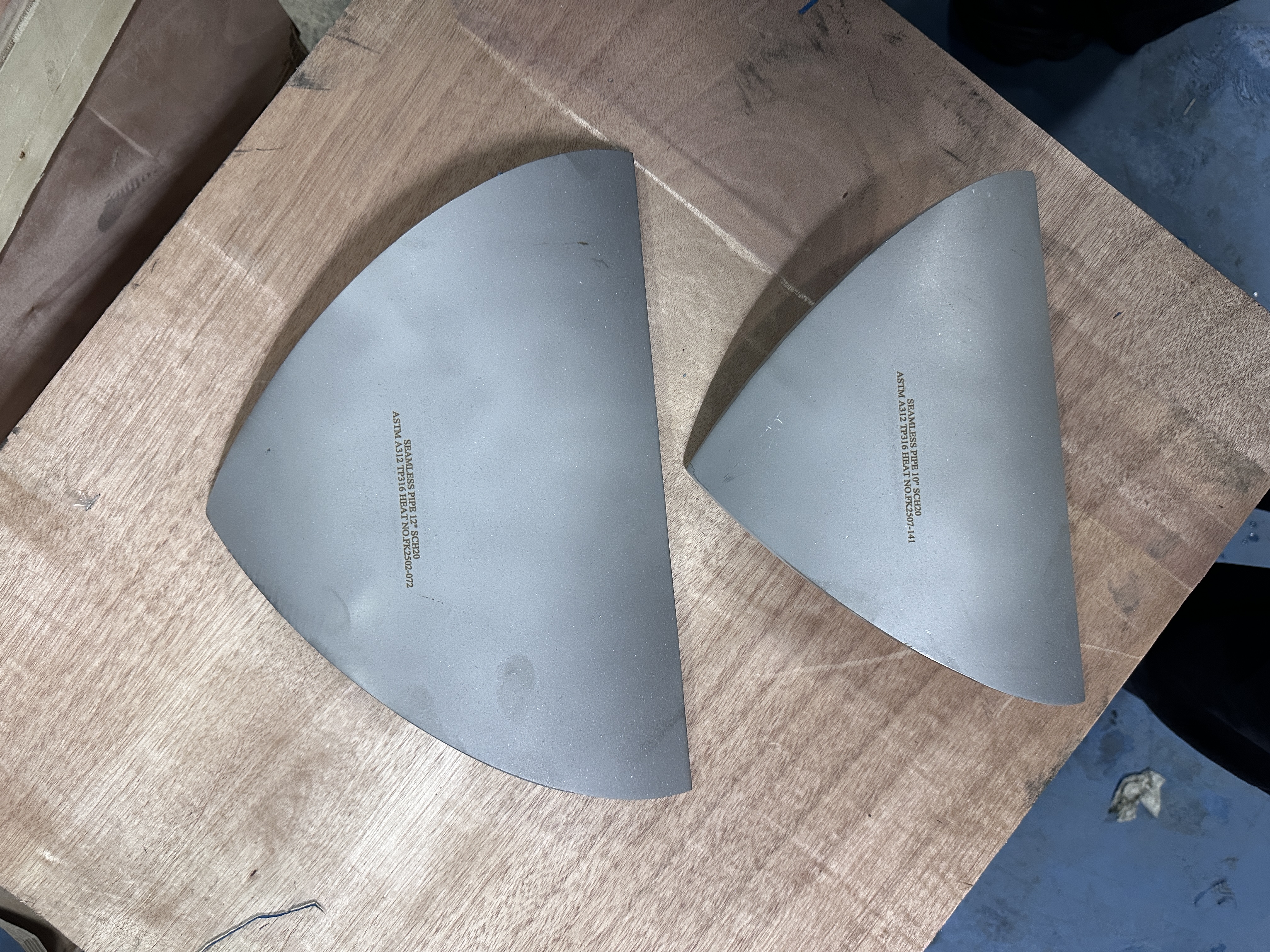

What Is a Water Petal?

A Water Petal is a curved, drawing-based component designed to match the geometry of a heat exchanger header or adjoining section. Depending on the assembly, it may function as a shaped transition, a local closure, or a connecting interface.

Although the term "Water Petal" is commonly used in heat exchanger projects, it is generally considered a project-specific component name rather than a standard ASME fitting designation. Its geometry and function should always be confirmed using the approved assembly drawings.

Manufacturing a Water Petal requires careful control of several factors:

• Curvature accuracy

• Edge profile

• Mating fit

• Opening configuration

• Component orientation

Even small deviations in these areas can lead to uneven weld gaps, longer assembly times, or distortion during fabrication. For this reason, manufacturers should inspect the Water Petal as part of the complete component system rather than as an isolated part. When a prepared opening is included for a nozzle, the Water Petal, Water Header, and Water Nozzle should be reviewed together during drawing approval and production planning.

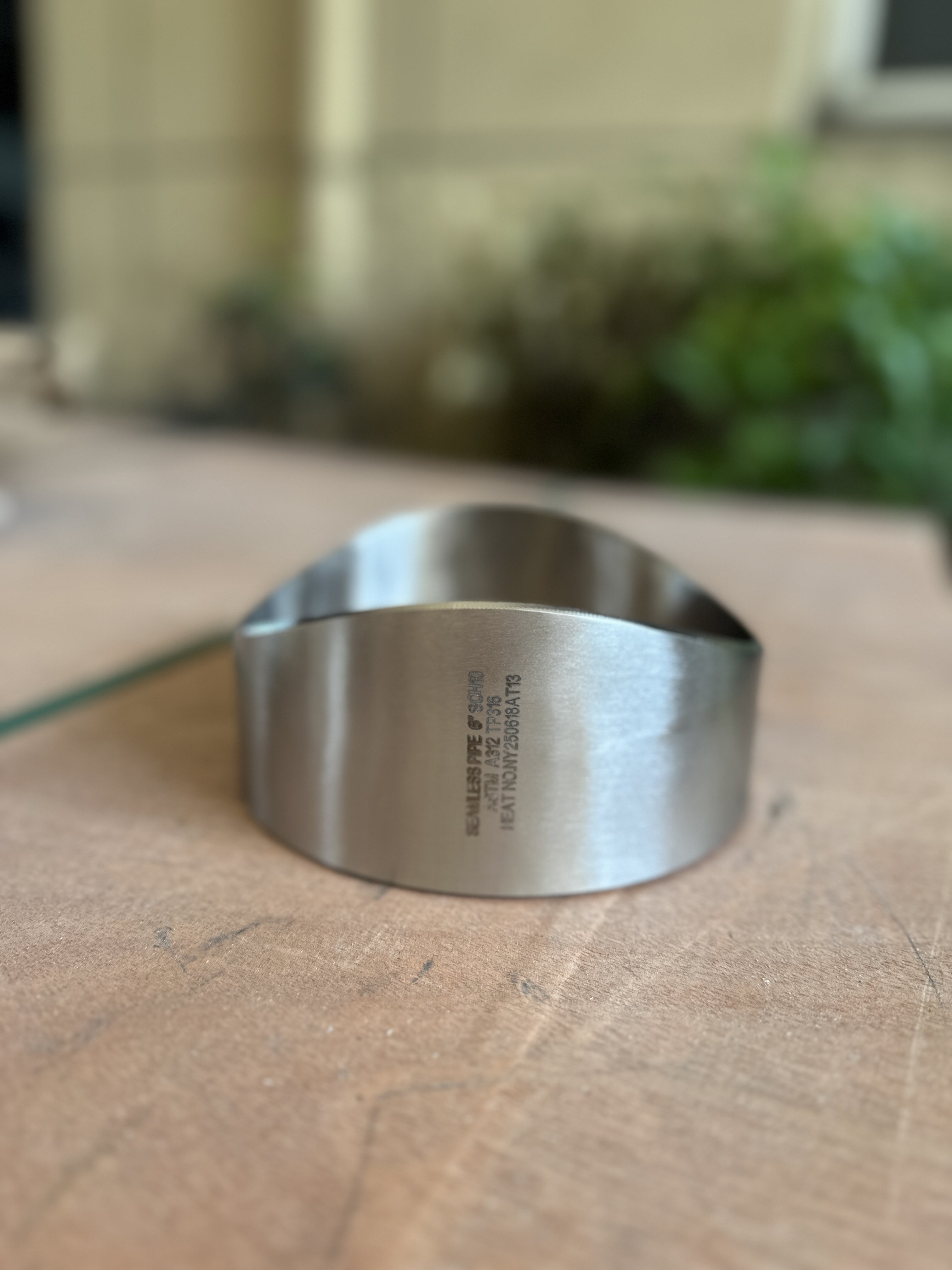

What Is a Water Nozzle?

The Water Nozzle forms the primary connection between the heat exchanger water chamber or header assembly and the external piping system. Its dimensions, orientation, and end configuration are selected according to the equipment designer's specifications.

To ensure accurate installation, manufacturers typically control:

• Material grade

• Outside diameter

• Wall thickness

• Cut length

• End squareness

• Bevel preparation

• Intersection profile

• Surface condition

• Material traceability

When the nozzle is installed on a curved Water Petal or Water Header, its intersection profile must match the mating surface precisely. Accurate preparation helps maintain proper weld gaps and ensures that the final orientation meets the assembly requirements.

What Is a Water Maintenance Nozzle?

A Water Maintenance Nozzle is a smaller auxiliary connection integrated into the water-side system of a heat exchanger. Its specific function depends on the equipment design and may include inspection, flushing, draining, venting, cleaning, or other maintenance-related operations.

Because these duties vary from project to project, every Water Maintenance Nozzle is manufactured according to the approved engineering drawings. Material selection, wall thickness, bore condition, end preparation, and interface details are all specified by the design documentation to ensure compatibility with the overall assembly. Clean machining and controlled weld preparation contribute to consistent fit-up during installation.

Component Comparison

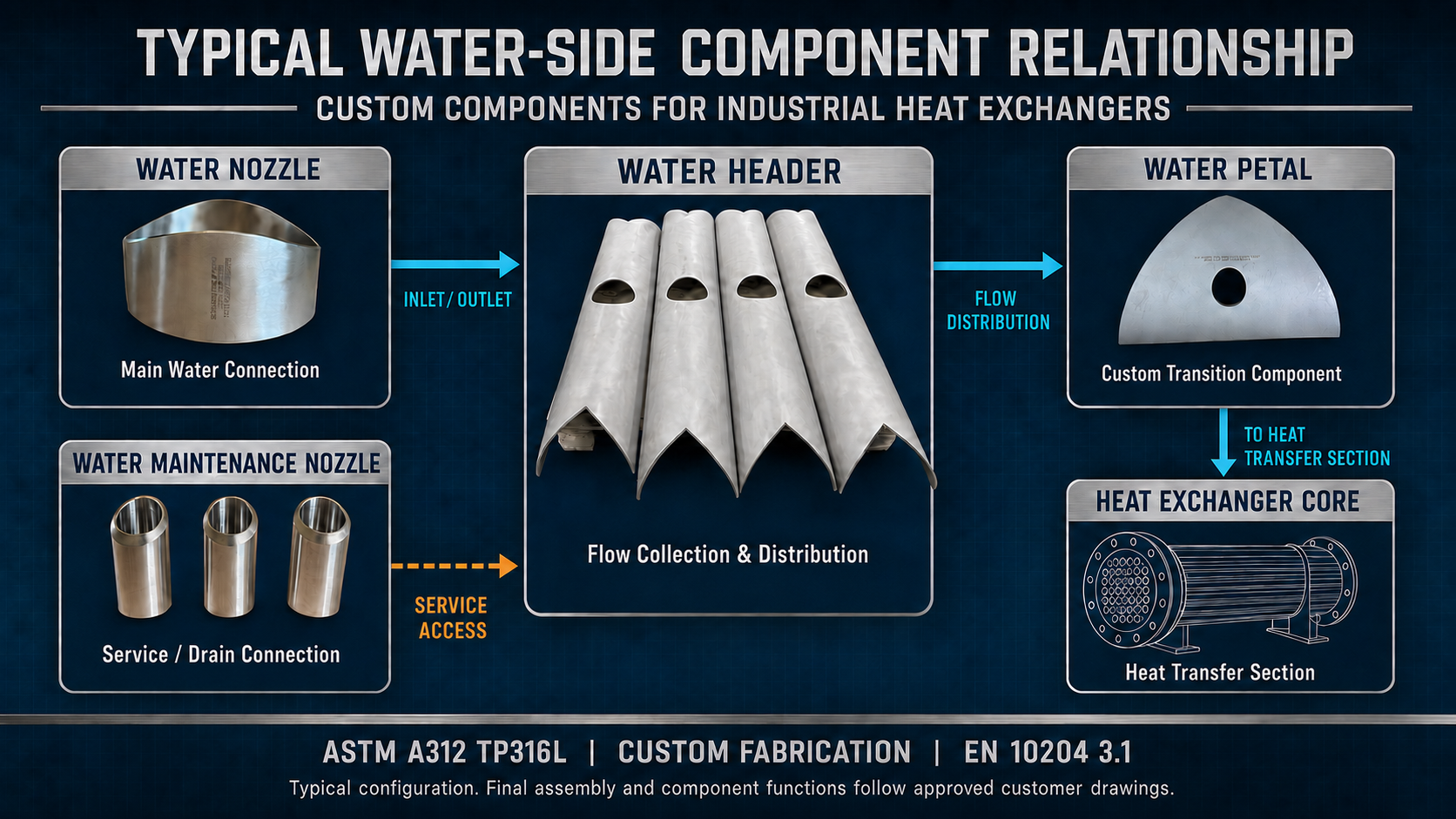

How These Components Work Together

Although each component performs a different function, they are engineered to operate as one integrated fabrication system rather than as individual parts.

External Water Pipeline
          │
          ▼
     Water Nozzle
          │
          ▼
     Water Petal
          │
          ▼
     Water Header
          │
          ▼
 Heat Exchanger Water Chamber
          │
          ▼
 Water Maintenance Nozzle

In a typical heat exchanger assembly, the Water Nozzle connects the external piping to the equipment, the Water Petal forms the contoured interface around the nozzle or header, the Water Header distributes or collects water through the designed flow passages, and the Water Maintenance Nozzle provides the auxiliary connection required for servicing or maintenance. The exact configuration, orientation, and interface of each component always follow the approved customer drawings, ensuring that the complete assembly functions as a coordinated system.

Manufacturing Process

Custom water-side heat exchanger components require far more than standard pipe fabrication. Every Water Header, Water Petal, Water Nozzle, and Water Maintenance Nozzle is produced according to approved engineering drawings, making drawing review and manufacturing control essential throughout the production process.

Unlike standard fittings that follow fixed dimensions, custom components must match the geometry of the complete heat exchanger assembly. Before production begins, manufacturers should perform a comprehensive technical review to verify material specifications, component geometry, connection orientation, fabrication methods, and inspection requirements. This early-stage review helps prevent manufacturing deviations and ensures that all components integrate correctly during final assembly.

Depending on the component geometry, production may combine pipe cutting, CNC machining, profile forming, bevel preparation, surface finishing, and dimensional inspection. When several components are designed to function together, trial fit-up or interface verification may also be carried out to confirm compatibility before delivery.

Typical Manufacturing Workflow

Engineering Considerations

For custom heat exchanger projects, successful manufacturing depends on more than producing individual parts within tolerance. Since the Water Header, Water Petal, Water Nozzle, and Water Maintenance Nozzle are assembled into one welded system, manufacturers should evaluate how each component interacts with the others.

During technical review, particular attention should be given to:

• Material specifications and applicable standards

• Component geometry and dimensional tolerances

• Seamless or welded construction requirements

• Opening locations and connection orientation

• Weld bevel configuration

• Surface treatment and cleanliness

• Inspection and testing requirements

• Material certification and documentation

Coordinating these factors before production reduces the likelihood of assembly problems and improves manufacturing efficiency.

Quality Inspection and Material Traceability

Because water-side components become part of pressure-bearing equipment, quality inspection is an essential stage of manufacturing. Inspection procedures should verify not only the dimensions of individual components but also their compatibility with the overall assembly.

Typical quality control activities include reviewing material certificates, verifying finished dimensions, inspecting machined profiles and openings, checking weld preparations, and confirming identification markings. Where required by project specifications, additional examinations such as Positive Material Identification (PMI), liquid penetrant testing (PT), hydrostatic testing, pneumatic testing, or leak testing may also be performed.

Permanent material identification enables manufacturers to maintain complete traceability from the original raw material through to the finished Water Header, Water Petal, or Nozzle, providing confidence in both quality assurance and project documentation.

Quality Inspection Checklist

Why Source the Complete Water-Side Component Package from One Supplier?

Although Water Headers, Water Petals, Water Nozzles, and Water Maintenance Nozzles can be manufactured individually, sourcing them as a complete package offers significant advantages for complex heat exchanger projects.

When a single manufacturer is responsible for the entire component package, mating interfaces can be reviewed collectively rather than independently. This coordinated approach improves dimensional consistency, reduces the risk of interface mismatches, and helps ensure that all components fit together correctly during assembly.

In addition, using one supplier simplifies project management by aligning material procurement, production schedules, inspection procedures, and documentation. For repeat projects, previous manufacturing experience and inspection records can also be carried forward, improving production efficiency and quality consistency.

Benefits of Integrated Manufacturing

Request a Technical Review

To prepare an accurate manufacturing proposal, suppliers typically require the following project information:

• Component and assembly drawings

• Material grade and applicable standards

• Design conditions relevant to the supply scope

• Quantity and delivery schedule

• Inspection and testing requirements

• Material certification, NDE, or third-party inspection requirements

• Surface treatment, marking, and packaging instructions

Providing complete engineering information at the quotation stage helps ensure an efficient technical review and supports accurate manufacturing planning.

Conclusion

Water Headers, Water Petals, Water Nozzles, and Water Maintenance Nozzles are essential fabricated components that enable reliable water distribution, secure piping connections, and efficient maintenance access within industrial heat exchangers. Although each component serves a unique purpose, they are engineered to function as an integrated system, with every profile, opening, and weld preparation defined by approved customer drawings.

Drawing-based manufacturing ensures that each component meets the dimensional and functional requirements of the complete assembly. Combined with comprehensive quality inspection, material traceability, and coordinated engineering review, this approach helps improve assembly efficiency, reduce fabrication risks, and support long-term equipment performance.

For manufacturers, EPC contractors, and heat exchanger builders, sourcing the complete water-side component package from a single experienced supplier offers significant advantages in engineering coordination, production consistency, and quality assurance throughout the project lifecycle.

FAQ

What does a Water Header do in a heat exchanger?

A Water Header collects or distributes water between the external piping system and the internal flow passages of a heat exchanger. Its arrangement depends on the specific equipment design.

Is a Water Petal a standard ASME pipe fitting?

No. A Water Petal is generally a project-specific fabricated component. Its geometry and function are defined by the approved assembly drawings rather than by standard fitting specifications.

Are Water Headers and Water Petals always supplied together?

Not necessarily. However, supplying them as part of the same manufacturing package improves control over mating profiles, opening locations, and interface accuracy.

Which materials are commonly used?

Material selection depends on operating conditions such as fluid chemistry, pressure, temperature, and corrosion requirements. ASTM A312 TP316L stainless steel is widely used, while duplex stainless steels, other austenitic grades, and nickel alloys may be specified for more demanding applications.

What information is required for a quotation?

Suppliers typically require approved drawings, material specifications, quantities, end preparation details, inspection requirements, documentation requirements, and delivery schedules to prepare an accurate quotation.
