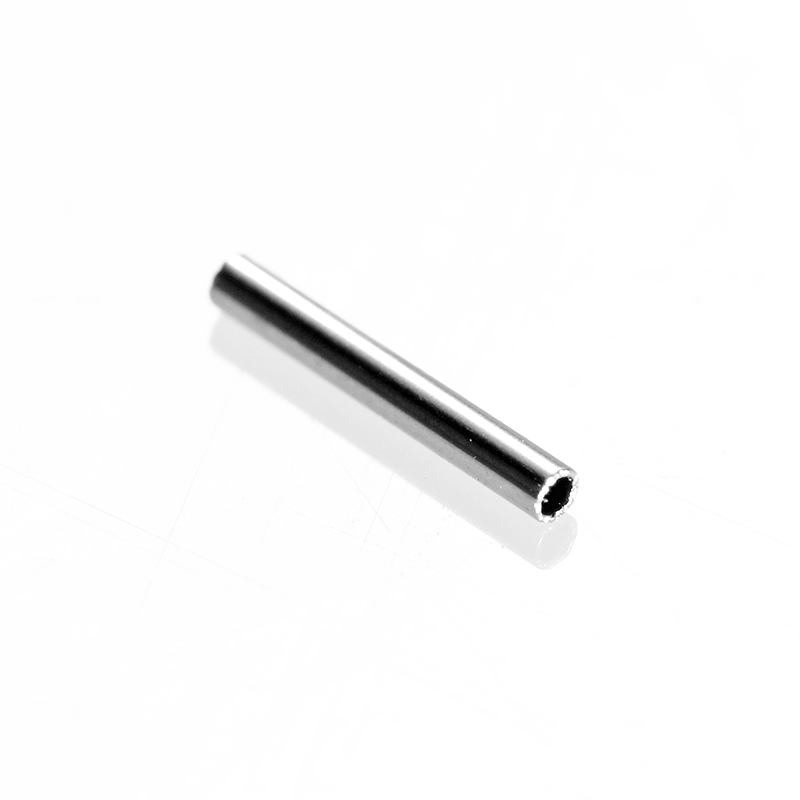

A capillary tube is a very thin, narrow tube designed to handle tiny amounts of fluid. Its internal diameter is usually just a few micrometers to millimeters wide. This small size allows it to exploit a natural phenomenon called capillary action, where liquids move through narrow spaces without external forces. The liquid clings to the tube’s walls and is pulled upward or along the tube due to surface tension.
Because of their slim design, capillary tubes are excellent for precise fluid control, especially when only small volumes are needed. They don’t require pumps or motors; fluid moves naturally due to physical forces. This simplicity makes them reliable, low-maintenance, and cost-effective.
Capillary tubes are often long and coiled to fit compact spaces. Their length and internal diameter are crucial factors controlling how much fluid can flow through them. For example, a longer tube or smaller diameter increases resistance and lowers flow rate, while a shorter or wider tube allows more fluid to pass.
| Material | Properties | Common Applications | Advantages |
|---|---|---|---|
| Glass | Transparent, chemically inert, fragile | Laboratories, blood sampling, chromatography | Ideal for observing fluid movement, chemically resistant |
| Stainless Steel | Strong, corrosion-resistant, durable | Industrial, medical, refrigeration systems | High pressure tolerance, durable, corrosion-resistant |
| Plastic | Lightweight, flexible, cost-effective | Medical devices, consumer products | Lightweight, cost-effective, flexible, resistant to certain chemicals |
| Bimetallic | Combines two metals with different thermal expansion rates | Thermostats, refrigeration systems | Temperature sensing, precise control through mechanical movement |
Capillary tubes operate based on a natural phenomenon called capillary action. This occurs when a liquid moves through a narrow space without external forces like pumps. The liquid clings to the tube’s walls due to adhesive forces between the liquid and the solid surface. At the same time, cohesive forces within the liquid cause surface tension, which helps pull the liquid upward or along the tube.
Imagine dipping a thin glass tube into water. Water will rise inside the tube higher than the surrounding water level. This happens because water molecules are attracted to the glass surface and to each other. The narrower the tube, the higher the liquid climbs. This effect is essential for many applications requiring the precise movement of tiny liquid volumes.
Capillary tubes control fluid flow by balancing pressure differences and friction inside the tube. The tube’s length and internal diameter are key factors. A longer tube or smaller diameter increases resistance, slowing fluid flow. A shorter or wider tube allows more fluid to pass through.
In refrigeration systems, for example, the capillary tube throttles refrigerant flow. High-pressure liquid enters the tube, and pressure drops as it moves through. This pressure reduction causes the refrigerant to expand and cool, enabling the refrigeration cycle. The tube’s fixed size means flow changes as system pressures vary, so it’s designed for specific operating conditions.
In medical devices, capillary tubes collect tiny blood samples by drawing fluid into the narrow bore through capillary action. This allows precise measurement of small volumes without pumps or suction. In laboratories, capillary tubes help measure properties like surface tension and viscosity by observing how far liquids rise inside them.
The working principle also applies in chromatography. Here, capillary tubes help move solvents through stationary phases, separating chemical components based on their interaction with the tube and solvent.
Overall, capillary tubes use simple physical forces to move and measure fluids accurately. Their design ensures controlled fluid flow without complex machinery, making them reliable and efficient in many fields.
Tip: When selecting a capillary tube for fluid control, carefully consider its length and internal diameter to match the required flow rate and pressure drop for your specific application.
Capillary tubes come in several types, each designed for specific uses depending on their material properties and application needs. Understanding these types helps in selecting the right tube for your project or system.
Glass capillary tubes are popular in laboratories and scientific research. They are thin, transparent, and chemically inert. This transparency allows easy observation of fluid movement inside the tube, which is crucial for experiments and measurements. Glass resists most chemicals, making it suitable for handling various liquids without reacting or contaminating samples.
These tubes are often used in thermometers, blood sampling, and chromatography. Their brittleness means they need careful handling to avoid breakage, but their inertness and clarity make them ideal for precise fluid control and measurement.
Stainless steel tubes are strong, durable, and resistant to corrosion. These qualities make them perfect for industrial and medical applications where the tube must withstand high pressure and aggressive fluids. They maintain their shape and function even in harsh environments.
Common uses include refrigeration systems, hydraulic systems, and medical devices. Stainless steel tubes handle temperature extremes and mechanical stress well, ensuring reliable fluid flow control.
Plastic tubes, made from materials like polycarbonate or Teflon, are lightweight and flexible. They resist many chemicals and are less expensive than metal or glass tubes. Their flexibility allows easy integration into devices requiring bending or shaping.
Plastic capillary tubes are common in consumer products, medical equipment, and fluid management systems where cost, weight, and chemical resistance are important. They are also safer in applications where breakage of glass would be a concern.
Bimetallic tubes combine two metals with different thermal expansion rates. This unique property makes them useful in temperature sensing applications. As temperature changes, the tube bends or moves due to the metals expanding at different rates.
They are often found in thermostats and refrigeration systems to regulate temperature automatically. This type of capillary tube acts as a mechanical sensor, providing reliable temperature control without electrical components.
Capillary tubes play a vital role in refrigeration and air conditioning systems. They act as throttling devices that regulate the flow of refrigerant from the high-pressure side (condenser) to the low-pressure side (evaporator). When refrigerant passes through the narrow capillary tube, its pressure drops sharply due to the tube’s small diameter and length. This pressure drop causes the refrigerant to expand and cool, enabling the refrigeration cycle to work efficiently.
Because the capillary tube has a fixed length and diameter, it controls the refrigerant flow without any moving parts or external power. This simplicity makes it cost-effective and reliable. However, the tube is designed for specific operating conditions; changes in ambient temperature or load can affect flow rate and system performance. Proper sizing of the capillary tube is crucial to ensure optimal refrigeration efficiency.
In medical settings, capillary tubes are essential for collecting and analyzing small blood samples. Their narrow diameter allows blood to be drawn into the tube by capillary action without the need for pumps or suction devices. This is especially useful in procedures such as glucose monitoring, hemoglobin testing, and microhematocrit measurements.
Medical capillary tubes are often made of glass or plastic and may be pre-treated with anticoagulants like heparin to prevent blood clotting. Careful handling is necessary to avoid breakage and contamination. Their ability to collect precise volumes of blood makes them indispensable in diagnostic laboratories.
Capillary tubes are widely used in chromatographic techniques such as gas chromatography (GC) and thin-layer chromatography (TLC). In these methods, the tubes facilitate the movement of solvents or gases through a stationary phase, allowing separation of chemical components based on their interaction with the tube and the mobile phase.
The narrow diameter of capillary tubes allows for high efficiency and resolution in separating complex mixtures. This precision is critical in chemical analysis, pharmaceuticals, environmental testing, and food safety.
Capillary tubes are fundamental components in liquid-in-glass thermometers. The tube contains a liquid such as mercury or colored alcohol that expands or contracts with temperature changes. As temperature rises, the liquid moves up the thin capillary tube, providing a clear and precise temperature reading.
The small diameter of the tube amplifies the liquid’s movement, allowing even slight temperature changes to be easily observed. This makes capillary tubes ideal for accurate temperature measurement in scientific, medical, and industrial applications.
In hydraulic systems, stainless steel capillary tubes help control the flow of fluids under high pressure. Their strength and corrosion resistance make them suitable for regulating oil or other hydraulic fluids in machinery and equipment.
Capillary tubes ensure smooth operation by providing precise fluid flow control, which is essential for maintaining system stability and performance. They are commonly used in automotive, aerospace, and industrial hydraulic applications.
| Application | Industry/Field | Role of Capillary Tube | Key Benefits |
|---|---|---|---|
| Refrigeration Systems | HVAC, industrial cooling | Regulates refrigerant flow, causing pressure drop and cooling | Simple, cost-effective, reliable fluid flow control |
| Medical Devices | Healthcare, diagnostic laboratories | Collects blood samples by capillary action without pumps | Precise fluid collection, no need for pumps |
| Chromatography | Chemistry, pharmaceuticals | Moves solvents through stationary phases, aiding separation | High precision, efficient separation of components |
| Thermometers | Science, medical, industrial | Contains liquid that moves with temperature changes | Amplifies liquid movement for precise temperature readings |
| Hydraulic Systems | Automotive, aerospace, industrial | Regulates fluid flow in high-pressure systems | Durable, corrosion-resistant, precise flow control |
| Advantage | Description | Why It Matters |
|---|---|---|
| Precision in Fluid Control | Allows for controlled fluid movement through narrow tubes | Ensures accurate handling of small fluid volumes |
| Cost-Effectiveness | Simple design with no moving parts, low manufacturing costs | Affordable, especially for systems that require large quantities |
| Compact Design | Small, lightweight, and space-saving | Easy to fit into tight spaces in modern equipment |
| Versatility | Available in various materials (glass, plastic, stainless steel) | Suitable for a wide range of applications across different fields |
Tip: When designing systems requiring precise fluid flow, consider capillary tubes for their accuracy, low cost, and compact size to enhance efficiency and reduce complexity.
Using capillary tubes in medical settings brings specific challenges. Since these tubes are often made of glass or plastic, breakage is a common risk. Broken glass tubes can cause injury to patients or healthcare workers. Proper handling and disposal are essential to avoid accidents and contamination.
Another concern is obtaining an adequate blood sample. Improper skin puncture or incorrect tube placement may result in insufficient or hemolyzed samples, affecting test accuracy. Additionally, contamination risks exist if tubes are reused or not sealed properly after collection.
Medical capillary tubes may also carry anticoagulants like heparin to prevent clotting. However, incorrect anticoagulant use can interfere with test results. Strict adherence to protocols ensures reliable outcomes.
In HVAC and refrigeration systems, installing and maintaining capillary tubes requires care. The tube’s small diameter makes it prone to clogging by dirt, oil, or debris. During brazing or soldering, technicians must avoid overheating or inserting filler material deep inside the tube, which can block flow.
Proper sizing is critical. A tube too narrow or too long causes excessive pressure drop, reducing refrigerant flow and system efficiency. A tube too wide or short leads to insufficient pressure drop, causing poor cooling performance. Always match tube dimensions to system specifications.
Overcharging refrigerant can overload compressors because capillary tubes cannot adjust flow dynamically. When the system stops, pressure equalizes on both sides of the tube, so excess refrigerant raises discharge pressure at restart, risking compressor damage.
Regular inspection and cleaning help maintain tube function. If the system is opened for repair, replacing the capillary tube is often necessary to prevent clogging from oil residues.
Capillary tubes are crucial for precise fluid control in various fields, including refrigeration, medical devices, and chromatography. Their compact design, cost-effectiveness, and versatility make them indispensable. Future innovations may enhance their efficiency and broaden their applications. HUASHANG offers high-quality capillary tubes that provide reliable performance and value, meeting diverse industry needs.
A: In refrigeration systems, a capillary tube regulates refrigerant flow from high-pressure to low-pressure areas, causing pressure drop and cooling, essential for efficient operation.
A: Stainless steel capillary tubes are strong, corrosion-resistant, and can handle high pressures and aggressive fluids, making them ideal for industrial applications.
A: Capillary tubes in medical devices allow precise blood sample collection without pumps, facilitating accurate measurements for diagnostic purposes.
A: Capillary tubes offer precise fluid control, simplicity, and cost-effectiveness compared to complex devices requiring pumps or valves.
