Medical Grade Stainless Steel Tubing Description

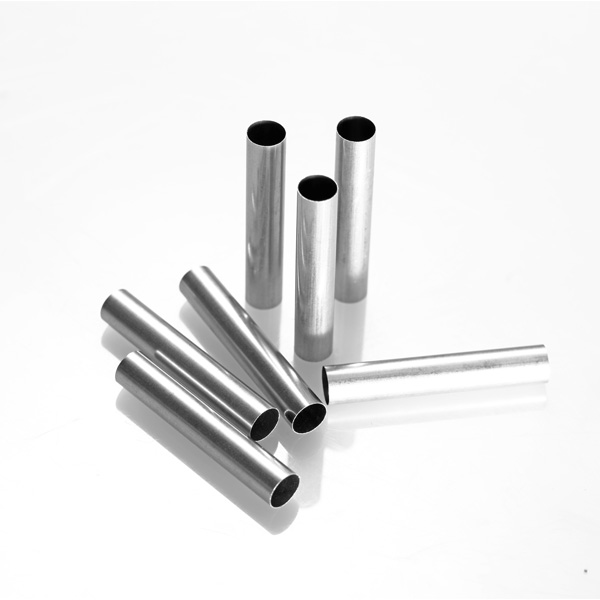

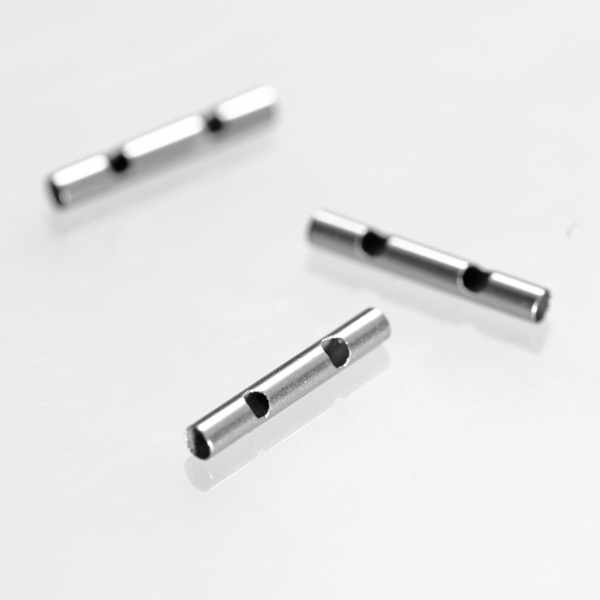

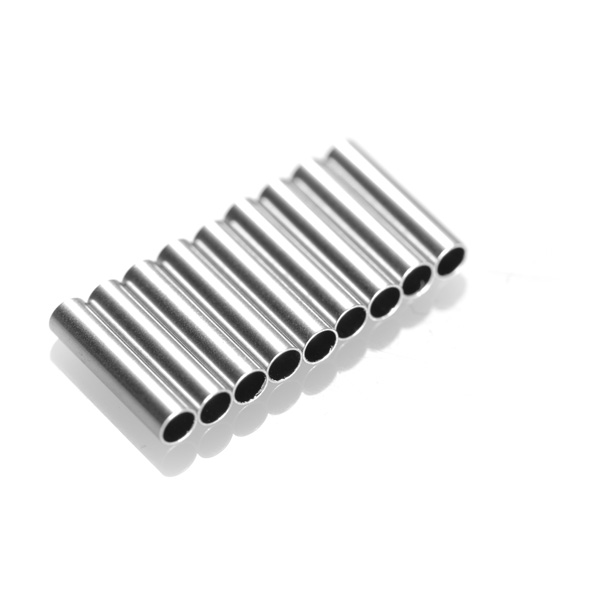

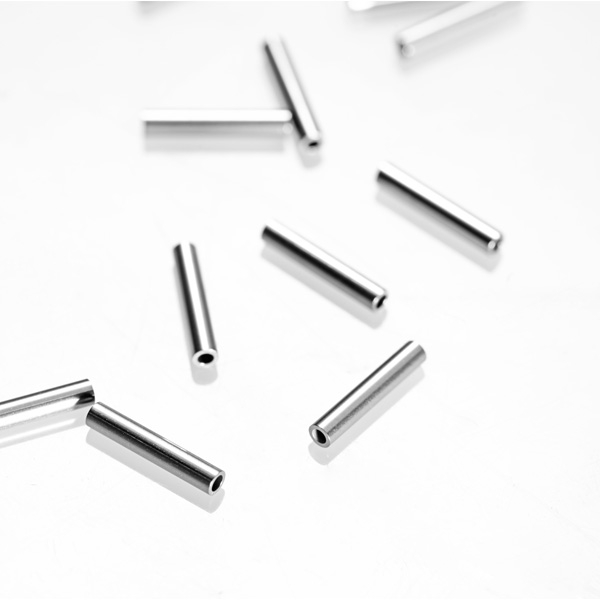

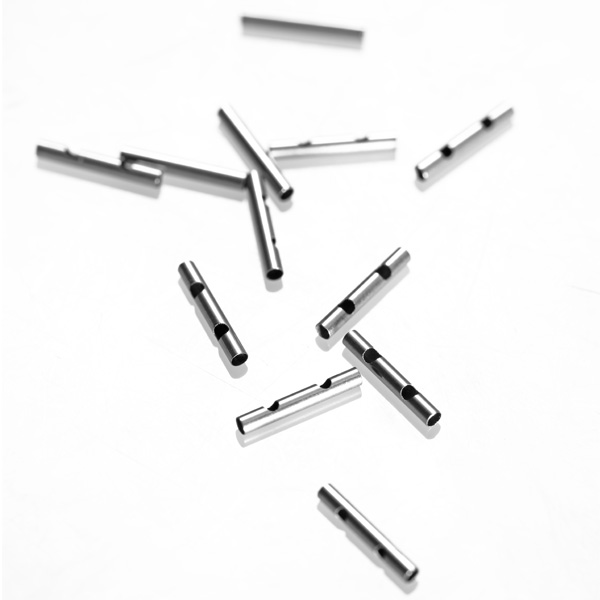

Stainless steel medical tubes available as thin wall tubes in seamless or welded redrawn condition or as seamless thick wall tubes. Medical tubes are available in a range of stainless steels and delivered with cold drawn, ground, extremely polished or bright surface, relying on size and wall thickness.
Huashang stainless steel medical tube is well-known for its flexibility, rotproofness, high-temperature resistance, tensile stress, and waterproofness. Medical tubing is characterized by tight tolerances, the minimum OD can be tailored into 0.19mm, with wall thickness at 0.02mm.
In order to optimize the uniform flow between liquid and gas from the sensor to measuring instrument, we use the bright annealing technique to make sure the internal and external surface of the medical grade stainless steel tubing smooth and highly polished, without leaving any oil or grease particles. HUASHANG as a professional medical grade tubing manufacturer, whose capillary tube applies to medical treatment and facility such as tubes for injection, puncture, cosmetology, and these industries require high quality medical stainless steel tubings.
Medical Stainless Steel Tubing Testing
As the medical stainless steel tubing supplier, Huashang can provide the following types of testing for medical tubes:
-
Eddy current test (on request)
-
Flaring test
-
Flattening test
-
Mechanical test
-
Microstructure test
-
Ultrasonic test (on request)
Medical Stainless Steel Tubing Size Range
-
Length: Cut to Length
-
OD: 0.19mm--10.0mm
-
W.T: 0.02mm--1.0mm
Medical Grade Stainless Steel Tubing Materials
Austenitic Stainless Steel:
TP304, TP304L, TP304H, TP304LN, TP316/TP316L, TP316H, TP316Ti, TP316LN, TP321, TP321H,TP317, TP317L, TP347, TP347H, TP310S, TP310H, TP904L, 254Mo.S30432, S31042, N08367
Duplex & Super Duplex Steel:
S31500, S32101, S32003, S32304, S31803, S32205, S32750, S32760
Nickel Alloy Steel:
N06600, N06601, N06625, N07718, N08800, N08825, N10276, N04400, N05500, N02200, N02201, N08028, N08810, N08811, N08020, N10624, N10629, N10675
If you need any kinds of medical grade stainless steel tubing, please contact us, as a professional medical tubing supplier, HUASHANG is willing to offer you high quality products.
