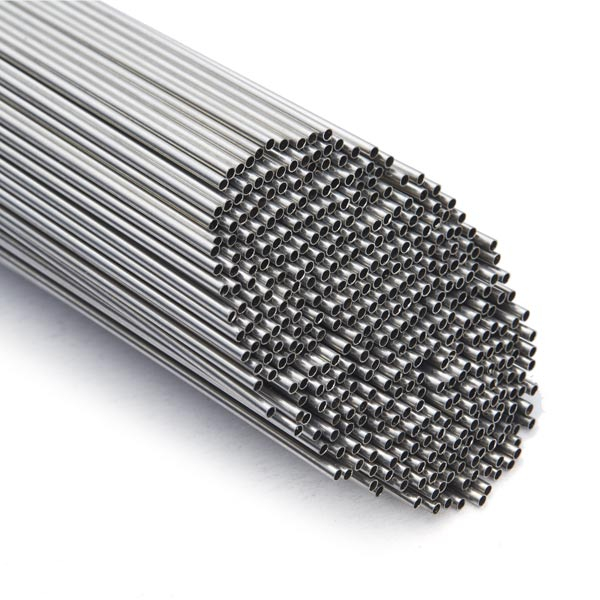

Whether you need to exchange device tubing as a section of your troubleshooting or want to minimize the dwell extent of your system as you pass to narrower columns, WENZHOU HUASHANG STEEL CO., LTD. has the first-rate tubing in the lengths. Tubing is precision cut, resulting in clean, square-cut ends besides ovality. The steel capillary tube is a small, thin-walled tube that is often used in medical devices and laboratory equipment. This steel capillary tube also features lean and easy floor finish.

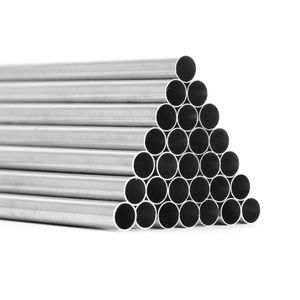

Capillary Tubing from WENZHOU HUASHANG STEEL CO., LTD. owns the following features as good flexibility, corrosion resistance, high-temperature resistance, tensile strength, water resistance, etc. For the capillary tube, the minimum size is up to 0.19mm and minimum thickness is 0.02mm, and our tolerance is very small. One of bright annealing advantages is that all bright annealed techniques makes a clean inner surface. High finish, no oil or grease particles ensure the optimal and uniform flow of liquids and gases from the sensor to the measuring instrument.
The stainless steel capillary tube has good corrosion resistance, high-temperature resistance, anti-wear, anti-pilling and good flexibility and other functions. It can also shield electromagnetic properties and be bent freely to form a wide variety of bending angles. The stainless steel capillary tube can be kept from deforming regardless of the rotation to each angle, bring convenient for our daily life.
Stainless steel capillary tube produces a radiation-resistant alloy steel in the air. Because of its aesthetically pleasing surface and good corrosion properties, the stainless steel capillary tube doesn't require color plating. In order to ensure the corrosion resistance of the stainless steel capillary, it is necessary to select a steel containing more than 12% chromium when selecting the steel.

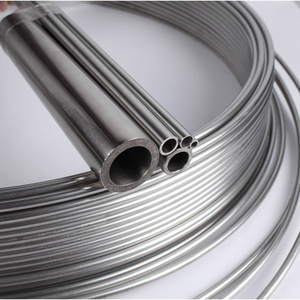

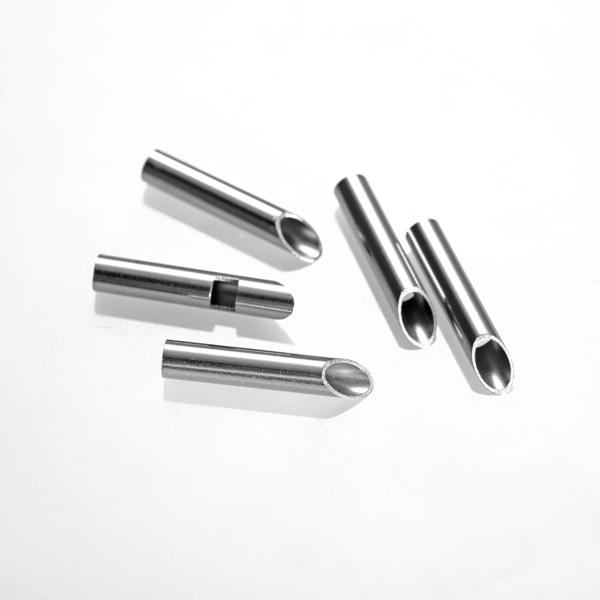

HUASHANG is a professional stainless steel capillary tube manufacturer, producing various metal capillary tube, including 304 stainless steel capillary tubes for sale, whose ss capillary tube is applied to many industries such as chemical, petroleum, electronics, medical, aerospace, air conditioning, medical equipment, pharmaceutical, boiler, and other fields. Also, there are a lot of products like injection needle tube, puncture needle tube, hexagon tube, beauty needle tube, temperature sensor tube, thermometer tube, thermostat tube, capillary coiled tubing, etc.
Austenitic Stainless Steel:
TP304, TP304L, TP304H, TP304LN, TP316/TP316L, TP316H, TP316Ti, TP316LN, TP321, TP321H, TP317, TP317L, TP347, TP347H, TP310S, TP310H, TP904L, 254Mo.S30432, S31042, N08367
S31500, S32101, S32003, S32304, S31803, S32205, S32750, S32760
Nickel Alloy Steel: N06600, N06601, N06625, N0771, N08800, N08825, N10276, N04400, N05500, N02200, N02201, N08028, N08810, N08811, N08020, N10624, N10629, N10675
1. silver gloss on the stainless steel surface
2. No toxic & non-polluting substances, environmentally friendly,
3. Mixed nickel and chrome combination, acid-resistant and alkali-resistant
4. Durable and not easily damaged
5. Strong anti-oxidation ability in a humid environment
6. hardness is 2 times higher than copper
Length: Cut to Length
|
Production name |
OD/mm |
OD tolerance/mm |
W.T/mm |
W.T tolerance/mm |
|
|
Capillary tube |
0.8-2.0 |
+-0.02 |
0.08 |
+-0.01 |
|
|
2.0-6.0 |
+-0.02 |
0.1-0.5 |
+-0.02 |
||
|
6.0-10.0 |
+-0.03 |
0.5-1.5 |
+-0.02 |
||
|
super capillary tube |
<0.8 |
+-0.02/or samler |
0.02-0.08 |
+-0.01/or smaller |
| Grade | C | Si | Mn | P | S | Cr | Ni | Mo | Ti | N | Cu | Fe | Al | Co | Zr | Nb | Tu | Va |
| Max | Max | Max | Max | Max | Max | Max | Max | Max | Max | |||||||||
| Nickel Alloy | ||||||||||||||||||
| Inconel 600/No6600/2.4816 | 0.15 | 0.5 | 1 | 0.015 | 14-17 | ≧72 | 0.5 | 6.0-10.0 | ||||||||||
| Inconel 600/No6601/2.4851 | 0.1 | 0.5 | 1.5 | 0.015 | 21-25 | 58-63 | 1 | 1.0-1.7 | ||||||||||
| Inconel 690/No6690 | 0.05 | 0.5 | 0.5 | 0.015 | 27-31 | 58 | 0.5 | 7.0-11.0 | ||||||||||
| Inconel 625/No6625/2.4856 | 0.1 | 0.5 | 0.5 | 0.015 | 0.015 | 20-23 | ≧58 | 8.0-10.0 | ≦0.4 | 5 | ≦0.4 | 3.15-4.15 | ||||||
| Inconel 718/No7718/2.4668 | 0.08 | 0.35 | 0.35 | 0.015 | 0.015 | 17-21 | 50-55 | 2.8-3.3 | 0.65-1.15 | 0.006 | 0.3 | Remainder | 0.2-0.8 | 4.75-5.5 | ||||
| Incoloy 800/No8800/1.4876 | 0.1 | 1 | 1.5 | 0.015 | 19-23 | 30-35 | 0.15-0.6 | 0.75 | ≧39.5 | 0.15-0.6 | ||||||||
| Incoloy 800H/No8810/1.4958 | 0.05-0.1 | 1 | 1.5 | 0.015 | 19-23 | 30-35 | 0.6-1.2 | 0.75 | ≧39.5 | 0.15-0.6 | 1 | |||||||
| Incoloy 825/No8825/2.4858 | 0.05 | 0.5 | 1 | 0.03 | 19.5-23.5 | 38-46 | 2.5-3.5 | 1.5-3 | ≧22 | 0.2 | ||||||||
| C-276/No10276/2.4819 | 0.01 | 0.08 | 1 | 0.04 | 0.03 | 14.5-16.5 | Balance | 15.0-17.0 | 4.0-7.0 | 2.5 | 3-4.5 | 0.35 | ||||||
| Monel 400/No4400/2.4360 | 0.3 | 0.5 | 2 | 0.024 | ≧63 | 28-34 | 2.5 | |||||||||||
| Monel K-500/No5500 | 0.18 | 0.5 | 1.5 | 0.01 | 63 | 0.35-0.85 | 27-33 | 2 | 2.3-3.15 | |||||||||
| Alloy 20/No8020/2.4660 | 0.07 | 1 | 2 | 0.045 | 0.035 | 19-21 | 32-38 | 2.0-3.0 | 3.0-4.0 | Balance | 8C-1 | |||||||
| Alloy 28/No8028 | 0.03 | 1 | 2.5 | 0.03 | 0.03 | 26-28 | 30-34 | 3.0-4.0 | 0.6-1.4 | Remainder | ||||||||
| Duplex Steel | ||||||||||||||||||
| S31803/1.4462 | 0.03 | 1 | 2 | 0.03 | 0.02 | 21-23 | 4.5-6.5 | 2.5-3.5 | 0.08-0.2 | |||||||||
| S32205/1.4462 | 0.03 | 1 | 2 | 0.03 | 0.02 | 22-23 | 4.5-6.5 | 3.0-3.5 | 0.14-0.2 | |||||||||
| S32750/1.4410 | 0.03 | 0.8 | 1.2 | 0.035 | 0.02 | 24-26 | 6.0-8.0 | 3.0-3.5 | 0.24-0.32 | 0.5 | ||||||||
| S32760/1.4501 | 0.05 | 1 | 1 | 0.03 | 0.01 | 24-26 | 6.0-8.0 | 3.0-4.0 | 0.2-0.3 | 0.5-1.0 | ||||||||
| Austenitic | ||||||||||||||||||
| 304/1.4301 | 0.08 | 1 | 2 | 0.045 | 0.03 | 18-20 | 8-10.5 | |||||||||||
| 304L/1.4307 | 0.035 | 1 | 2 | 0.045 | 0.03 | 18-20 | 8.0-12.0 | |||||||||||
| 304H/1.4948 | 0.04-0.1 | 1 | 2 | 0.045 | 0.03 | 18-20 | 8.0-11.0 | |||||||||||
| 316/1.4401 | 0.08 | 1 | 2 | 0.045 | 0.03 | 16-18 | 11.0-14.0 | 2.0-3.0 | ||||||||||
| 316L/1.4404 | 0.035 | 1 | 2 | 0.045 | 0.03 | 16-18 | 10.0-14.0 | 2.0-3.0 | ||||||||||
| 316H/1.4919 | 0.04-0.1 | 1 | 2 | 0.045 | 0.03 | 16-18 | 10.0-14.0 | 2.0-3.0 | 0.1 | |||||||||
| 316Ti/1.4571 | 0.08 | 1 | 2 | 0.045 | 0.03 | 16-18 | 10.0-14.0 | 2.0-3.0 | 0.7>5x(C+N) | |||||||||
| 321/1.4541 | 0.08 | 1 | 2 | 0.045 | 0.03 | 17-19 | 9.0-12.0 | 0.7>5x(C+N) | ||||||||||
| 321H/1.4878 | 0.04-0.1 | 1 | 2 | 0.045 | 0.03 | 17-19 | 9.0-12.0 | H | ||||||||||
| 317/1.4449 | 0.08 | 1 | 2 | 0.045 | 0.03 | 18-20 | 11.0-14.0 | 3.0-4.0 | ||||||||||
| 317L/1.4438 | 0.035 | 1 | 2 | 0.045 | 0.03 | 18-20 | 11.0-15.0 | 3.0-4.0 | ||||||||||
| 347/1.4550 | 0.08 | 1 | 2 | 0.045 | 0.03 | 17-19 | 9.0-12.0 | |||||||||||
| 347H/1.4912 | 0.04-0.1 | 1 | 2 | 0.045 | 0.03 | 17-19 | 9.0-13.0 | |||||||||||
| 310S/1.4845 | 0.08 | 1 | 2 | 0.045 | 0.03 | 24-26 | 19.0-22.0 | 0.11 | ||||||||||
| 310H/1.4845 | 0.04-0.1 | 1 | 2 | 0.045 | 0.03 | 24-26 | 19.0-22.0 | |||||||||||
| N08904(904L)/1.4539 | 0.02 | 1 | 2 | 0.045 | 0.03 | 19-23 | 23.0-28.0 | 4.0-5.0 | 0.1 | 1.0-2.0 | ||||||||
| S31254(254Mo)/1.4547 | 0.02 | 0.8 | 1 | 0.03 | 0.01 | 19.5-20.5 | 17.5-18.5 | 6.0-6.5 | 0.18-0.22 | 0.5-1.0 | ||||||||
