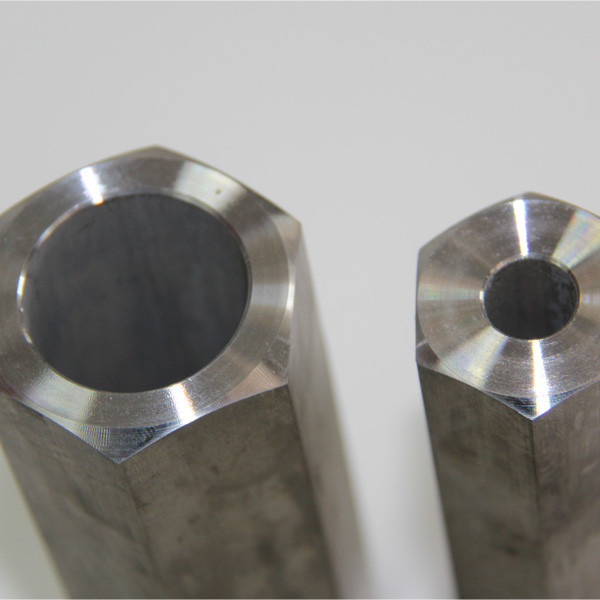

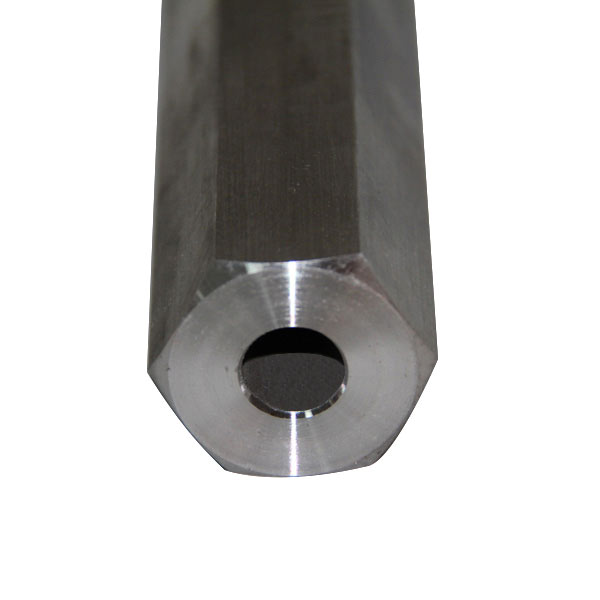

Hexagon Steel Tubing

Product description

Hexagon steel tube/Hex tube steel is the general name of all section shape of steel tube except circular tube. There are welded shaped hexagon tubes and seamless shaped tubes. Due to different types of materials, hexagon steel tube generally use 304 material, because 200, 201 material strong in hardness making forming difficulty. Know more from the hexagonal steel tube supplier: http://www.sstubecn.com/introduction-of-hexagonal-steel-tube.html. If you are interested in our hexagon steel pipe, you can leave a message below and contact us.

Hexagon Steel Tubing Sizes

OD: MAX106.5mm*ID MAX80mm
LENGTH: CUT TO LENGTH

Hexagon Steel Tubing Materials

Hexagonal tubing made from various materials have differernt features, mainly materials are as follows:
304 TP304/304L, TP316L

Hexagon Steel Tubing Application Area

Internal hexagon steel tube is widely used in various structural parts, tools and mechanical parts. Compared with circular tube, hexagon steel tube generally has a larger moment of inertia and section modulus, has a larger bending and torsion resistance. Steel hex tube can greatly reduce the weight of the structure, and save steel use. Hexagon steel tube can be used for oil, Chemical industry, Medical devices, aerospace, nuclear power, shipping, boilers, heat exchangers, condenser, water conservancy, electricity industry etc.

1. Hexagon steel tube for heat exchanger: size from outer diameter 10-60mm, number of teeth can be arbitrarily selected according to user's requirements.

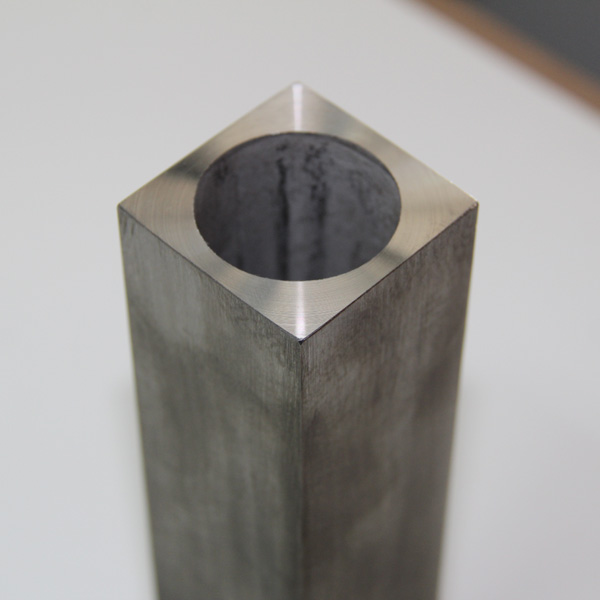

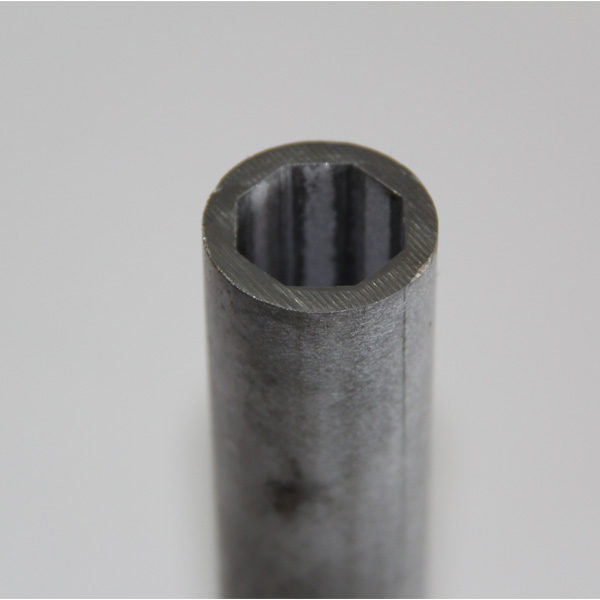

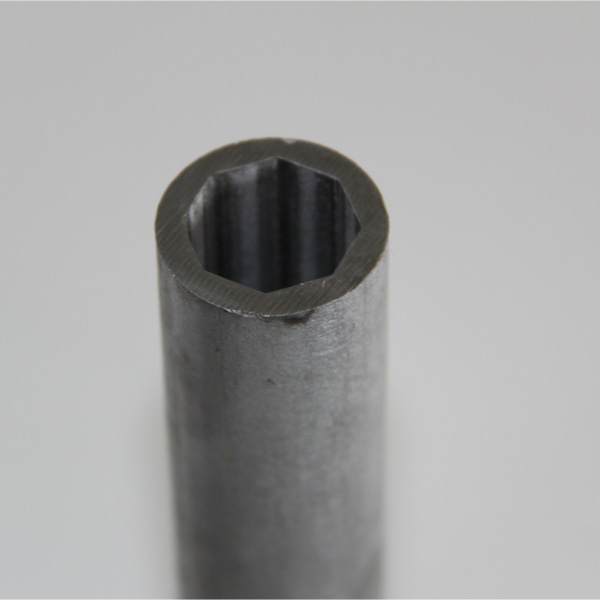

2. Small diameter special hexagon steel tube: such as outer circle inner hexagon, round outside but square inside, outer hexagon inner circle and so on. Specifications from the outer diameter of 8-60mm, the inner hole according to customer requirements.
3. Isofrequency shaped hexagon steel tube: The variety of hexagon steel tubing can be determined according to the user's requirements for hexagon steel tubing, and according to requirements to produce non-standard welded pipe.
4. Inner spiral hexagon steel tube: Specifications from 10-60mm outside diameter according to customer requirements.
5. Small diameter thin wall hexagon steel tube: Specification from outside diameter 3mm, wall thickness from 0.5mm.

Welcome new and old friends send your inquiries, as a very professional hexagonal stainless steel tubing manufacturer, we will be glad to offer good service, reasonable prices, complete specifications, high quality hexagon steel tubes. Looking forward to your visit!
