In the world of metal fabrication and engineering, selecting the right shape and material for a tube can make all the difference in terms of performance, strength, and efficiency. While round and square tubes are more commonly used, hexagonal tubing—or hex tubing—has carved a unique space for itself in specialized design applications where structural stability, multi-faceted strength, and geometric precision are critical.
Hex tubing is not just an aesthetic alternative; it is a purpose-driven structural form that offers functional advantages for specific engineering needs. From aerospace and automotive components to architectural frameworks and advanced industrial systems, the use of hex tubing continues to grow thanks to its stability, load-distributing geometry, and adaptability in intricate design contexts.
This article explores how hex tubing contributes to structural integrity, the reasons why it's preferred in certain applications, and the role it plays in industries that demand reliable, compact, and high-performing components.

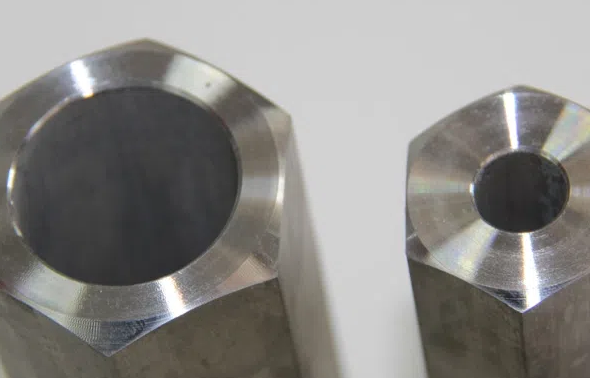

Hex tubing gets its name from its six-sided, honeycomb-like cross-section. This geometric form is more than just visually distinctive—it is structurally efficient. In nature and engineering alike, hexagons are revered for their load-bearing strength and material efficiency. Just as bees build hexagonal honeycombs to maximize space and stability while using minimal material, engineers choose hex tubing for its ability to distribute stress evenly and support dynamic forces from multiple directions.
Unlike round tubing, which has a uniform radius, or square tubing, which concentrates stress at corners, hex tubing balances these forces more effectively by dividing stress across six symmetrical sides. This makes it highly suitable for applications where weight, vibration, torque, or compression must be managed simultaneously.
The six-sided shape allows for even load distribution across all faces, which minimizes the risk of deformation under stress. This is particularly useful in systems subjected to multi-directional forces or torsional loads, such as in high-performance machinery, automotive components, or robotic arms.
The internal geometry of hex tubing ensures that when pressure is applied—whether from the inside or outside—it does not concentrate at a single point, unlike traditional rectangular or square profiles. This helps reduce fatigue over time, leading to longer life cycles and greater resilience in the finished structure.
Hex tubing is inherently more resistant to twisting or rotational distortion than round tubing of similar material and size. This torsional rigidity is critical in designs involving torque transmission, rotating shafts, or structural members that are under continuous mechanical movement. For example, in drivetrain systems, conveyor structures, or lift components, hex tubing offers more reliable performance with less chance of warping or failure.
The shape of hex tubing makes it easy to align and interlock with other components, especially in modular or repeating structures. This is why it is often chosen for precision assemblies, including those found in aerospace or medical device manufacturing, where even the smallest misalignment can result in system errors.
The flat faces of the hexagon allow for tight surface contact, enabling more secure joins when welding, bolting, or mechanically fastening the tube to adjoining structures. This enhances the overall structural unity of complex assemblies.
Hex tubing offers a compact footprint without sacrificing strength. The combination of internal hollow space and geometrically efficient walls provides excellent strength-to-weight characteristics. For applications such as drone frames, lightweight aircraft components, or portable support systems, hex tubing allows for the creation of durable structures without adding unnecessary mass.
This makes hex tubing especially beneficial where material economy, portability, or aerodynamic considerations are essential.
While not as universally used as round or square tubing, hex tubing is indispensable in certain sectors due to its mechanical properties and space-efficient design.
Aircraft and spacecraft often require components that are lightweight yet highly resistant to vibration, torque, and stress during flight. Hex tubing finds its place in airframes, structural panels, and mechanical subsystems where precision and performance are paramount. The ability to integrate tightly and resist torsion makes it ideal for supporting structural frames and instrument housings in aerial vehicles.
In the automotive industry—especially motorsports—hex tubing is used in chassis reinforcements, suspension systems, and drivetrain elements. Its strength and reduced weight help improve vehicle performance while withstanding the high dynamic forces generated during acceleration, braking, and cornering. Custom builders and performance engineers also value its unique appearance and functional efficiency.
Precision is everything in medical device manufacturing, and hex tubing offers a stable, easily aligned platform for creating frames, housings, and support arms in imaging machines, surgical equipment, and diagnostic tools. Its hygienic surface, when made from materials like stainless steel, adds to its suitability in sterile environments.
Modern automation systems often rely on modular assemblies that must be both strong and adjustable. Hex tubing supports the construction of robotic arms, sensor mounts, and motion systems where multiple joints and direction shifts are required. The geometric versatility of hex tubing ensures repeatability and accuracy, which is essential for robotic operations.
In architectural or artistic structures, hex tubing offers both visual appeal and functional value. Its honeycomb-like profile can add a modern, industrial aesthetic while simultaneously enhancing strength. Architects may use it in support columns, trusses, or decorative frameworks that need to look good and hold up under weight or weather stress.
While hex tubing can be made from a range of materials—such as aluminum, titanium, and carbon steel—stainless steel remains one of the most popular choices. This is due to its unique combination of corrosion resistance, durability, and strength.
When stainless steel is used to produce hex tubing, particularly in bright annealed or seamless forms, the resulting component is not only robust but also resistant to environmental and chemical corrosion. This makes it suitable for outdoor, marine, or high-sterility environments, extending its lifespan and reliability in a wide range of applications.
Additionally, stainless steel hex tubing is easy to fabricate, weld, and polish, making it an ideal choice for both structural and decorative elements.
Hex tubing requires extremely precise fabrication to ensure that all six sides are uniform and the tube meets tight tolerances. Unlike circular tubes, which can accommodate slight variations in diameter, hex tubes must maintain consistent angular dimensions to perform effectively in load-bearing and interlocking applications.
Modern manufacturing processes such as cold drawing, laser cutting, and CNC-controlled extrusion play a vital role in producing high-quality hex tubing. This precision ensures that the finished tubes can be trusted for high-performance tasks without defects or inconsistencies.
In addition to production quality, surface finishing methods—such as bright annealing—enhance both the appearance and durability of hex tubing, making it ready for use in even the most demanding environments.
Hex tubing is more than a unique geometric choice—it delivers strength, structural stability, and engineering efficiency. Its ability to withstand stress, resist deformation, and integrate with precision fabrication methods makes it ideal for applications ranging from lightweight drones and robotic systems to heavy industrial machinery. As industries increasingly value precision and modularity, hex tubing stands out as a compact yet robust solution that meets demanding performance requirements.
A leading name in stainless steel hex tubing is Huashang Steel, recognized for their expertise in precision manufacturing and commitment to quality. By focusing on strength, accuracy, and innovation, Huashang Steel provides high-performance tubing trusted across sectors such as aerospace and medical technology. For those seeking reliable, high-quality structural components, Huashang Steel’s hex tubing offers a strong foundation for advanced, efficient designs.
