UNS S31254/DIN W. NR. 1.454
Huashang
7304419000

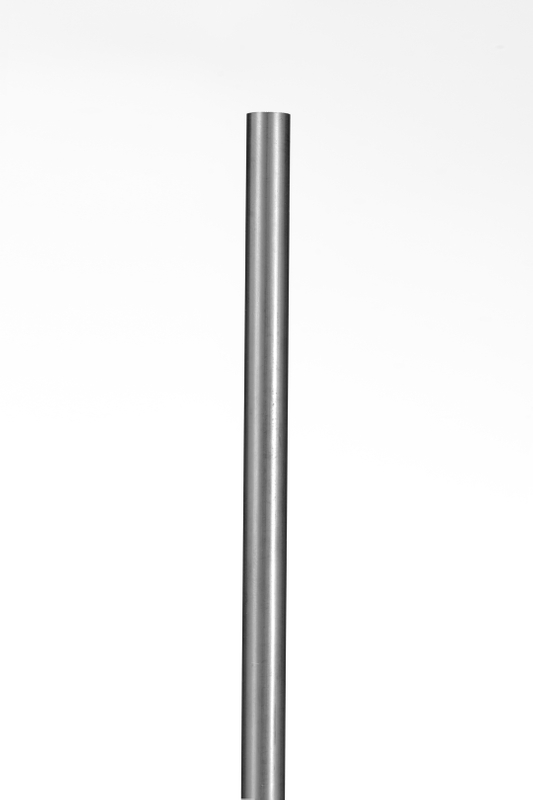

UNS S31254/DIN W. NR. 1.4547 (254SMO) Stainless Steel Seamless Pipe is a cost-effective 6Mo super austenitic stainless steel tube with a PREN (Pitting Resistance Equivalent Number) of ≥42. Engineered for exceptional corrosion resistance, this pipe is an alternative to expensive nickel alloys and titanium alloys in aggressive environments—delivering superior value without compromising performance.
Compliant with ASTM A 312 and A 999 standards, the pipe features OD from 1mm to 325mm, wall thickness from 0.2mm to 20mm, and maximum length up to 12m (custom lengths available). Its physical properties include a density of 7.94g/cm³ and a melting range of 1320-1390℃. The chemical composition is optimized for corrosion resistance: Fe (balance), Ni 17.50-18.50%, Cr 19.50-20.50%, Cu 0.50-1.00%, Mo 6.00-6.50%, Mn ≤1.00%, Si ≤0.80%, C ≤0.02%, N 0.18-0.22%, P ≤0.03%, and S ≤0.01%—ensuring resistance to uniform corrosion, pitting, crevice corrosion, and stress corrosion cracking.
With PREN ≥42, the pipe resists halide-induced corrosion (hydrochloric acid, hydrofluoric acid, phosphoric acid, chloride-contaminated sulfuric acid) and performs reliably in seawater, brine, and chemical process streams. It outperforms standard 316L stainless steel in aggressive environments.
As a 6Mo super austenitic stainless steel, it offers the corrosion resistance of high-cost nickel alloys (e.g., Alloy 625) and titanium alloys at a lower price point—reducing material costs without sacrificing durability or service life.
Manufactured via cold drawing and cold rolling processes, the pipe is produced in a facility with 18 seamless production lines, 3 perforation production lines, and an annual capacity of 30,000 tons. Surface treatments include polishing, annealing, bright annealing, and acid pickling—suitable for hygiene-sensitive (food, pharmaceutical) and corrosion-resistant applications.
The factory holds ISO9001:2015 certification and approvals from BV, ABS, CCS, DNV/GL, TUV, LR, and KR. Raw materials undergo MTC (PMI) checks, tensile strength tests, and surface/dimension inspections. Pre-shipment inspections include non-destructive testing (UT, ET), hardness testing, and hydraulic testing—with support for third-party audits. The pipe is in stock (10,000,000 units available) for quick delivery.
A 6Mo cost savings super austenitic stainless steel with PREN ≥ 42
S31254 is a high performance austenitic stainless steel.Its high alloying elements content imparts excellentresistance to uniform, pitting and crevice corrosion, and stress corrosion cracking.
It was originally developed to withstand the corrosion of acids, especially in the presence of halide ions,
such as hydrochloric acid,hydrofluoric acid, phosphoric acid, and sulphuric acid contaminated with chlorides.
In certain environments it is an alternative to more expensive Alloy alloys and titanium alloys.
APPLICATIONS
Chemical processing equipment, pulp and paper industry bleaching equipment, desalination plant seawater piping, food and beverage industry, pharmaceuticals, and hydrometallurgy.
This seamless pipe is widely used in chemical processing equipment (reactors, piping, valves), pulp and paper industry bleaching equipment (chlorine dioxide systems), desalination plant seawater piping (high-salinity environments), food and beverage industry (hygienic, corrosion-resistant piping), pharmaceuticals (cleanroom-compatible systems), and hydrometallurgy (acid leaching processes).
In desalination plants, it resists seawater corrosion and biofouling. In pharmaceutical manufacturing, its smooth surface and corrosion resistance ensure product purity. For chemical processing, it handles aggressive acids and solvents, reducing maintenance and replacement costs.
SPECIFICATIONS OF UNS S31254/DIN W. NR. 1.4547 SEAMLESS PIPE
OD: 1mm-325mm
WALL THICKNESS ：0.2mm-20mm
Length : 12m (Special specifications are available as required)
SPECIFICATIONS | PHYSICAL PROPERTIES | ||||
Seamless pipe and tube | ASTM A 312, A 999 | DENSITY | 7.94 g/cm 3 | MELTING | 1320-1390℃ |
CHEMICAL COMPOSITION | |||||||||||
% | Fe | Ni | Cr | Cu | Mo | Mn | Si | c | N | P | S |
MIN | BALANCE | 17.50 | 19.50 | 0.50 | 6.00 | 0.18 | |||||
MAX | 18.50 | 20.50 | 1.00 | 6.50 | 1.00 | 0.80 | 0.02 | 0.22 | 0.03 | 0.01 | |
Brand Name | huashang |
Product Name | 1.4547 – 254SMO – S31254 Stainless Steel Seamless Pipe |
Thickness | Customizable |
Outer Diameter | 1mm-325mm |
Length | Customizable |
Process | Cold drawn, Cold rolled |
Surface Treatment | Polishing, annealing, bright annealing and acid pickling |
Ends | Beveled or plain end, square cut, burr free ,plastic cap at both end |
Material | Nickel Alloy |
Price | Depending on quantity |
Payment Terms | No Limit |
Delivery Time | 15~100 days depending on quantity |
Packaging Details | Customizable |
Our pipe factory has 296 employees ,including 4 senior engineers,18 engineers and 38 professional technicians.
We can produces 30,000tons of austenitic steel and duplex steel pipes annually with 18 seamless production lines and 3 perforation production lines.
Our pipe factory has been certified to the ISO9001:2015 quality management system and certified by various classification societies (such as BV, ABS,CCS,DNV/GL,TUV,LR,KR etc).
Production Processes |
Quality Control Of Huashang Duplex Steel Seamless Pipe |
1. Raw Materials
Our raw materials come from well-know mills in China, such as Tingshan, Tisco, Bao Steel, Yongxing, Walsn.....
We will do MTC checking (PMI), tensile strength test, surface/dimension inspection for raw material.
2. Production
Specially assigned person shall follow up and check the process flow card and finally keep the copy.
3. Before Shipment
Our quality inspection team responsible for different categories of products. We will conduct routine appearance testing, PMI testing, non-destructive testing. We also equipped with a professional lab that can do physical and chemical properties test. we also can accept the third inspection, such as BV, LR, TUV, ABS, DNV-GL ect.
METALLOGRAPHIC TEST
IMPACT TEST
TENSILE TEST
EDDY CURRENT TESTING
ULTRASONIC TESTING
HARDNESS TEST
TEST BLOCK MEASUREMENT SIZE
MEASURE AFTER PULLING
PULL UP TEST BLOCK
Packaging and Containerization |
PREN (Pitting Resistance Equivalent Number) is a measure of pitting corrosion resistance. A PREN ≥42 indicates exceptional resistance to chloride-induced pitting and crevice corrosion—critical for seawater, brine, and chemical applications where standard stainless steels fail.
Payment terms are flexible and not limited to specific conditions. Options include T/T (telegraphic transfer), L/C (letter of credit), and other mutually agreed terms. Contact the sales team to discuss tailored payment plans.
Delivery time ranges from 15 to 100 days based on order quantity, custom specifications (e.g., special OD/wall thickness, surface treatments), and production schedules. In-stock standard sizes are shipped within 7-15 days.
