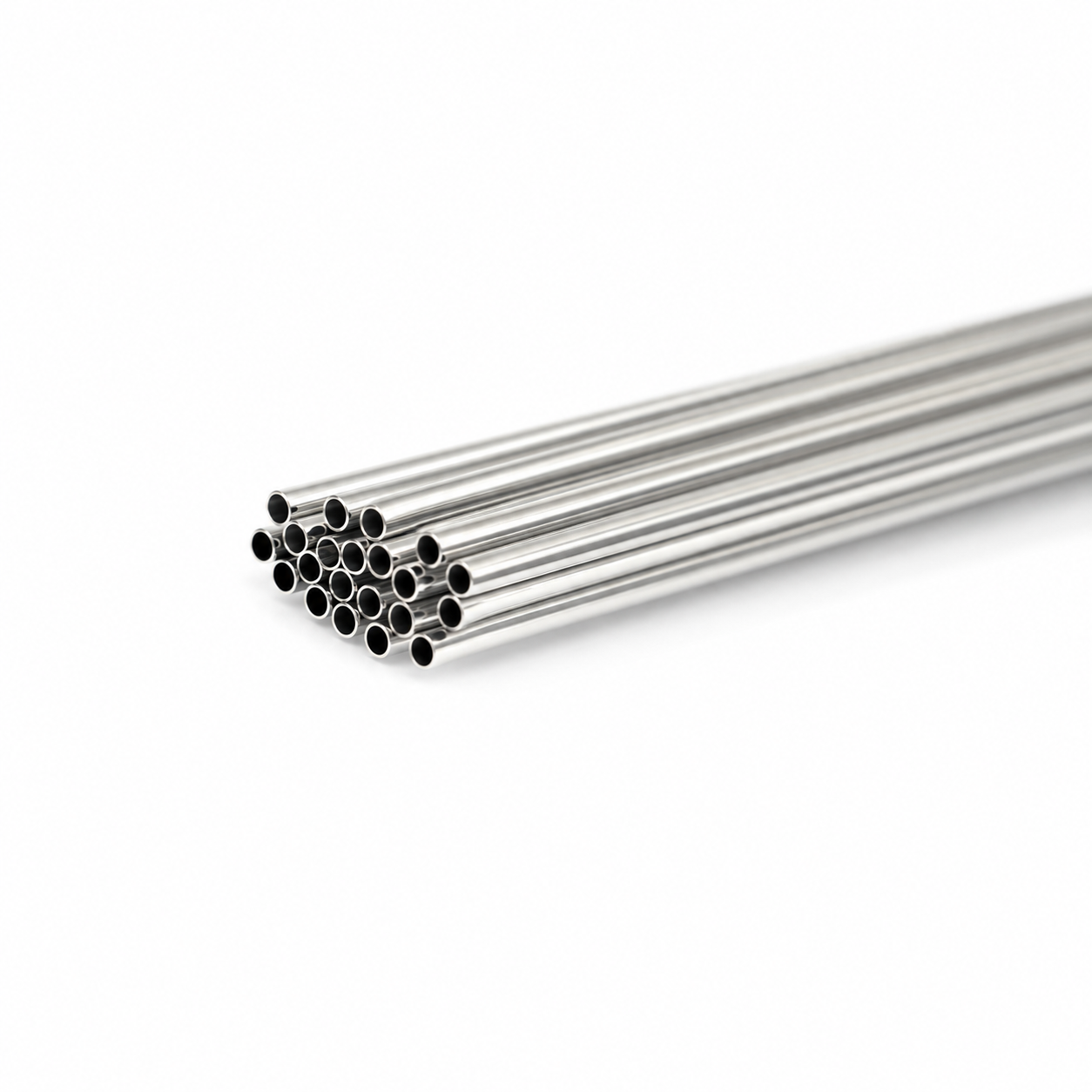

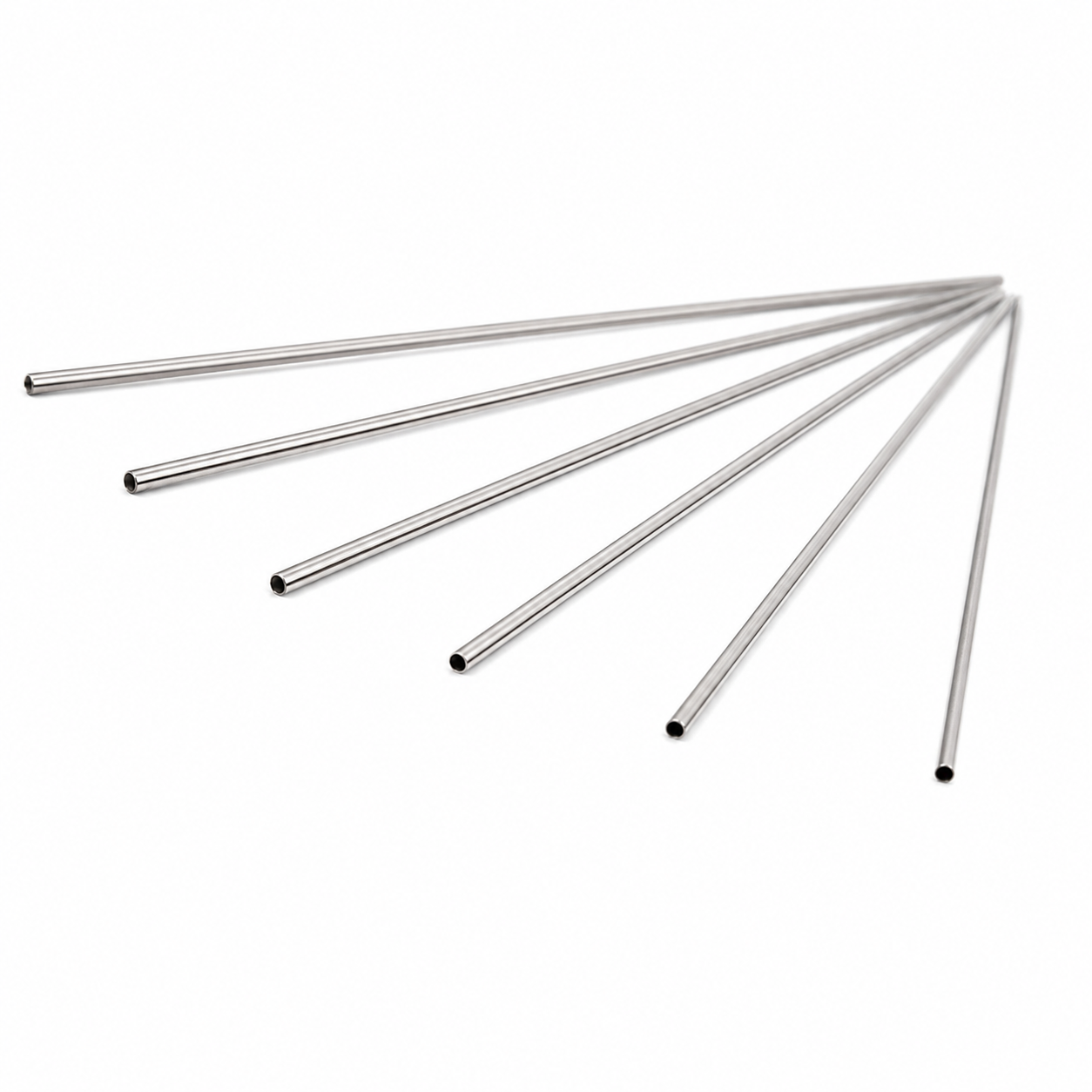

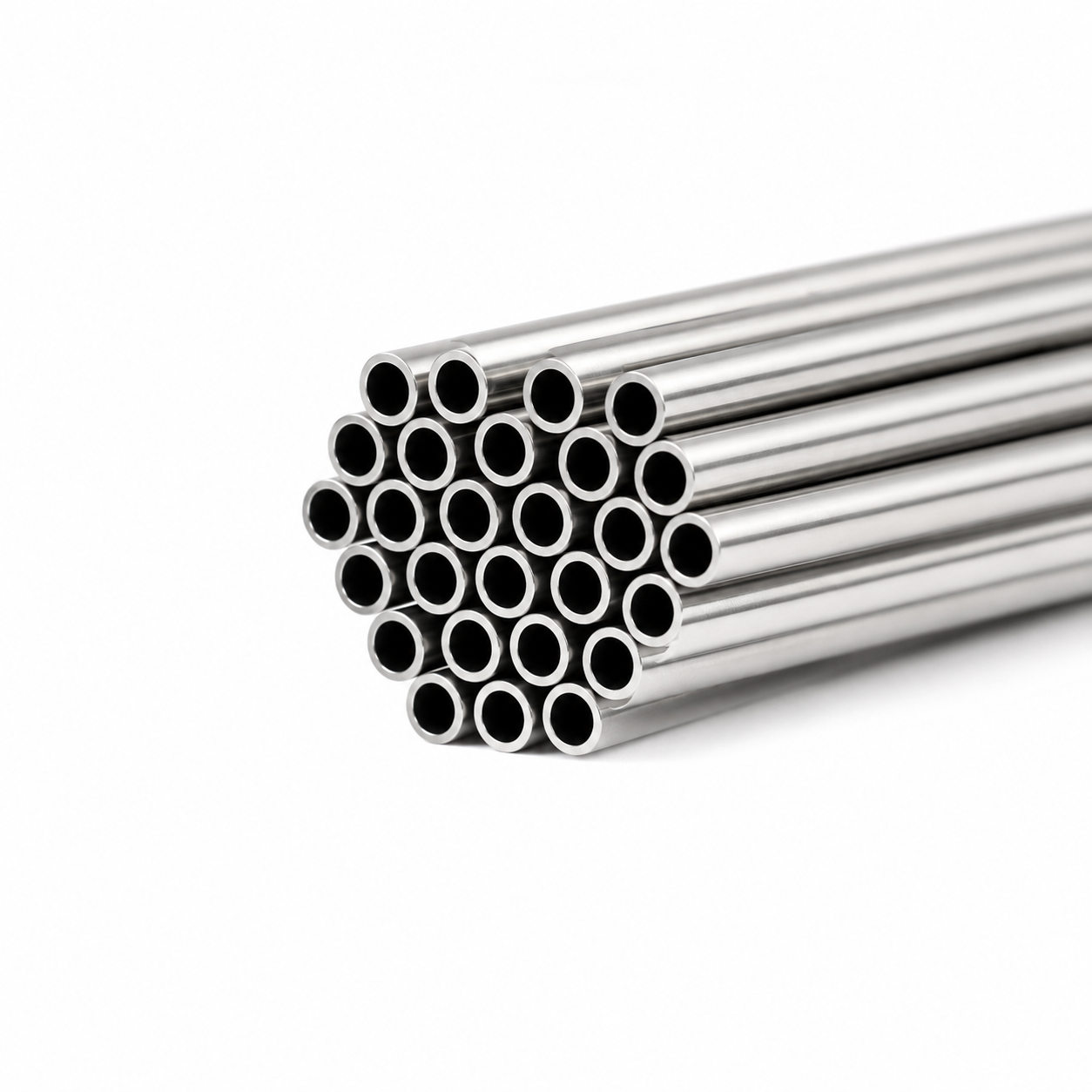

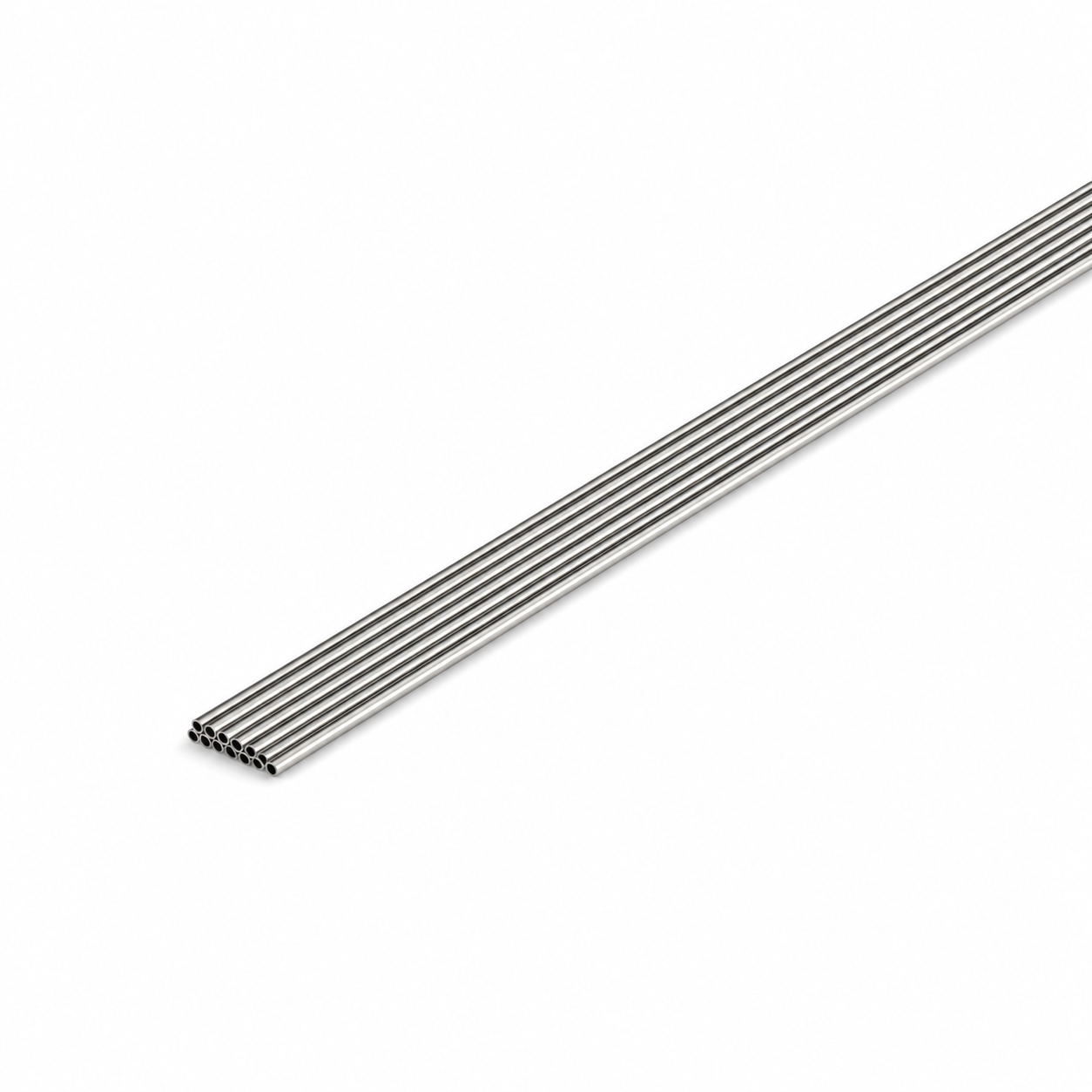

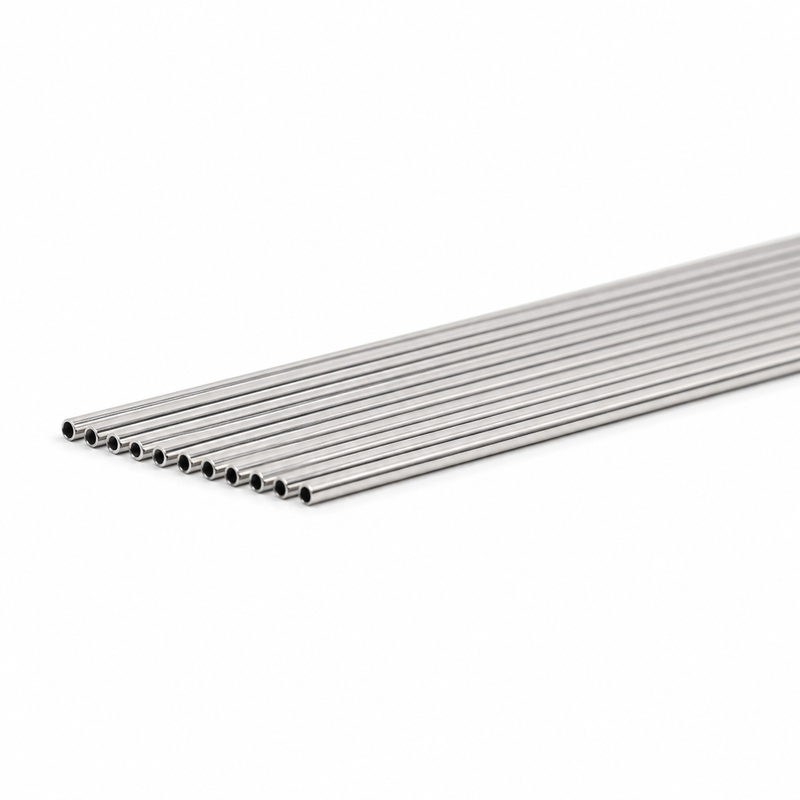

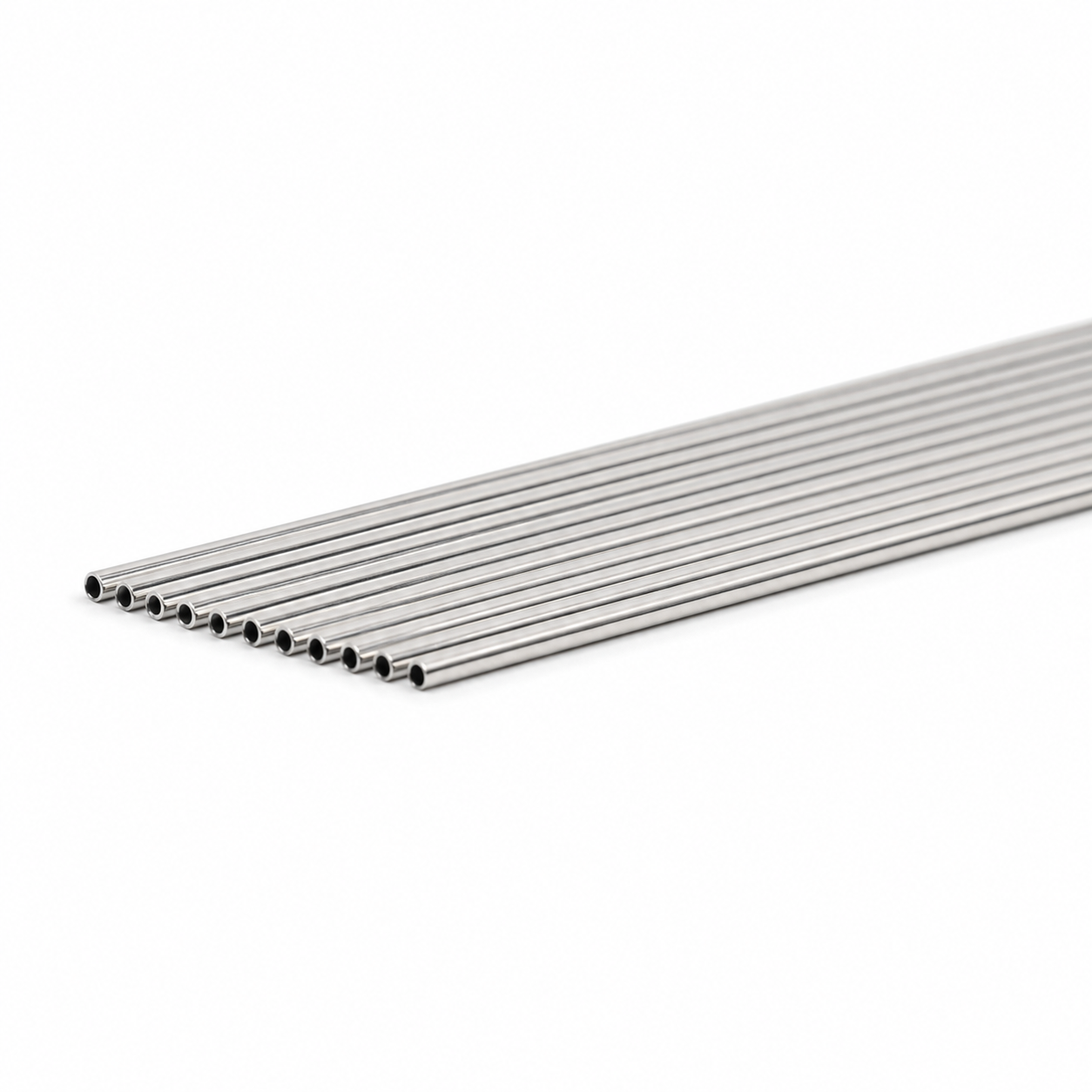

Titanium micro tube is a high-precision thin-wall tube made from titanium and titanium alloy materials. The material features a high strength-to-weight ratio, corrosion resistance, and compatibility with biological and chemical environments, making it a selected option for critical installations. Manufactured with advanced cold drawing, vacuum annealing and precision sizing technology, our tubing reaches outside diameters as small as 0.20 mm and wall thicknesses down to 0.05 mm. Compared with stainless steel tubing, titanium micro tubes are 45% lighter by weight, with stable performance under extreme temperature and corrosive conditions.
Titanium Grade 1 (UNS R50250): Maximum ductility, high formability, corrosion resistance in harsh environments.
Titanium Grade 2 (UNS R50400): Most commonly used titanium grade, with balanced strength and corrosion resistance.
Titanium Grade 3 (UNS R50550): Higher strength than Grade 2.
Titanium Grade 4 (UNS R50700): Highest strength among pure titanium grades.
Titanium Grade 5 (Ti-6Al-4V, UNS R56400): Aerospace-grade titanium alloy, with high strength, fatigue resistance and weight reduction performance.
Titanium Grade 9 (Ti-3Al-2.5V, UNS R56320): High formability and high pressure capability, designed for lightweight tubing applications.
 |  |  |
All production follows established industry standards:
ASTM Standards: ASTM B338 Titanium Tube, ASTM B861 Seamless Titanium Tube, ASTM B862 Welded Titanium Tube, ASTM F67 Medical Titanium, ASTM F136 Titanium Medical Alloy
ASME Standards: ASME SB338, ASME SB861, ASME SB862
Parameter | Range |
Outside Diameter (OD) | 0.20 mm – 20.00 mm |
Inside Diameter (ID) | 0.05 mm – 18.00 mm |
Wall Thickness (WT) | 0.05 mm – 2.00 mm |
Length | Up to 6000 mm |
Tolerance | ±0.005 mm to ±0.05 mm |
Surface Finish | Bright Annealed, Pickled, Polished |
OD × WT (mm) |
0.20 × 0.05 |
0.30 × 0.05 |
0.50 × 0.10 |
0.71 × 0.10 |
1.00 × 0.15 |
1.50 × 0.20 |
2.00 × 0.20 |
3.00 × 0.30 |
4.00 × 0.50 |
6.00 × 0.50 |
Custom dimensions are available according to customer drawings.
Our standardized production flow ensures consistent output: Titanium Sponge Melting, Billet Forging, Tube Extrusion, Multi-Pass Cold Drawing, Vacuum Annealing, Precision Sizing, Straightening, Surface Treatment, Ultrasonic Cleaning, Inspection & Testing, Marking, Packaging.
Every titanium micro tube is inspected according to ASTM, ASME, aerospace, medical and customer-specific standards. Available testing items include dimensional inspection, chemical composition analysis with heat number traceability, 100% PMI testing for critical projects, mechanical testing, metallurgical examination, corrosion testing, and non-destructive testing such as eddy current testing and ultrasonic testing. Advanced testing options for specialized projects cover cryogenic testing, surface roughness testing and cleanliness inspection.
 |  |  |
 |  |  |
 |  |  |
Lightweight structure: Titanium is approximately 45% lighter than stainless steel while retaining strength.
Corrosion resistance: Compatible with seawater, chlorides, marine atmospheres and oxidizing chemicals.
High strength-to-weight ratio: Suitable for weight-sensitive installations.
Biocompatibility: Compatible with medical device and implant component use cases.
Fatigue resistance: Stable performance under cyclic loading conditions.
Cryogenic performance: Retains toughness and strength at extremely low temperatures.
Aerospace Industry: aircraft cooling systems, aerospace thermal management, fuel delivery systems, hydraulic systems, satellite components.
Medical Industry: catheter components, surgical instruments, medical fluid transfer systems, implantable devices.
Hydrogen Energy Systems: hydrogen cooling systems, hydrogen refueling stations, electrolyzer equipment, fuel cell systems.
Heat Exchanger Industry: titanium heat exchangers, seawater heat exchangers, compact heat exchangers, microtube heat exchangers.
Marine & Offshore Industry: seawater cooling systems, offshore platforms, desalination equipment.
Semiconductor Industry: ultra-high purity gas systems, semiconductor manufacturing equipment.
Chemical Processing Industry: corrosion resistant process tubing, chemical transfer systems, acid handling equipment.
Defense & Military Applications: lightweight fluid systems, aerospace defense equipment, high reliability tubing assemblies.
Our titanium micro tubes support a minimum outside diameter of 0.20 mm, with wall thicknesses as low as 0.05 mm. Dimensional tolerance ranges from ±0.005 mm to ±0.05 mm based on specific specifications.
We supply commercially pure titanium grades 1, 2, 3 and 4, as well as titanium alloy grades 5 (Ti-6Al-4V) and 9 (Ti-3Al-2.5V). Grade selection can be adjusted based on application requirements for strength, formability and corrosion resistance.
All titanium micro tubes are manufactured in line with ASTM B338, ASTM B861, ASTM B862, ASTM F67, ASTM F136, ASME SB338, ASME SB861 and ASME SB862 standards. Additional industry-specific requirements can be accommodated per customer requests.
Yes, custom dimensions are available according to customer drawings. We support both prototype development and mass production runs for commercial procurement projects.
