What Are The Main Components of A Heat Exchanger?

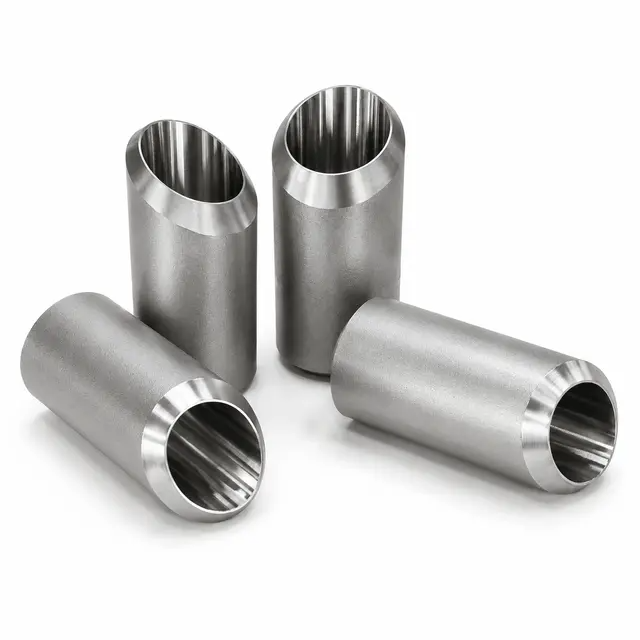

Have you ever wondered how heat exchangers keep engines and factories running smoothly? These devices transfer heat efficiently between fluids. Fabricate Heat Exchanger Components are key to their success.

In this post, you’ll learn about the main parts of heat exchangers and why quality fabrication matters. We’ll explore tubes, shells, gaskets, and more.

Core Components of a Heat Exchanger

Tubes and Tube Bundles: Materials and Fabrication

Tubes form the heart of most heat exchangers. They carry the fluid that transfers heat. Common materials include stainless steel, copper alloys, and titanium, chosen for strength and corrosion resistance. Fabrication involves precise cutting, bending, and welding to ensure leak-proof joints and optimal flow. Tube bundles group many tubes, increasing surface area for heat transfer. They must be assembled carefully to avoid damage and maintain spacing.

Shell: Design and Manufacturing Considerations

The shell surrounds the tubes and holds the fluid that exchanges heat with the tube-side fluid. It must withstand pressure and temperature changes. Designs vary: cylindrical shells are most common, sometimes with heads at both ends for fluid entry and exit. Manufacturing requires forming the shell from plates or sheets, welding seams, and adding nozzles. Material choice depends on operating conditions, often carbon steel or stainless steel. Proper design ensures minimal thermal stress and easy maintenance.

Tube Sheets: Role and Fabrication Techniques

Tube sheets hold tubes in place, sealing the shell-side fluid from the tube-side fluid. They act as a barrier and support structure. Materials usually match or exceed tube materials to prevent corrosion. Fabrication involves drilling precise holes for tubes, then expanding or welding tubes into these holes. This creates a tight seal and prevents leaks. Proper alignment during fabrication ensures effective sealing and structural integrity.

Fabricate Heat Exchanger Components: Fins and Baffles

Function of Fins in Heat Transfer Enhancement

Fins increase the surface area exposed to air or fluid, boosting heat transfer efficiency. They are thin metal strips attached to tubes or shells. By extending surface area, fins help dissipate heat faster, especially in air-cooled heat exchangers. Common fin materials include aluminum and copper due to their excellent thermal conductivity. Fabrication involves stamping, rolling, or extrusion processes to form precise fin shapes. Proper fin design balances maximizing surface area and minimizing airflow resistance.

Baffles: Types and Their Fabrication

Baffles direct fluid flow inside the shell, increasing turbulence and improving heat transfer. They also support tubes, preventing vibration and sagging. Common types include:

• Segmental baffles: Most common, they cover part of the shell's cross-section, forcing fluid to zigzag.

• Disc and donut baffles: Circular, used for specific flow patterns.

• Longitudinal baffles: Run parallel to tubes, used for special flow control.

Fabrication involves cutting baffle plates from steel or alloy sheets, then shaping and drilling holes for tubes. Welding or bolting secures baffles inside the shell. Precision is critical to maintain flow paths and avoid pressure drops.

Impact of Fins and Baffles on Heat Exchanger Performance

Fins and baffles significantly enhance performance by improving heat transfer rates and fluid distribution. Fins increase heat exchange surface area, while baffles boost fluid turbulence, preventing hot spots and dead zones. Together, they improve efficiency, reduce fouling, and extend equipment life. However, poor fabrication or design can cause flow blockages, increased pressure drop, or mechanical failures. Thus, quality fabrication and proper material selection are essential.

Gaskets and Seals in Fabricate Heat Exchanger Components

Importance of Gaskets for Leak Prevention

Gaskets play a crucial role in heat exchangers by preventing leaks between joined parts. They fill gaps between flanges and other mating surfaces, ensuring fluids stay contained. Leaks can cause efficiency loss, environmental hazards, and equipment damage. Proper gasket selection and installation help maintain system integrity and safety. They must withstand pressure, temperature, and chemical exposure without degrading.

Common Materials Used for Seals and Gaskets

Materials for gaskets and seals vary depending on heat exchanger type and operating conditions. Common options include:

Choosing the right material depends on fluid type, temperature, pressure, and mechanical stress. Sometimes, composite gaskets combine materials for enhanced performance.

Fabrication Challenges and Best Practices

Fabricating effective gaskets and seals involves several challenges:

• Precision cutting: Gaskets must match flange dimensions exactly to avoid leaks.

• Material handling: Some materials, like graphite, are fragile and require careful processing.

• Surface finish: Mating surfaces must be smooth and clean to ensure proper sealing.

• Compression control: Over- or under-tightening bolts can damage gaskets or cause leaks.

Best practices include:

• Using CNC or laser cutting for accurate gasket shapes.

• Inspecting materials for defects before fabrication.

• Applying proper torque during assembly.

• Regularly testing seals under operating conditions.

Proper fabrication and installation extend gasket life and reduce maintenance needs.

Tip: Always match gasket materials to operating conditions and use precise fabrication methods to prevent costly leaks and downtime.

Fabrication Materials and Methods for Heat Exchanger Components

Common Metals and Alloys Used in Fabrication

Choosing the right metals or alloys is crucial for heat exchanger components. They must handle heat, pressure, and corrosive fluids without failing. Commonly used metals include:

• Carbon Steel: Cost-effective, strong, used in less corrosive environments.

• Stainless Steel: Offers excellent corrosion resistance, ideal for aggressive fluids.

• Copper and Copper Alloys: High thermal conductivity, used in tubes for efficient heat transfer.

• Titanium: Resistant to seawater corrosion, used in marine or chemical plants.

• Nickel Alloys (e.g., Inconel): Withstand high temperatures and corrosive media.

Fabricators select materials based on operating temperature, pressure, fluid chemistry, and budget. Sometimes, different materials combine in one heat exchanger to optimize cost and performance.

Welding and Joining Techniques

Joining parts securely ensures leak-free, durable heat exchangers. Common methods include:

• TIG Welding (Tungsten Inert Gas): Precise, clean welds, ideal for thin tubes and stainless steel.

• MIG Welding (Metal Inert Gas): Faster, used for thicker sections like shells.

• Brazing and Soldering: Used for copper or copper alloy tubes, joining without melting base metals.

• Expansion and Mechanical Joining: Tubes expanded into tube sheets for tight seals without welding.

Proper welding requires skilled operators and strict quality control to avoid defects like cracks or porosity. Post-weld heat treatments may relieve stresses and improve strength.

Corrosion Resistance and Material Selection

Corrosion can cause leaks, failures, and costly downtime. Fabricators must consider:

• Fluid Composition: Acidic, alkaline, or saline fluids demand corrosion-resistant alloys.

• Operating Temperature: Higher temperatures accelerate corrosion, requiring special alloys.

• Environmental Factors: External conditions like humidity or salt spray affect shell materials.

To combat corrosion, fabricators may apply coatings, use corrosion inhibitors, or select inherently resistant materials like stainless steel or titanium. Regular inspection and maintenance also help detect early corrosion.

Quality Control and Testing in Fabricate Heat Exchanger Components

Inspection Methods for Fabricated Components

These methods help identify fabrication problems before installation, reducing the risk of leaks, equipment damage, and operational failure.

Pressure Testing and Leak Detection

Pressure testing confirms the heat exchanger can hold operating pressures without leaking. Two common methods:

• Hydrostatic Testing: The exchanger is filled with water and pressurized above normal operating levels. It’s safe and effective for detecting leaks or structural weaknesses.

• Pneumatic Testing: Uses air or inert gas pressurized inside the exchanger. It’s more sensitive but riskier due to gas compressibility.

Leak detection often pairs with pressure tests. Techniques include soap bubble tests, ultrasonic leak detectors, or helium mass spectrometry for very small leaks. Ensuring no leaks maintains system efficiency and prevents fluid contamination or hazards.

Standards and Compliance in Fabrication

Fabrication must follow industry standards to guarantee safety, reliability, and performance. Common standards include:

• ASME Boiler and Pressure Vessel Code (BPVC): Covers design, fabrication, inspection, and testing of pressure vessels and heat exchangers.

• TEMA (Tubular Exchanger Manufacturers Association) Standards: Provide guidelines for design, fabrication, and inspection specific to shell and tube heat exchangers.

• API (American Petroleum Institute) Standards: Apply to heat exchangers in oil and gas industries.

• ISO Standards: Cover quality management and environmental aspects in manufacturing.

Compliance ensures components meet legal and customer requirements. It also facilitates certification, easing market acceptance and reducing liability.

Tip: Implement a thorough inspection and pressure testing program following recognized standards to ensure reliable, leak-free heat exchanger components.

Maintenance and Replacement of Fabricate Heat Exchanger Components

Signs of Wear and Failure in Components

Heat exchanger components experience wear and tear from constant heat, pressure, and fluid flow. Common signs of wear include:

• Corrosion: Rust or pitting on tubes, shell, or tube sheets indicates material degradation.

• Leaks: Fluid escaping from joints, gaskets, or tubes signals seal failure or cracks.

• Scaling and Fouling: Deposits on tube surfaces reduce heat transfer efficiency.

• Cracks or Deformation: Visible cracks, dents, or warping from thermal stress or mechanical impact.

• Vibration Damage: Loosened or broken tubes and baffles due to flow-induced vibrations.

• Reduced Performance: Increased pressure drop or lower heat transfer rates suggest internal blockages or damaged components.

Regular inspections help spot these issues early, preventing costly downtime or catastrophic failure.

Procedures for Component Replacement

Replacing worn or damaged parts requires careful planning and execution:

1. Shutdown and Cooldown: Safely stop the system and allow components to cool.

2. Drain Fluids: Remove fluids from the heat exchanger to prevent spills or hazards.

3. Disassemble Components: Remove covers, flanges, or bolts to access parts needing replacement.

4. Inspect and Document: Check removed parts for damage extent and document findings.

5. Fabricate or Source Replacements: Use quality fabrication methods to produce new tubes, gaskets, or other parts matching original specs.

6. Install New Components: Fit replacements carefully, ensuring proper alignment and sealing.

7. Reassemble and Test: Reattach all parts, then perform pressure and leak tests before restarting.

8. Record Maintenance: Keep detailed records of replacements for future reference.

Following manufacturer guidelines and industry standards during replacement ensures safety and performance.

Extending Lifespan Through Proper Fabrication and Maintenance

Good fabrication practices combined with proactive maintenance extend heat exchanger life:

• Use High-Quality Materials: Choose corrosion-resistant alloys and durable seals.

• Precision Fabrication: Ensure tight tolerances and defect-free welds to prevent leaks.

• Routine Cleaning: Remove fouling or scaling regularly to maintain heat transfer efficiency.

• Monitor Operating Conditions: Avoid exceeding pressure, temperature, or flow limits.

• Scheduled Inspections: Detect early signs of wear or damage.

• Timely Repairs: Address small issues before they escalate.

• Proper Storage and Handling: Protect spare parts from damage or corrosion before use.

These steps reduce downtime, improve reliability, and lower overall maintenance costs.

Conclusion

Fabricate heat exchanger components like tubes, shells, and baffles play a vital role in efficient heat transfer. Precision in fabrication ensures durability and leak prevention. Quality materials and skilled welding improve performance and resistance to corrosion. Future trends focus on advanced materials and innovative designs to boost efficiency. Huashang Steel provides expertly fabricated components that enhance heat exchanger reliability and lifespan, delivering exceptional value through quality and innovation. Trust Huashang Steel for superior heat exchanger solutions.

FAQ

Q: What does it mean to fabricate heat exchanger components?

A: To fabricate heat exchanger components means to manufacture parts like tubes, shells, and baffles using precise cutting, welding, and forming techniques to ensure durability and efficiency.

Q: How do you fabricate heat exchanger components to enhance performance?

A: Fabricating heat exchanger components with quality materials and precise methods improves heat transfer, prevents leaks, and ensures long-lasting operation.

Q: Why is it important to fabricate heat exchanger components with corrosion-resistant materials?

A: Using corrosion-resistant materials during fabrication protects components from damage, extending the heat exchanger’s lifespan and reducing maintenance costs.

Q: What are common challenges when fabricating heat exchanger components?

A: Challenges include achieving leak-proof welds, precise tube alignment, and selecting suitable gasket materials to prevent leaks and ensure structural integrity.

Q: How does fabricating heat exchanger components affect maintenance costs?

A: Proper fabrication reduces wear and leaks, minimizing downtime and costly repairs, thus lowering overall maintenance expenses.
