Ever wondered how heat exchangers keep industries running smoothly? Fabricate Heat Exchanger Components are vital for this. Quality fabrication ensures efficiency and safety. In this post, you’ll learn about key components, fabrication importance, and how it impacts performance.
Designing heat exchanger components starts by gathering detailed process information and specifications. This includes flow rates, temperatures, pressures, fluid properties, and fouling factors. Often, customers provide datasheets following industry standards like TEMA, API 660, or API 661. These datasheets set the foundation for the design, ensuring components meet the exact needs of the process.
Next, thermal design comes into play. Engineers use specialized software tools such as HTRI or Aspen Plus to calculate heat transfer requirements and optimize performance. They analyze factors like heat duty, temperature differences, flow velocities, and pressure drops. These calculations help select the right heat exchanger type and size, balancing efficiency with cost.
Mechanical design follows thermal sizing. Using CAD software like AutoCAD or SolidWorks and design tools such as Compress or Nozzle-Pro, engineers create detailed component layouts. They specify dimensions, materials, tube layouts, baffle placements, and flange details. This stage also produces a bill of materials (BOM), listing all parts and materials needed for fabrication.
Before fabrication begins, design approval is critical. Detailed drawings and calculations are submitted to clients or internal review teams for validation. This step ensures all specifications comply with industry codes, customer requirements, and safety standards. Approved drawings then become the official guide for manufacturing.
Collecting process data: Flow rates, temperatures, pressures, fluid properties.
Thermal design: Heat transfer calculations, software simulations, optimizing heat exchanger type and size.
Mechanical design: Creating detailed drawings, material selection, generating BOM.
Design approval: Client reviews, code compliance checks, finalizing drawings for fabrication.
This structured approach ensures heat exchanger components are designed precisely for their intended application, improving reliability and performance.
Tip: Use integrated thermal and mechanical design software early in the process to catch potential issues and reduce costly redesigns later.
Choosing the right materials for heat exchanger components is crucial. It impacts durability, efficiency, and safety. Several factors influence material selection, including corrosion resistance, temperature, and pressure conditions.
Corrosion is a primary concern. The material must resist the fluids it contacts. For example, acidic or salty fluids require corrosion-resistant alloys. Temperature also matters. High temperatures demand materials that maintain strength and resist oxidation. Pressure affects thickness and strength requirements. Higher pressures need stronger materials to prevent failure.
Material | Main Advantages | Typical Applications |
|---|---|---|
Carbon steel | Strong, affordable, and easy to fabricate | Moderate temperatures and non-corrosive fluids |
Stainless steel | Excellent corrosion resistance and easy cleaning | Chemical processing, food, pharmaceutical, and sanitary systems |
Copper alloys | High thermal conductivity and good corrosion resistance | HVAC, refrigeration, and marine systems |
Inconel | Resists extreme temperatures, oxidation, and corrosion | High-temperature and aggressive chemical environments |
Selecting materials means matching them to the process conditions. For example, stainless steel works well in chemical plants handling corrosive fluids. Carbon steel is common in oil and gas where fluids are less aggressive. Copper alloys suit heat exchangers in HVAC systems. Inconel fits high-temperature petrochemical processes.
Proper material choice extends heat exchanger life by reducing corrosion and wear. It also improves heat transfer efficiency. For instance, copper alloys’ high thermal conductivity enhances heat exchange but may cost more. Using unsuitable materials can cause leaks, failures, or frequent maintenance, increasing costs.
Tip: Evaluate process fluid properties and operating conditions early to select materials that balance cost, durability, and performance for your heat exchanger components.
Precise machining and forming help each heat exchanger component fit correctly, withstand pressure, and prevent leakage.
Component | Process | Purpose |
|---|---|---|

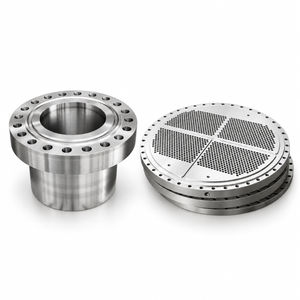

Tubesheets | Facing, drilling, boring, countersinking, and finishing | Creates accurate tube holes and smooth sealing surfaces |
Baffles | Plate cutting and hole drilling | Supports tubes and directs fluid flow |
Flanges | Facing, shaping, and bolt-hole drilling | Produces accurate connections and sealing surfaces |
Shells and channels | Plate rolling and seam welding | Forms cylindrical pressure-containing sections |
Small shells | Pipe cutting and modification | Provides an efficient option for smaller diameters |
Straight tubes | Cutting and end preparation | Creates the required length and joining surfaces |
U-tubes | Mandrel or rotary-draw bending | Forms smooth bends while limiting wrinkles and deformation |
Accurate dimensions are essential during fabrication. Manufacturers must control hole diameter, flatness, concentricity, alignment, and surface finish.
Quality Issue | Possible Result |
|---|---|
Misaligned tube holes | Difficult assembly or tube damage |
Uneven sealing surfaces | Leakage at joints |
Incorrect shell dimensions | Poor fit of internal components |
Distorted tube bends | Restricted flow or stress concentration |
Weak or defective welds | Reduced strength and pressure resistance |
CNC machines, fixtures, jigs, and gauges help maintain accuracy. Dimensional inspections and surface-finish checks confirm that components meet the required specifications.
Welding joins critical heat exchanger components, including shells, tubesheets, nozzles, and flanges. Reliable welds maintain structural strength and prevent leakage under operating pressure and temperature.
GTAW, also known as TIG welding, provides clean and precise joints for thin sections and stainless steel parts. SMAW is commonly used for thicker carbon steel components and field repairs. SAW supports efficient welding of long shell and channel seams with deep penetration and high deposition rates.
When ASME requirements apply, welding procedures and personnel must comply with the relevant BPVC sections. Section IX covers procedure and welder qualifications, while Section VIII addresses pressure-vessel construction requirements. Compliance supports safety, traceability, and regulatory acceptance.
Weld quality is verified through appropriate non-destructive testing. Radiographic and ultrasonic testing can reveal internal discontinuities, while penetrant testing detects surface-breaking defects. The required method and acceptance criteria depend on the material, joint design, code, and customer specifications.
Fabrication records should include welding procedure specifications, qualification records, inspection reports, and repair logs. Combining qualified personnel, approved procedures, controlled welding conditions, and documented inspections helps produce durable, leak-tight heat exchanger components.
Assembly is a crucial phase in fabricating heat exchanger components. It brings together all machined, formed, and welded parts into a complete unit ready for testing and installation. Proper assembly ensures the heat exchanger performs efficiently and reliably under operating conditions.
The bundle forms the core of the heat exchanger. It consists of tubes arranged within tubesheets, supported by baffles, and protected by impingement plates.
Tubes are inserted into the drilled holes of the tubesheets. They must be properly expanded or welded to secure a tight fit, preventing leaks.
Baffles are installed between tubesheets to support tubes and direct fluid flow. Correct spacing and orientation of baffles optimize heat transfer and reduce vibration.
Tubesheets hold the tubes in place and seal the fluid sides. They must be clean and free of debris before assembly.
Impingement plates protect tubes near the shell inlet nozzle from high-velocity fluid impact, preventing erosion.
During bundle assembly, careful handling avoids tube damage or deformation. Alignment checks confirm tubes and baffles fit precisely, avoiding stresses.
After bundle assembly, other components are fitted and welded onto the shell and channel cylinders.

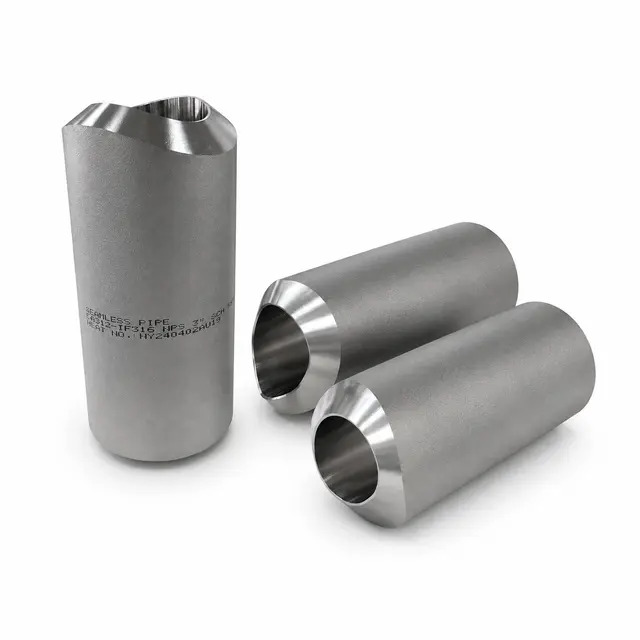

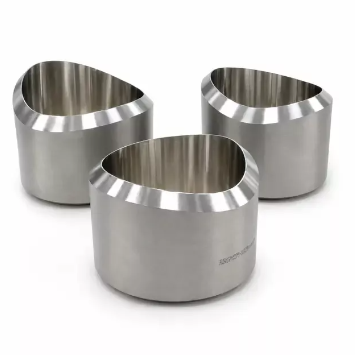

Nozzles provide fluid entry and exit points. They are carefully positioned and welded to maintain pressure integrity.
Saddles support the heat exchanger on foundations. They are aligned and welded to the shell, ensuring stable support.
Attachments like lifting lugs, pass plates, and reinforcement pads are also welded on. These must meet design specifications and welding standards.
Welding in this stage follows approved procedures to maintain strength and leak-tightness. Fit-up inspections verify correct positioning before welding.
The final assembly step involves placing the completed bundle into the shell.
The bundle is carefully inserted to avoid damage to tubes or baffles.
Alignment is checked to ensure proper seating.
Shell and channel flanges are bolted together using specified gasket materials and bolting torques to create a tight seal.
Seal strips or gaskets are installed to prevent leaks at flange joints.
Proper flange bolting ensures uniform pressure distribution and prevents flange warping. Torque patterns and values follow manufacturer or industry standards.
Alignment during assembly is vital. Misalignment can cause:
Tube damage or stress, leading to leaks or failure
Difficulty in sealing flange joints
Increased vibration and reduced heat exchanger life
Sealing ensures fluid containment under pressure and temperature. Using correct gaskets, sealants, and bolting methods prevents leaks.
Regular inspections during assembly catch misalignments or poor seals early, reducing costly rework.
Testing begins with visual inspection of welds, machined surfaces, and assembled parts. Inspectors check for cracks, corrosion, misalignment, and surface damage. Non-destructive testing methods, including radiographic, penetrant, and ultrasonic testing, help identify surface or internal defects without damaging components.
Hydrostatic testing verifies mechanical strength and leak tightness. The exchanger is filled with water and pressurized according to the applicable design code. Inspectors monitor the system for leaks, pressure loss, or deformation during the specified holding period.
Quality control continues throughout fabrication. Teams verify material certificates, machining tolerances, weld procedures, dimensional accuracy, assembly alignment, and test results. Inspection records document applicable standards, non-conformances, corrective actions, and component traceability.
After testing, internal cavities are drained and dried to prevent corrosion. Protective coatings, sealed packaging, crates, or nitrogen purging may be used when required. Clear labels provide handling instructions and confirm inspection status before shipping or storage.
Installing and commissioning heat exchanger components is the final step in bringing the equipment into operation. It requires careful planning, precise execution, and thorough testing to ensure the heat exchanger performs safely and efficiently.
Before installation, the site must be prepared. This includes verifying the foundation or support structure is level, strong, and ready to bear the heat exchanger's weight. Adequate space around the unit is essential for rigging, assembly, and future maintenance.
Rigging involves lifting and moving the heavy heat exchanger components using cranes, hoists, or forklifts. Proper rigging equipment and techniques prevent damage to delicate parts like tubes and flanges. It’s critical to follow safety protocols and coordinate with site personnel to avoid accidents.
Once positioned, the heat exchanger must be aligned and leveled precisely. Misalignment can cause stress on tubes and joints, leading to leaks or premature failure. Using laser alignment tools or spirit levels helps achieve accurate positioning.
Piping connections are then made to the inlet and outlet nozzles. These must fit tightly without forcing or bending the heat exchanger. Proper gasket selection and flange bolting sequences ensure leak-free joints. Pipe supports should be installed to avoid undue loads on the exchanger nozzles.
Instrumentation like temperature sensors, pressure gauges, and flow meters are installed during commissioning. These devices monitor the heat exchanger’s performance and provide data for control systems.
Control system integration involves connecting sensors to the plant’s distributed control system (DCS) or programmable logic controllers (PLCs). This allows automated monitoring, alarms, and adjustment of operating parameters to optimize efficiency and safety.
Start-up follows a planned sequence to gradually bring the heat exchanger into operation. Initial checks include verifying all connections, valve positions, and instrumentation functionality.
Performance testing measures parameters such as temperature differences, flow rates, and pressure drops. These values are compared against design specifications to confirm proper operation. Any deviations may indicate issues like fouling, leaks, or flow imbalances.
If tests reveal problems, adjustments are made. This may include tweaking flow rates, re-tightening flanges, or recalibrating instruments. Fine-tuning ensures the heat exchanger operates at peak efficiency.
Finally, comprehensive handover documentation is prepared. This includes as-built drawings, test reports, operating manuals, and maintenance schedules. Providing this information supports safe operation and future troubleshooting.
Fabricating heat exchanger components involves careful design, precise machining, welding, and thorough testing. Quality and precision in every step ensure reliable, leak-free performance. Proper material selection and assembly impact efficiency and extend lifespan. Following standards and detailed inspections prevents failures and costly repairs. For successful projects, integrate design, fabrication, and quality control from start to finish. Huashang Steel offers expertly crafted heat exchanger components, providing durability and optimized performance for diverse industrial needs.
A: To fabricate heat exchanger components means to design, machine, form, weld, and assemble parts like tubesheets, tubes, baffles, shells, and flanges to create a functional heat exchanger.
A: Fabricate heat exchanger components by following detailed design specs, selecting suitable materials, using precision machining, applying proper welding techniques, and conducting thorough testing.
A: Material choice affects durability, corrosion resistance, and heat transfer efficiency, ensuring fabricated heat exchanger components perform reliably under specific temperature and pressure conditions.
A: GTAW, SMAW, and SAW are common welding methods used to fabricate heat exchanger components, each suited for different materials and thicknesses.
A: Inspect welds, flange seals, and tube expansions carefully; use non-destructive testing methods and ensure proper assembly alignment to prevent leaks in fabricated heat exchanger components.
